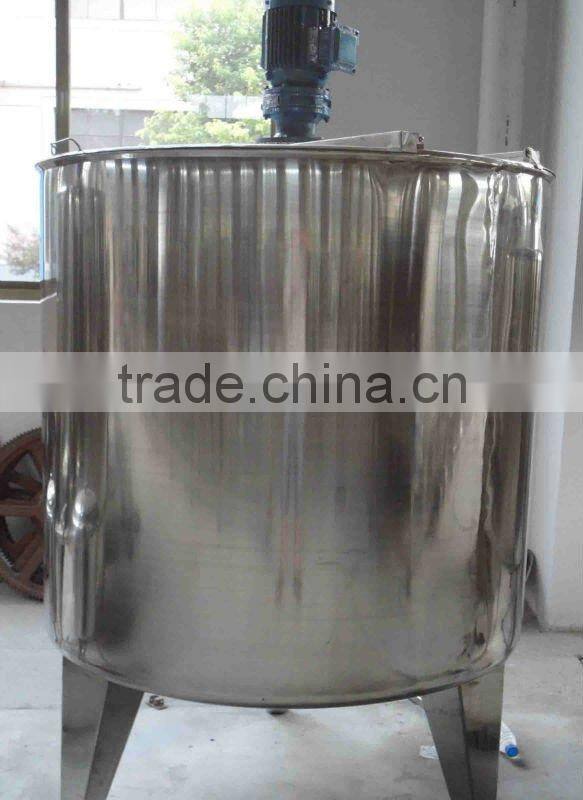

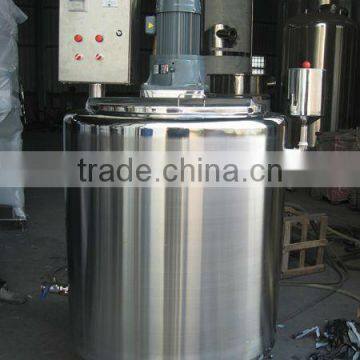

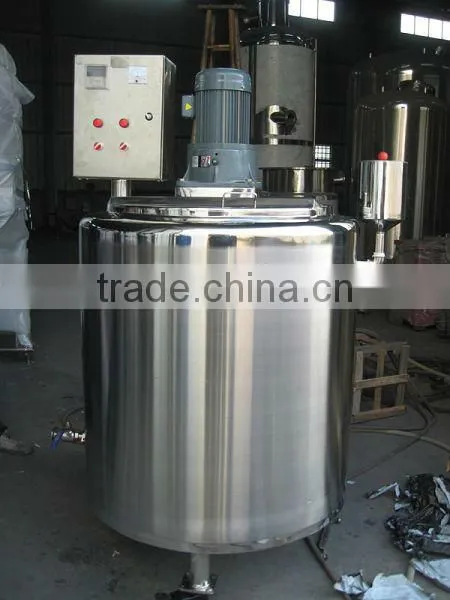

Beverage Mixing Tank

Beverage Mixing Tank photo-1
US$ 1,800 - 2,600 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Screw
Product Type:
Perfume
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Screw
Product Type Perfume
Application Viscous Fluid
Additional Capabilities Coating
Place of Origin Jiangsu, China
Brand Name Mars
Model Number LB-1000
Max. Loading Capacity 500 liters
Voltage 220v
Power(W) 0.37kw
Dimension(L*W*H) 980x1050
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Mixing tank



Detailed Product Description:

1.Material:SUS304 /316L
2.Accordance GMP standard
3.different volume for choose
4,CE certificate


              Beverage Mixing Tank



Description of beverage mixing tank

1.Application: food&beverage processiing

2.Material:SUS 304 or 316L

3.Volume:300L-15,000L



4.Pressure:normal pressur

5.Interior surface:Mirror or customers' requirements,

   Exterior surface: Mat, Mirror or Mat vertical  shell,mirror heads

6.Structure:Elliptical heads,Upper elliptical and down conical heads ,Conical heads



Main Parameter for Beverage Mixing Tank

Model effective volume (L) ID(mm) Total height (H) Insulation PU(δ) jacket thick(δ) in/outlet
LB-500 500 800 2140 50 1.5 φ38 /φ51
LB-1000 1000 1050 2380 50 1.5 φ38 /φ51
LB-1500 1500 1180 2550 50 1.5 φ38 /φ51
LB-2000 2000 1340 2760 50 1.5 φ38 /φ51
LB-2500 2500 1420 2940 50 1.5 φ38 /φ51
LB-3000 3000 1540 3050 50 1.5 φ38 /φ51
LB-4000 4000 1650 3200 50 1.5 φ38 /φ51
TP-5 5000 1780 3250 50 1.5 φ38 /φ51
TP-6 6000 1900 3350 50 1.5 φ38 /φ51
TP-8 8000 2100 3800 60 1.5 φ65 /φ51
TP-10 10000 2300 4050 60 1.5 φ65 /φ51
TP-12 12000 2520 4450 60 1.5 φ65 /φ51
TP-15 15000 2540 4700 60 1.5 φ65 /φ51

Beverage Mixing TankBeverage Mixing TankBeverage Mixing TankBeverage Mixing TankBeverage Mixing TankBeverage Mixing Tank
