Home > Products > Beverage Pretreatment System > Stainless Steel Mixing Tank
Stainless Steel Mixing Tank
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Mixer Type | Static Mixers | |
| Product Type | Other, Beverage | Application | Liquid | |
| Additional Capabilities | Milling | Place of Origin | Jiangsu, China | |
| Brand Name | Mars | Model Number | LB-2000 | |
| Max. Loading Capacity | 100-8000L | Voltage | 220V | |
| Power(W) | 3kw | Dimension(L*W*H) | Customize | |
| Certification | ISO CE | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

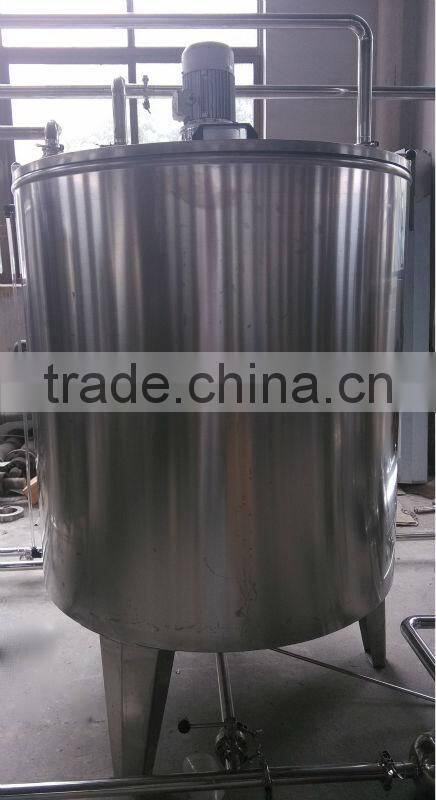

Stainless Steel Mixing Tank
Application
Stainless steel mixing tank is mainly used in the heating, heat preservation, sterilization, cooling, aging and storage of liquid material, during the industries of dairy products,ice cream, pharmacy, chemical industry, cosmetic, and so on.
Features for Stainless Steel Mixing Tank

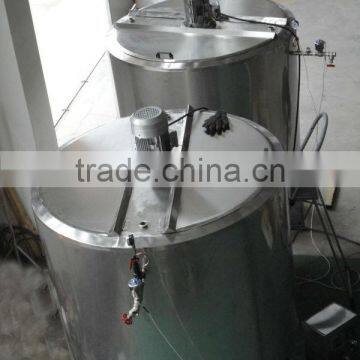

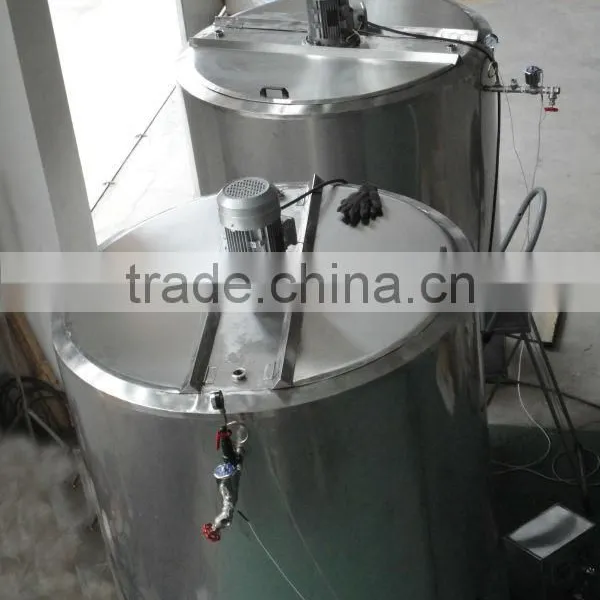

The series of Mixing tanks are made of stainless steel (SUS304 or SUS316L). All joints and inside is mirror finished without any dead angle and cleaned easily. It consists of inner vessel, jacket and insulation with the configurations of agitator, CIP hole, Manhole, sight glass, thermometer etc.
Material: SUS304 or SUS316L
Single or jacket ( with isolation)
Agitator: Chinese or Europen SEW
Paddle: Scrape type or frame type, angle type
Configuration option for Stainless Steel Mixing Tank:
1. Manhole
2. Cleaning ball
3. Air vent
4. Adjustable legs
5. Thermometer PT100 type
6. Ladder
Technology parameter for Stainless Steel Mixing Tank
Model and specification | Concentrated Mixing tank | Sanitary pump | Titanium filter | Dilute mixing tank | Micro-pore filter | Ultimate filter | Pipe |
Type1 | 100L | 1T/h | 1core | 200L | 1core | 1core | φ25 |
Type2 | 500L | 3T/h | 3core | 1000L | 3core | 3core | φ25 |
Type3 | 1000L | 3T/h | 5core | 2000L | 5core | 5core | φ25 |
Type4 | 1500L | 5T/h | 7core | 200L | 7core | 7core | φ25 |
Type5 | 2000L | 10T/h | 9core | 200L | 9core | 9core | φ25 |
Type6 | 2500L | 10T/h | 10core | 200L | 10core
| 10core
| φ25 |
