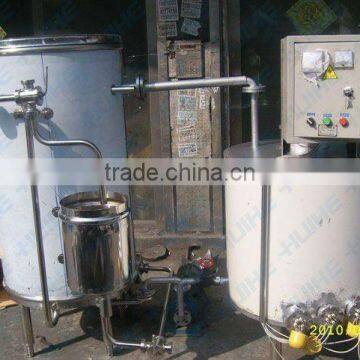

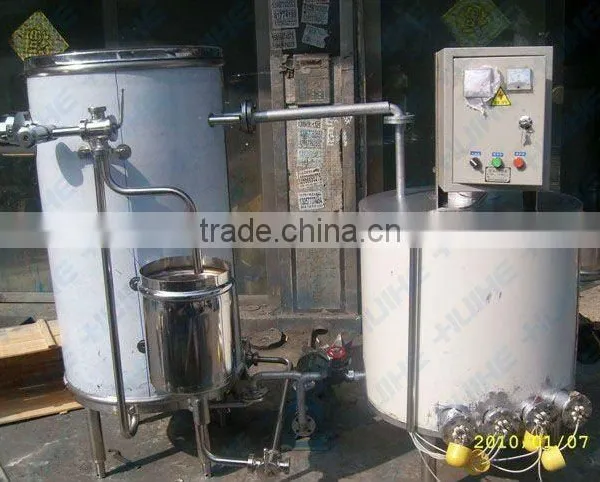

Milk UHT Sterilizer / Milk Pasteurizer

Milk UHT Sterilizer / Milk Pasteurizer thumbnail-1
Milk UHT Sterilizer / Milk Pasteurizer photo-1
US$ 1,250 - 4,650 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
HH
Contact Supplier Request Quote Chat Now
Hangzhou Huihe Machine Facture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name HH
Model Number 1500-2000L
Usage Diary Product
Type Ultra High Temperature
Voltage 380V/220V
Power(W) 20KW
Weight 300kg
Dimension(L*W*H) 1500*900*1900mm
Certification CE ISO
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Pipe coil type ultra high   temperature    machine adopts the present most advance welding technology, selects the

 import high quality .

Pipe coil type ultra-high temperature machine adopts pipe construction, high efficiency, energy saving,

and simple operation.

Because of short heating time, and little lost in nutrition, so it is widely used in sterilizing the liquid such as fresh milk, soybean milk, juice, soy sauce, wine and ice cream.



Advantages

1. Continuous production makes short sterilization time;

2. Due to short heating time, quality products available;

3. Ultra high temperature makes ideal sterilization effect;

4. Linked with centrifugal pump and high-pressure homogenizer, application range is wide, and is suitable for high viscosity materials sterilization.

5. The heat exchanger in design can utilize waste heat, so that the steam consumption is small.

Technical parameter

Model

RP6L10

RP6L20

RP6L40

RP6L60

Processing power

0.5-1T/H

1.5-2T/H

3-4T/H

5-6T/H

Sterilization temperature

115-135°C

115-135°C

115-135°C

115-135°C

Steam pressure

Lower than 0.4MPa

Lower than 0.4MPa

Lower than 0.7MPa

Lower than 0.78MPa

High temperature heating time

4-6S

4-6S

4-6S

4-6S

Discharge temperature

Lower than 65°C

Lower than 65°C

Lower than 65°C

Lower than 65°C

Motor power

2.2KW

2.2KW

4KW

5.5KW

Body size

920*920*1400

1100*1100*1700

1200*1200*1800

1400*1400*2000

Weight

280KG

380KG

550KG

700KG

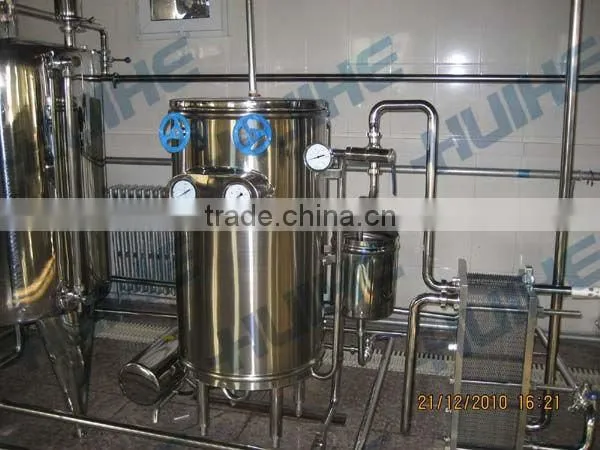

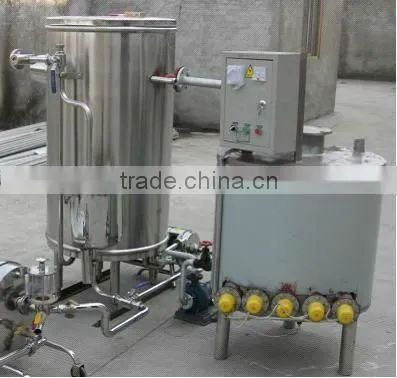

milk UHT sterilizer / milk pasteurizer



milk UHT sterilizer / milk pasteurizer
