Jacketed Agitated Reactor

Jacketed Agitated Reactor photo-1
US$ 2,000 - 80,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Type:
Reaction Kettle
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Automatic
Type Reaction Kettle
Place of Origin Zhejiang, China
Brand Name HH
Model Number Jacketed Agitated Reactor
Voltage made to order
Power(W) made to order
Dimension(L*W*H) made to order
Weight made to order
Certification CE
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas
 Product Description
Jacketed Agitated Reactor 's Suitable Material

1. Widely used in medicine, building materials, chemicals, paint, resin, food, scientific research and other units

2. Complete the sulfide, nitration, hydrogenation, alkylation, polymerization and condensation process.

3. Good effect for physical change like heating, cooling, and liquid extraction and gas absorption process ,etc.

4. Good effect for Flammable, explosive, toxic medium chemical reaction


Jacketed Agitated Reactor
Jacketed Agitated Reactor ’s Characteristics

1.The pot body and parts in contact with the materials adopt OCr18Ni9 or 1 cr18ni9ti stainless acid-resistant steel plate;


2. Low investment, fast production and high efficiency;


3. Quick heating, high temperature resistant, corrosion resistance, health, pollution-free;


4. Heat transfer effect is better than the enamel reaction kettle, fast heating and cooling.

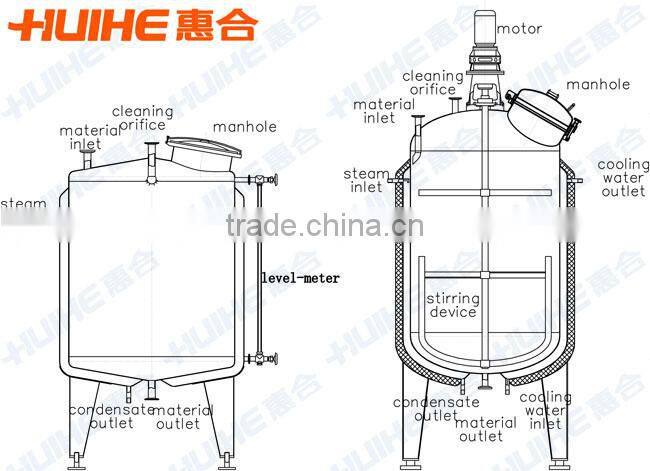

  Jacketed Agitated Reactor 's Material and Structure
The Jacketed Agitated Reactor material from Hangzhou Huihe Machine Facture Co., Ltd usually is SUS304 or SUS316L if the customer has no special requirements.


Jacketed Agitated Reactor

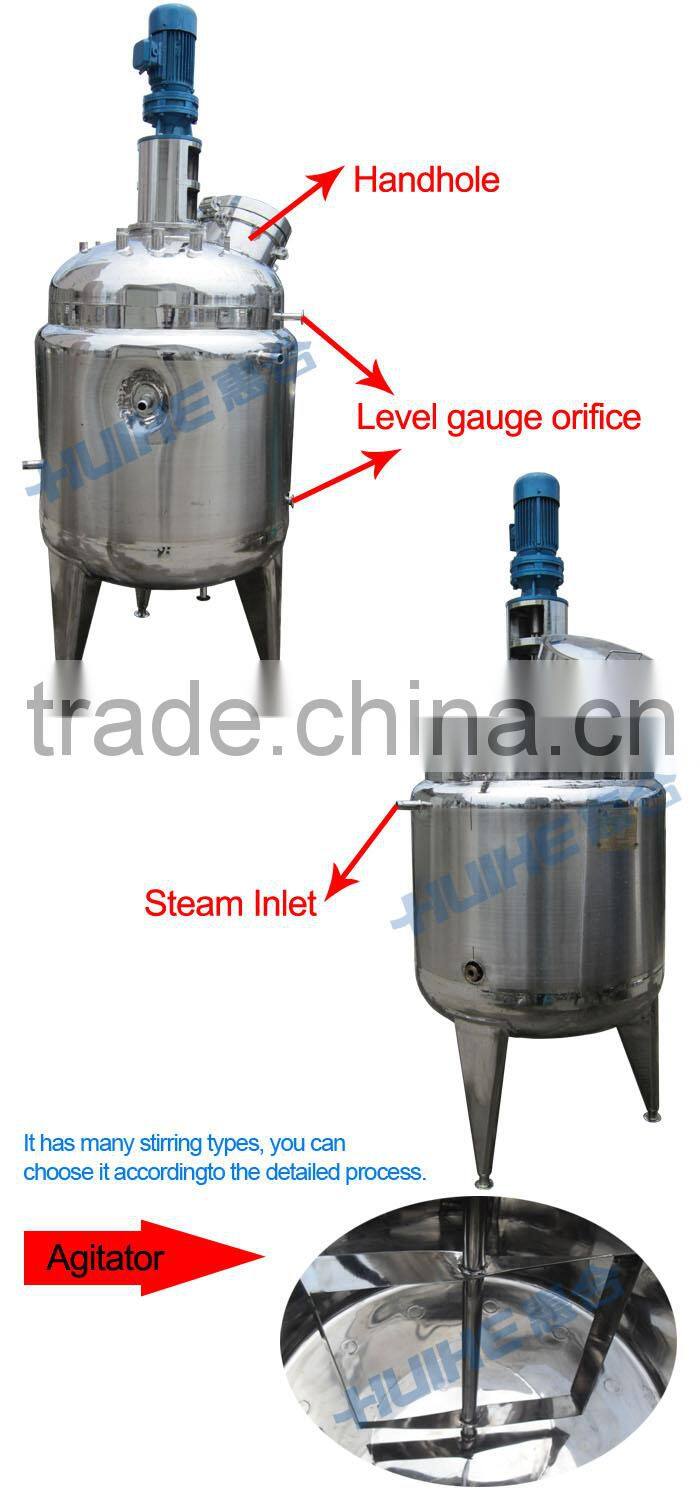

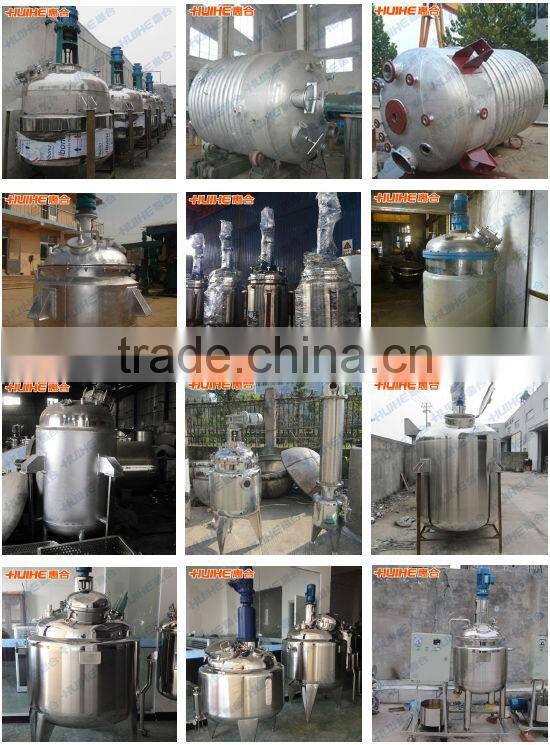

Jacketed Agitated Reactor ’s Detailed Picture



Jacketed Agitated Reactor

Jacketed Agitated Reactor ' s Technical Parameter

Volume (L)Electric powerInner pot diameter(mm)Jacketed diameter(mm)Reducer ModelMotor n/KWStirring speed r.p.m
504×2 KWφ400φ600BLD 0.8-11450/0.860-100
1006×2 KWφ500φ700BLD 1.1-11450/1.160-100
3006×3 KWφ800φ1000BLD 2.2-21450/2.260-100
5009×3 KWφ900φ1100BLD 3-21450/360-100
100012×4 KWφ1200φ1400BLD 4-31450/460-100
200015×5 KWφ1400φ1600BLD 4-31450/460-100
300015×6 KWφ1600φ1800BLD 5.5-31450/5.560-100

 Our Services
Why Choosing Our Jacketed Agitated Reactor

1. Huihe machine have sales department, engineering department, after sales department, we are all service for you;

2. We are not competing for the price but the high quality and friendly service we competition

3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;

4. The after sales colleague will service for you from place an order to the actual production;

5. 9 years of industry experience, industry leader;

6. Factory, office site visit.

Jacketed Agitated Reactor

 Packaging & Shipping
Jacketed Agitated Reactor ’s Packing Before Delivery
 Company Information
Authentication certificate and strength show

Hangzhou Huihe Machine Facture committed to design and manufacture all kinds of stainless steel container.



We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc .



The equipments conform to the sanitary standards, thus effectively guarantee people's health.


Jacketed Agitated Reactor

Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole production line, for example milk production line, juice production line ,tea production line ,etc.

Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.

Jacketed Agitated Reactor

Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
