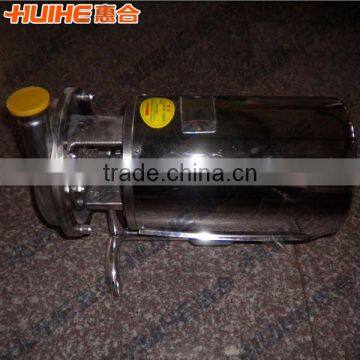

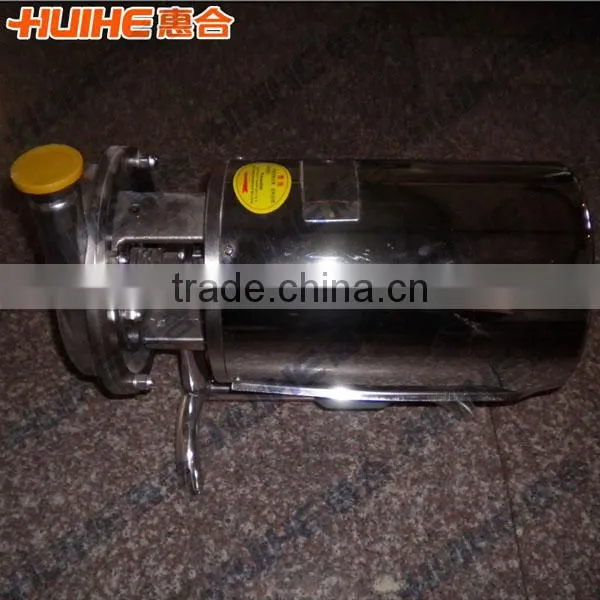

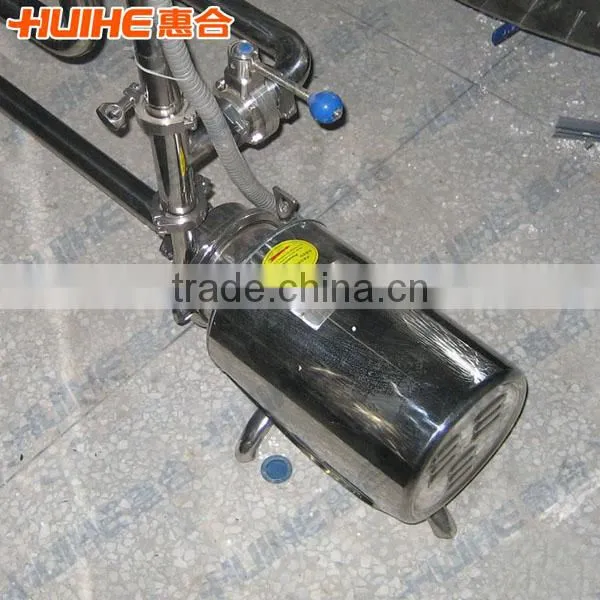

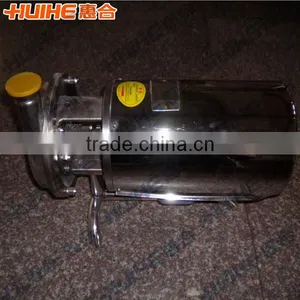

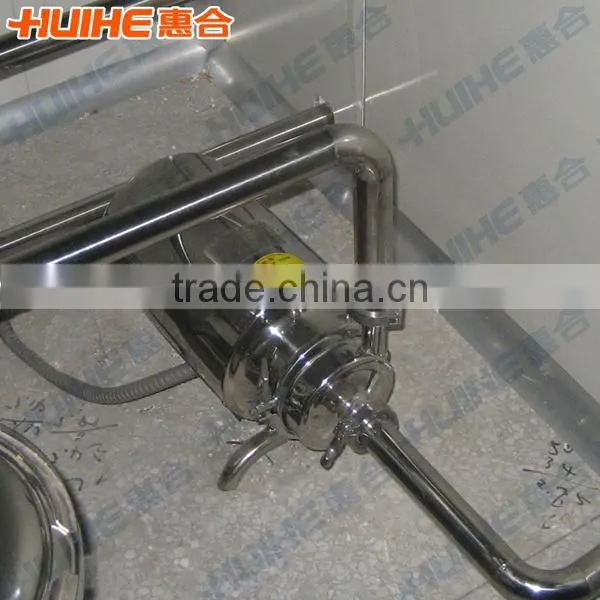

Stainless Steel Sanitary Centrifugal Pump
US$ 650 - 6,120
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
HH
Model Number:
HHRP-1
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sanitary High Pressure PumpUS$ 100 - 1,000MOQ: 1 Set -
High Quality Stainless Steel Lquid PumpUS$ 100 - 1,200MOQ: 1 Set
-
Sanitary Impeller Type Sanitary PumpUS$ 100 - 1,000MOQ: 1 Set
-
Good Quality Stainless Steel Beverage and Water PumpUS$ 650 - 6,150MOQ: 1 Piece
-
RP-type Stainless Steel Centrifugal Chemical PumpUS$ 560 - 5,600MOQ: 1 Unit
Place of Origin
Zhejiang, China
Brand Name
HH
Model Number
HHRP-1
Theory
Centrifugal Pump
Structure
Screw Pump
Usage
Water
Power
Hydraulic
Standard or Nonstandard
Standard
Fuel
Gasoline
Pressure
High Pressure
Application
Other, deliver material
Stainless steel centrifugal pump can divide into single stage, single suction and enclosed stainless steel centrifugal pump. It owns a lot of characteristics such as compact structure, good appearance and so on. Then, because of its insurance to health requirement, this machine is widely used in delivery of food, wine, pharmaceutical, chemical industry and other liquid material.
Classification of Sanitary Centrifugal Pump
1. according to structure, it can be divided into three-foot pump and four-foot pump
2. according to material, there are SUS304 and SUS316L
3. according to motor species, it can be divided into ordinary motor, ABB motor and explosion-proof motor.
Usages of Sanitary Centrifugal Pump
This product is widely used in the food and beverage, dairy products, medical, beer brewing, water supply, pharmaceutical, cosmetic, biological engineering, medicine and fine chemical industry project, is the ideal accessories of construction.
Characteristics of Sanitary Centrifugal Pump
1, all parts of this pump use 1 cr18Ni9Ti stainless steel for production. The pump body and the motor unit whole one, with stainless steel cover. Have the advantages of simple structure, beautiful shape, light volume, corrosion resistance, easy operation, no need installed base and convenient for handy carry.
2, when installing, it can regulate the discharge direction for any angle according to different needs.
3, the pump uses rigid structure and excessive thick wall design. All the parts such as pump body, pump cover and impeller that contacts with the material are made by SUS316L or SUS304 stainless steel. Mechanical shaft adopts high quality graphite, carbide silicon or hard alloy steel to produce. Greatly improving the wear resistance and prolong the using life.
4, it is easy to maintenance (open impeller type), between components are strong interchangeability. The pump needs a few accessories, there is a kind of size meet DIN 24960 LIK seal mechanical, can be used for all kind of pumps.
5, the whole pump can be cleaned without collapse. If necessary, installing a large hoop can easy to remove the pump without any instruments.
Technical Parameters of Sanitary Centrifugal Pump
Model |
Flow
(m3/h)
|
Motor power
(Kw)
|
Caliber of input and output
(mm)
|
Height of extrusive liquid
(m)
|
RP-1 |
1 |
0.37 |
32/25 |
9 |
RP -3 |
3 |
0.75 |
38/32 |
18 |
RP -5 |
5 |
1.5 |
38/38 |
24 |
RP -10 |
10 |
2.2 |
51/38 |
24 |
RP -15 |
15 |
3 |
51/51 |
32 |
RP -20 |
20 |
4 |
51/51 |
36 |
RP -30 |
30 |
5.5 |
51/51 |
36 |
RP -40 |
40 |
7.5 |
63/51 |
36 |
