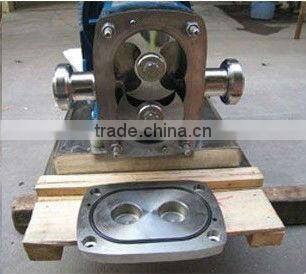

Sanitary Cam Rotor Pump/Lobe Pump

Cam Rotor Pump Operation Principle

Rotor pump is also named rotary lobe pump,threelobe pump,sole pump,etc. When the two simultaneous reverse rotating rotors(with 2-4 gears) revolve, it produces suction force at the inlet(vacuum), which intakes the material delivered. The 2 rotors divide the rotor housing into many smaller parts and revolve in the sequence of A--B--C--D. When it revolves to position A,only housing I is filled with medium .When it revolves to position B, housing B encloses part of the medium; when it goes to position chousing A encloses medium, and finally it goes to position D, then housing A ,B and II are interlinked and the medium is transported to the outlet. As this process is repeated, medium material is transported continuously.

Pump:

Water pump,submersible pump,air pump,vacuum pump,gear pump,screw pump,etc
