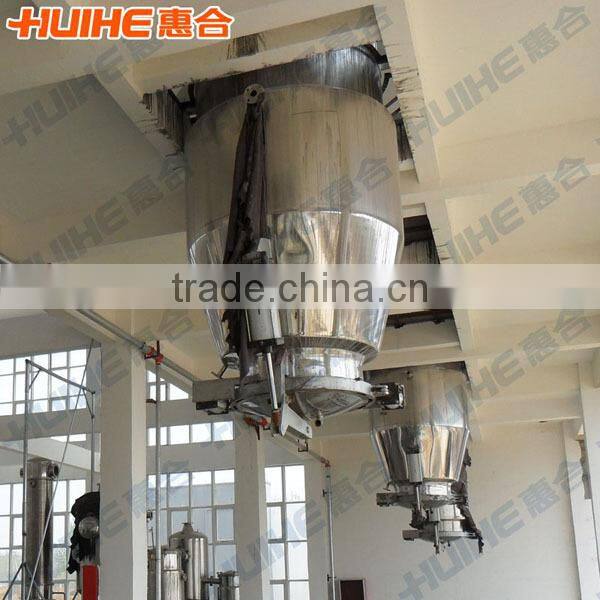

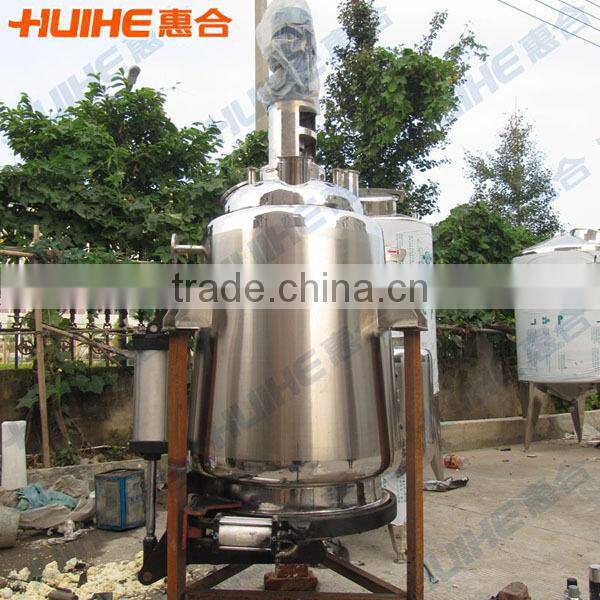

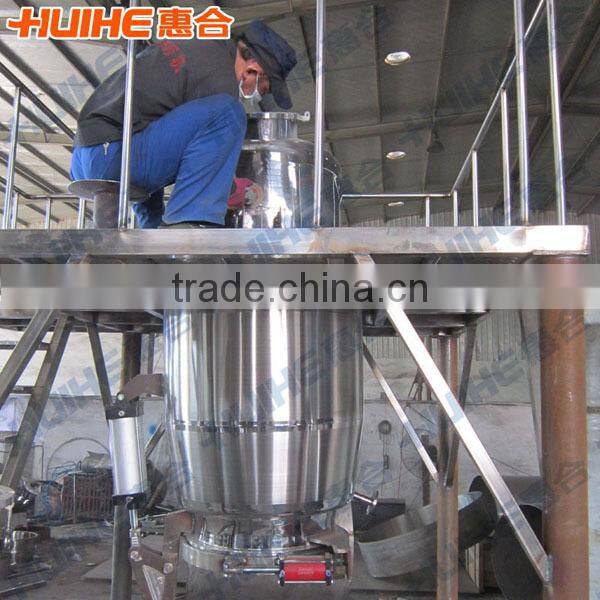

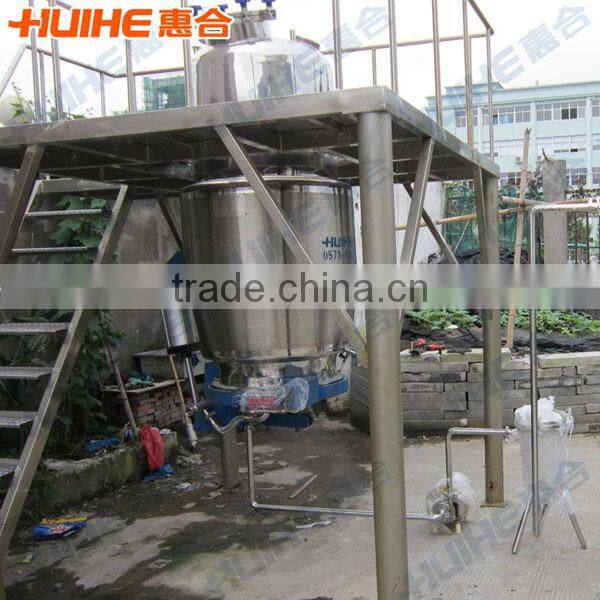

Exactor/ stainless steel exaction tank
Multi-function mushroom type extraction tank is commonly used in medicine, biology, food, chemical leaching extraction equipment. Can provide the material of water extraction, alcohol extraction solvents in volatile oil extraction and recycling dross, applicable to the diacolation, warm immersion, reflux, circulation impregnation, pressure or reduced pressure leaching and so on the many kinds of craft. It has the advantages of high efficiency, easy to operate.
Exactor/ stainless steel exaction tank characteristics
- Shape above big under small, mushroom type. Big: boiling on buffer space is large, is not easy to run; under the small, fast heat transfer solution, heating time is short, high extraction efficiency.

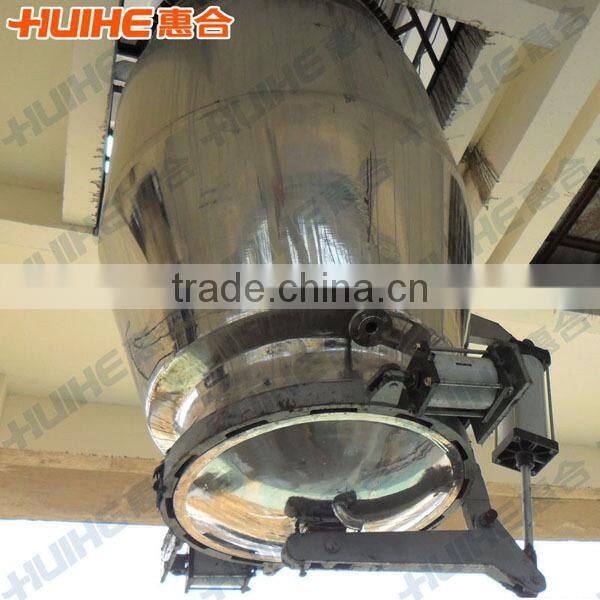

- Slag on the door has a bottom heating, make medicinal herbs extract more completely
Exactor/ stainless steel exaction tank technical parameters
Style No | TQ-1000 | TQ-2000 | TQ-3000 | TQ-6000 | TQ-8000 | TQ-10000 |
Volume | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
Tank design pressure(MPA) | 0.09 | |||||
Jacketed layer design pressure(MPA) | 0.3 | |||||
Feed orifices diameters(mm) | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area (m2) | 3 | 4.7 | 6.8 | 10 | 12 | 15 |
Condensation area (m2) | 4 | 5.4 | 8 | 10 | 15 | 18 |
Cooling area(m2) | 1 | 1 | 1.5 | 2.2 | 2.2 | 2.2 |
Filter area(m2) | 0.25 | 0.25 | 0.25 | 0.3 | 0.3 | 0.36 |
Slag discharge door diameters(m2) | 800 | 800 | 800 | 1000 | 1000 | 1000
|
Gas consumption(kg/h) | 285 | 346 | 570 | 718 | 903 | 1140 |
Equipment weight(kg) | 1800 | 2050 | 2400 | 3025 | 4030 | 6500 |
Heating steam orifices | DN-50 | DN-50 | DN-60 | DN-60 | DN-80 | DN-80 |
Secondary orifices | DN-80 | DN-80 | DN-100 | DN-100 | DN-100 | DN-100 |
Cooling water orifices | DN-50 | DN-50 | DN-60 | DN-60 | DN-70 | DN-70 |
Motor power(KW) | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 7.5 |
Stirring speed(rpm) | 21 | 21 | 32 | 32 | 32 | 32 |
Quality engineering is the life of enterprise development. People from Huihe have established a perfect quality assurance system to all links in quality management strictly controlled and in a good sequence.
