High Quality Beverage Extracting Tank
I Usage

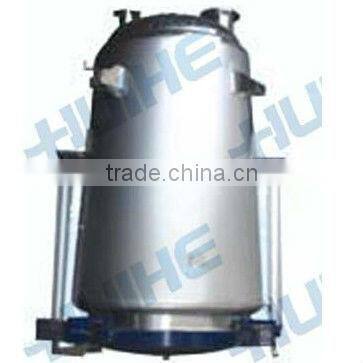

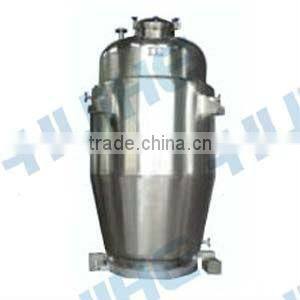

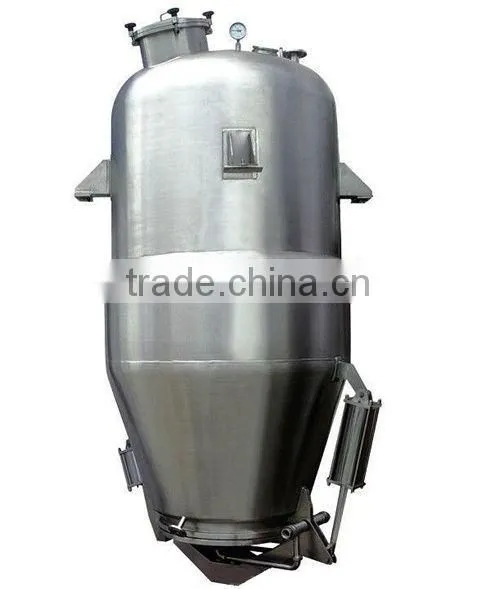

This equipment is mainly used for herbal medicine, animal medicine, herbal extract and alcohol extract atmospheric water, and to recover solvent and extraction of aromatic oil. Entire tank straight extractor using straight forms, commonly used for the extraction of tank structure, easy slag, slag door but limited size, the higher the tank factory plant height of Health requirements. Factory production of more tanks can be extracted with 500L-6 m3 variety of specifications, in addition to the main tank, but in order to recover the solvent and extraction of aromatic oil needs, but also back with foam separation, condenser, cooler, water separator and filter and other accessories. The main tank and accessories and material contact parts are stainless steel, stainless steel slag door mounted seat-type filter, lifetime warranty. Slag door opening and closing and locking a cylinder control, in order to ensure the normal operation, compressed air cylinders required required 0.6MPa-0.7MPa, the control plant with gas control device, according to user requirements for supporting .
II Specifications
Specification/Model | TQ-M-1.0 | TQ-M-2.0 | TQ-M-3.0 | TQ-M-6.0 | TQ-M-8.0 | TQ-M-10 |
Volume(L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 |
Designed pressure of tank (Mpa) | 0.09 | |||||
Designed pressure of jacket (Mpa) | 0.09~0.3 | |||||
Pressure of compressed air(Mpa) | 0.6~0.7 | |||||
Diameter of charging port(mm) | 400 | 400 | 400 | 450 | 500 | 500 |
Heating area(m2) | 3.0 | 4.7 | 6.5 | 8.5 | 10 | 12 |
Condensation area(m2) | 5 | 5 | 8 | 10 | 12 | 14 |
Cooling area(m2) | 1 | 1 | 1 | 2 | 2 | 3 |
Filter area(m2) | 3 | 3 | 3 | 5 | 5 | 6 |
Diameter of slag port(mm) | 800 | 800 | 800 | 1000 | 1200 | 1200 |
Energy consumption(Kg/h) | 245 | 325 | 345 | 645 | 720 | 850 |
