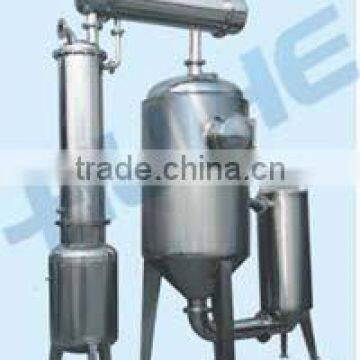

JN Multi-functional Alcohol Recycling Concentrator

JN Multi-functional Alcohol Recycling Concentrator thumbnail-1
JN Multi-functional Alcohol Recycling Concentrator photo-1
US$ 8,400 - 21,450 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
HH
Contact Supplier Request Quote Chat Now
Hangzhou Huihe Machine Facture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Zhejiang, China
Brand Name HH
Model Number JN
Processing Types Other, liquid
Voltage made to order
Power(W) according to requirements
Weight According to capacity
Dimension(L*W*H) According to capacity
Certification CE ISO
Warranty 12 MONTHES
After-sales Service Provided Engineers available to service machinery overseas
  1. Alcohol recycling

Big capacity of recycling, vacuum operation improves the techniques flow of the equipment. High recycling rate of 95% reduces the alcohol loss to less than 5%. Energy cost reduced by 30%, small investment and big profit.

  1. Contracting the liquid material

Combination of external cycling and vacuum vaporizing, quick vaporizing,high condensing specific gravity (1.3-1.4),simple operation, small area taking; nice appearance,  heater, vaporizer and heat keeper integrated and stainless steel board as the protection for external heat-keeping. It is according to GMP standard.



Technical Parameters



Model

DH-500

DH-1000

DH-1500

Parameters

Evaporation kg/h

500

1000

1500

Recycle alcohol

200kg/h

350kg/h

500kg/h

Recycle alcohol degree

85 alcohol degree

Working pressure

0.03-0.09Mpa

Evaporation temperature

40-85°C

Vacuum degree

Above  620mmHg

Concentration proportion

1.2-1.4

Weight Kg

1300kg

1850kg

2850kg

Body size  mm

Length

2000

2200

2500

Width

1000

1200

1300

Height

3000

3300

3500
