Stainless Steel 304 316L Sandwich Boiler for Sale

Hangzhou Huihe Machine Facture Co., Ltd.
Stainless Steel 304 316L Sandwich Boiler for Sale thumbnail-1
Stainless Steel 304 316L Sandwich Boiler for Sale photo-1
US$ 4,500 - 9,999 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
HH
Model Number:
HHJK
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name HH
Model Number HHJK
Type Other, milk mixing
Voltage made to order
Power(W) made to order
Weight made to order
Dimension(L*W*H) made to order
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
 Product Description
Jacketed Kettle's Suitable Material

The Jacketed Kettle is widely used for:



1.boiling water, soup,oil



2.firing dish,sugaring, gluing, boiling



oking porridge, rice, noodles, dried bamboo shoot, etc



4.cooking firing fillings (such as bean-paste, lotus paste, moon cake, mung bean paste)



oking braised food (such as dried bean curd, meat product, green, etc.)



6.braising food (such as chicken feet, chicken wing, spiced eggs, duck feet, duck neck, pig ear, etc.)



ybean sauce and other food industries.



Jacketed Kettle's Characteristics
1. Big heating area;

2. High heating efficiency,easy to control the temperature ;

3. Uniform heating;

4. Fast heating speed, short liquid material boiling time;

5. Safe to use, convenient to operate, widely to use;

6. It has many heating types(electric,steam,gas), discharge types (vertical and tilting) and stirring device to choose;

7. Carbon steel jacketed kettle cost is lower than stainless steel jacketed kettle.

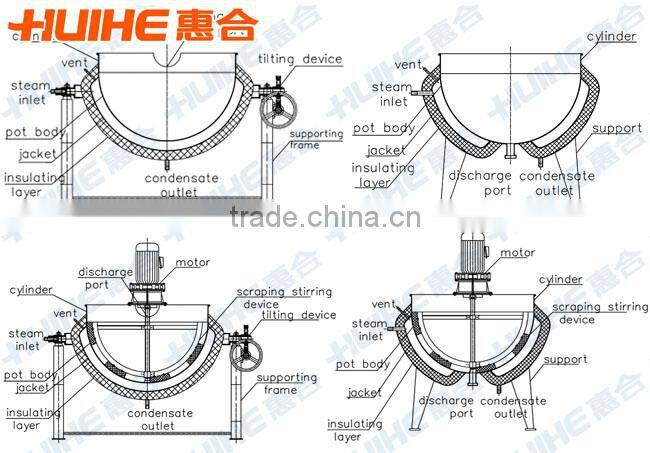

Jacketed Kettle 's Material and Structure
The Jacketed Kettle material from Hangzhou Huihe Machine Facture Co., Ltd usually uses SUS304 or SUS316L to make if the customer has no special requirements.

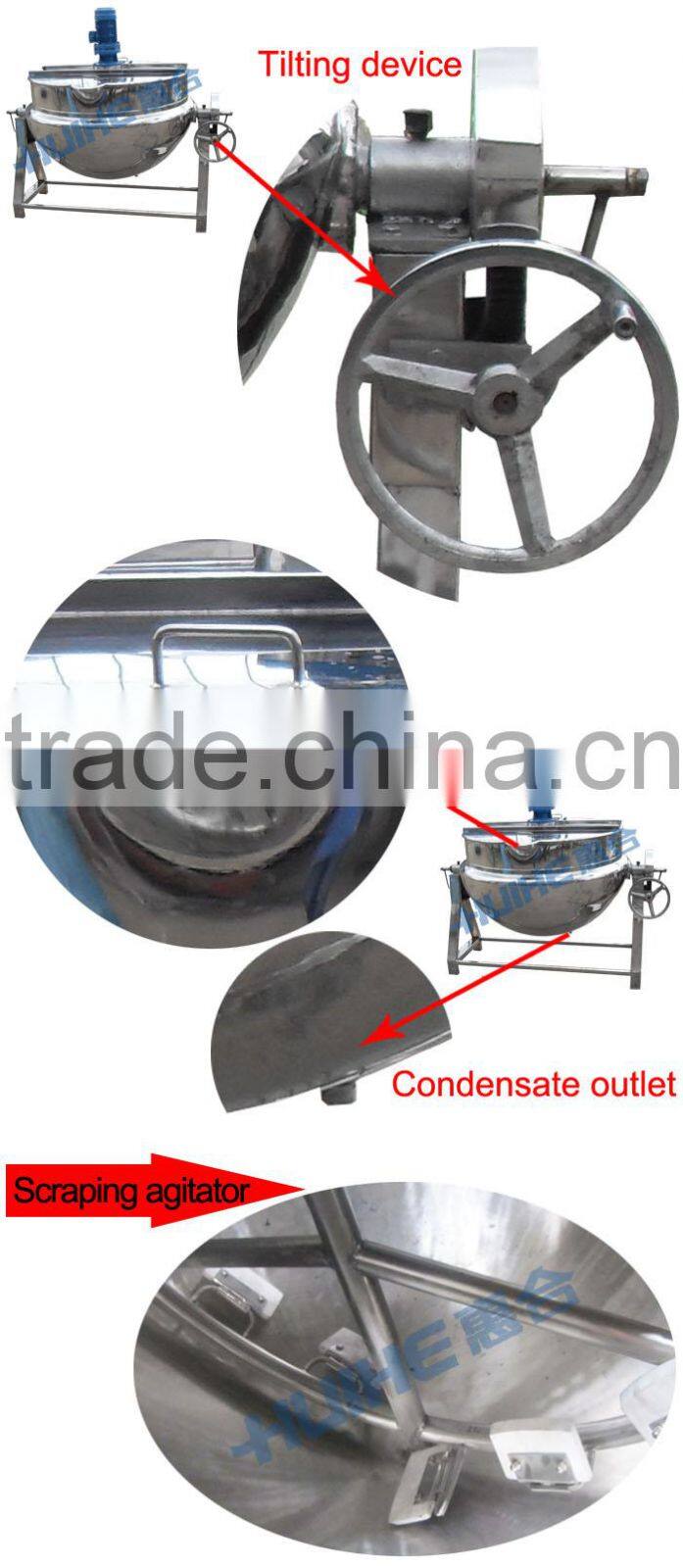

Jacketed Kettle 's Detailed Picture




Stainless Steel 304 316L Sandwich boiler for sale

Jacketed Kettle 's Technical Parameter

Metric volume(L)

50

100

200

300

400

500

600

800

1000

Caliber (mm)

Φ600

Φ700

Φ800

Φ900

Φ1000

Φ1100

Φ1200

Φ1300

Φ1400

Depth of pot(mm)

400

450

530

630

680

730

780

830

900

Heating area(m2)

0.45

0.58

1.12

1.42

1.75

2

2.3

3.2

3.9

Electric power(kw)

9

9

15

18

18

24

24

27

30

Heat transfer oil QTY.(L)

30

36

45

60

70

80

100

200

250

Working pressure

≤0.09Mpa(can be adapted according to customer requirement)

Mixing speed

36 r/min(can be adapted according to customer requirement)

Mixing power(Kw)

0.55

0.55

0.75

1.1

1.1

1.5

1.5

2.2

2.2


Notes:

1. The Industrial Steam Jacketed Kettle for sale technical parameters on the chart is standard parameters, if customers have other requirements, please put forward, we will make a case according to your requirements and actual situation.

2. The jacket layer work pressure of Industrial Steam Jacketed Kettle for sale is ≤0.09Mpa, it also can be made according to customers requirement.

3. The process parameters need to provid: volume, the nature of material, working pressure, working temperature, specific requirements, etc.

 Our Services
Why Choosing Our Jacketed Kettle

1. Huihe machine have sales department, engineering department, after sales department, we are all service for you;

2. We are not competing for the price but the high quality and friendly service we competition

3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;

4. The after sales colleague will service for you from place an order to the actual production;

5. 9 years of industry experience, industry leader;

6. Factory, office site visit.

Stainless Steel 304 316L Sandwich boiler for sale
 Packaging & Shipping
Jacketed Kettle ’s Packing Before Delivery
 Company Information
Authentication certificate and strength show

Hangzhou Huihe Machine Facture committed to design and manufacture all kinds of stainless steel container.



We can design according to customers' requirements for various kinds of stainless steel vessel, jacketed kettle, autoclave, milk cooling tank,and fermentor,etc .



The equipments conform to the sanitary standards, thus effectively guarantee people's health.


Stainless Steel 304 316L Sandwich boiler for sale

Huihe Company not only has a professional oversea sales team , but also has department of networks, sales Support and technology research and development,etc .We can supply turn-key project for design and manufacture of a whole production line, for example milk production line, juice production line ,tea production line ,etc.

Our core value is “service for small and medium food enterprises, and benefit of the public”, the products has been send to all over the world for 9 years . We are deeply trusted by the users in the food and beverage industry. We are famous in the food machine field for jacketed kettle, sterilization equipment, reaction tank and fermentation tank ,etc.

Stainless Steel 304 316L Sandwich boiler for sale

Since founded in 2005 , we service customers with good pre-sales support and after-sale service . We purpose is "guaranteed quality, complete variety , competitive price , timely delivery" .We insist our vision “Honest, pragmatic and win-win ” to provide best quality and service.
