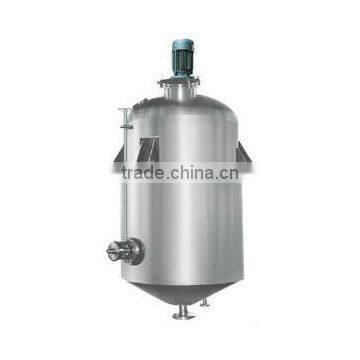

Alcohol Deposition Can

Production discription
The device serves for alcohol deposition to orally-taken liquid of Chinese traditional medicine, food and health care product.
The deposition can of alcohol is the key equipment in the alcohol deposition procedure.
Performance:
The device is made with stainless steel, fitted with high-pressure automatic spray&clean system. The clip-sleeve can contain low-temperature cooling water. The drive part is mechanically enclosed. The explosion-proof motor can assure the production progress meeting the GMP standard on quality.

Technology parameter

Parameters  JC-
300 JC-
500 JC-1000 JC-1500 JC-2000 JC-3000 JC-6000
Cubage  0.3 0.5 1.0 1.5 2.0 3.0 6.0
Area of heat exchange (m3) 1.8 3.0 4.5 6.5 7.5 8.5 13
Working temperature m2 normal temperature~15c
Double layer pressure Mpa 0.25
Inner pressure Mpa 0.01
heat transfer coefficient 150~200Kj/m2 h c
Power of stirring Kw 0.75 0.75 1.5 2.2 2.2
Rotation speed of stirring r/min 250 250 160 125 125 125 125
Device weight kg 512 1250 1480 1750 1880 2200 4000
Length  mm 600 800 1000 1200 1300 1400 1600
Width  mm 850 1050 1300 1550 1650 1750 2000
Height  mm 900 900 1200 1200 1300 1400 2700
