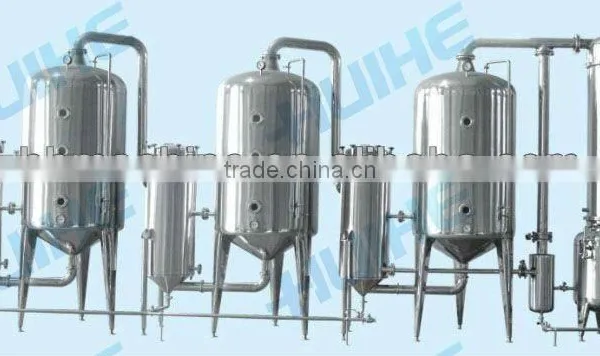

sanitary vacuum concentrator tank
- 260 Piece / Pieces per Month
- ningbo or shanghai port
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | hh | Model Number: | hh-0120 |
Type: | Other, water treatment | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Product information:
1. Energy-saving profit: Take SJN-1000 as example, the saves respectively in the terms of vapor, water and electric per year are about 5400 tons, 140000 tons and 130000watt, equal to RMB200000 yuan around.
2. The device uses the modes of outer-heated natural cycle and vacuum negative pressure evaporation featuring swift evaporation with concentration proportion of 1.4(in case of normal China traditional immerse cream).
3. The concentrator uses triple-effect to synchronously vapor, which to utmost extent utilize the second vapor. The client can lower investment in boiler and the energy consumption can be 70% less than that of the single-effect concentrator it is about less than one year that the client can withdraw the investment in the concentrator.
4. Feature of multiple function handle: (1) The reclaimable alcohol concentration is about 80%. (2)The three-effect can concentrate three different materials. (3)The single-effect, two-effect and three-effect can collect cream together time after time. (4)The intermittent and continuous material feding is available. (5)The one-off cream formation is available. The material input is finished by the first effect and after the second and thirst effect, the finished cream is available one-off.
5. The special structure of concentrator can bring the concentrated material thick taste and even cream quality. The concentration under the seal and non-bubble condition can prevent material from loss and pollution. The present material can be concentrated presently, which features immune to block and convenient cleaning which can be make just by opening the up and down covers and can be make by one person.
6. The part inside of the concentrator in contact with the material is made with stainless steel SUS304. The thermal layer made with polyurethane is available at the heater and evaporator. The surface is treated with sand grinding and surface polishing, meeting with the GMP standard.
Technical Pramaters:
Model | QN-300 | QN-500 | QN-700 | QN-1000 |
Evaporation KG/H | 70 | 120 | 145 | 195 |
Volume | 300L | 500L | 700L | 1000L |
Jacket pressure | 0.09Mpa | |||
Vacuum degree | 500-620mmHg | |||
Heating area | 1.3 | 1.6 | 2 | 2.8 |
Condensation area | 2.4 | 3 | 3.5 | 4 |
Weigh KG | 380 | 450 | 630 | 950 |
Length mm | 1900 | 2030 | 2100 | 2335 |
Width mm | 1100 | 1200 | 1300 | 1520 |
Height mm | 2300 | 2500 | 2600 | 2765 |
