Home > Products > Concentration Evaporation Crystalization Equipment > ZN series Vacuum Decompress Concentrate Tank

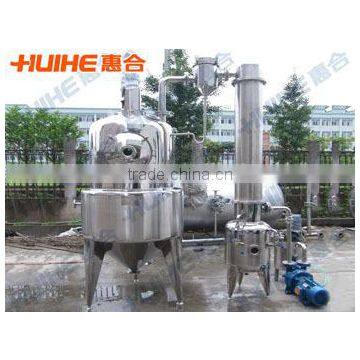

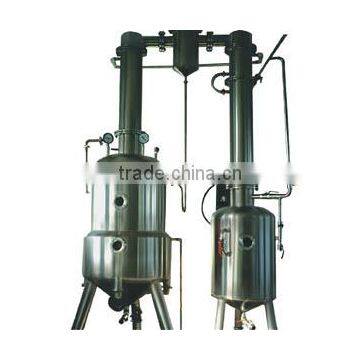

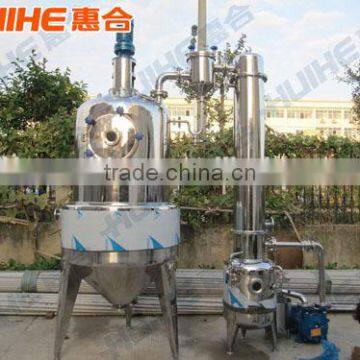

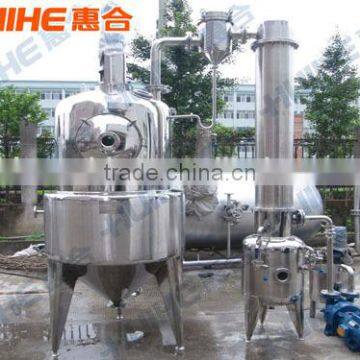

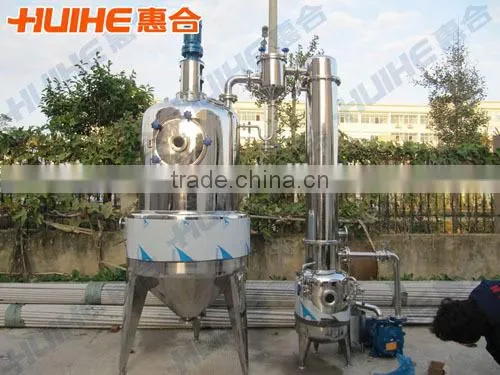

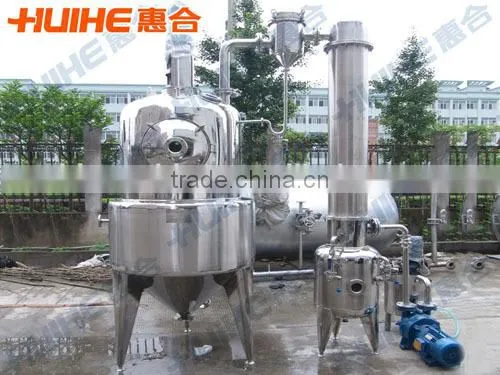

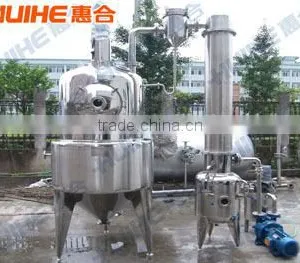

ZN series Vacuum Decompress Concentrate Tank
USD $3,355.5 - $9,888.5
/ Piece
1 Piece(Min.Order)
- 20000 Piece / Pieces per Month
- NINGBO OR SHANGHAI PORT
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Model Number | NHZ | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
ZN series Vacuum Decompress Concentrate Tank
Product Description
Usages of Vacuum Decompress Concentrate Tank
Structure of Vacuum Decompress Concentrate Tank
Characteristic of Vacuum Decompress Concentrate Tank
1. Alcohol reclamation: large reclamation capacity and the vacuum concentration procedure make its production capacity five to ten times of that of the old counterpart and can lower the energy consumption for 30%, featuring little investment and high reclamation profit.
2. Concentrated liquid material: the device uses the models of outer heated natural cycle and vacuum negative pressure evaporation featuring swift evaporation with concentration proportion of 1.3. The liquid material concentrates without bubble under full seal state. The drug liquid after concentration by the device features non-contamination and thick drug taste and easy cleaning (it is just to open the up and down cover for cleaning). The device is easy to handle and it needs a little foundation area for installation. The heater and evaporator use stainless steel for thermal purpose. The polyurethane is used as the thermal material. The surface is treated with sand grinding and surface polishing, meeting with the GMP standard.
Technical Parameters of Vacuum Decompress Concentrate Tank
Model | ZN-50 | ZN-100 | ZN-200 | ZN-300 | ZN-500 | ZN-700 | ZN-1000 |
Volume(L) | 50 | 100 | 200 | 300 | 500 | 700 | 1000 |
Liquid tank volume(L) | 35 | 45 | 60 | 76 | 100 | 125 | 165 |
Jacket layer pressure(MPA) | 0.09 | ||||||
Vacuum degree(mmHg) | 600-700 | ||||||
Heating area(M2) | 0.25 | 0.59 | 0.8 | 1.1 | 1.45 | 1.8 | 2.2 |
Condensation area(M2) | 1.2 | 1.7 | 2.4 | 3.0 | 3.3 | 3.6 | 4.1 |
Cooling area(M2) | 0.29 | 0.35 | 0.45 | 0.6 | 0.7 | 0.85 | 1.05 |
Overall size(mm) | 1200 | 1350 | 1700 | 1700 | 2100 | 2400 | 2390 |
600 | 750 | 800 | 1000 | 1200 | 1300 | 1300 | |
2200 | 2200 | 2700 | 3400 | 3400 | 3400 | 3720 | |
Notes:
Packaging & Shipping
| Packaging Details | standard wooden packaging |
| Delivery Detail | 30 working days |
