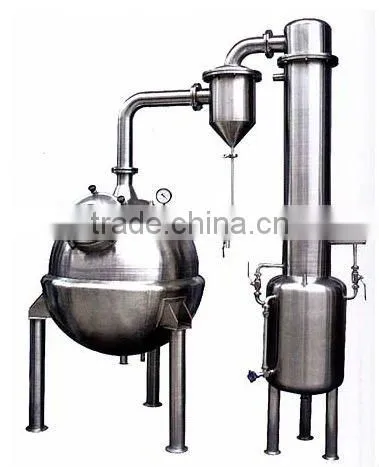

The equipment has the functions of heating and heat preservation. It is manufactured, pressure-tested and checked in accordance with the <Technology Specifications for Steel Welded Vessel>
The standard specification from 100L to 7000L and order-design or order-manufacture are all available.
The joint is of quick-acting type in compliance with ISO standard. The inner part is made of SUS316L or SUS304. At the tanks body are respectively fluid level gauge (the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening,the rmometer (digital-indicated type or dial type), CIP universal tank-cleaning device, view mirror at lamp hole, some fluid inlets & outlets and herringbone hole.
Technical Parameters:
Specification | 300 | 500 | 700 | 1000 |
Evaporation Capacity (kg/H) | 70 | 120 | 145 | 195 |
Capacity (L) | 300 | 500 | 700 | 1000 |
Jacketed Layer Pressure (Moa) | 0.09 | |||
Vacuum Degree (mmHg) | 500-620 | |||
Heating Area | 1.3 | 1.6 | 2 | 2.8 |
Cooling Area | 2.4 | 3 | 3.5 | 4 |
Outside Size (mm) | 1900*1100*2300 | 2030*1200*2500 | 2100*1300*2600 | 2335*1520*2765 |
