Help CenterWheat Combine Harvester
Related Products
Specifications
+ Wheat Combine Harvester+ 2000 mm cutter bar
+ 75HP diesel engine
+ HST transmission
+ Double threshing cylinder
Wheat Combine Harvester :

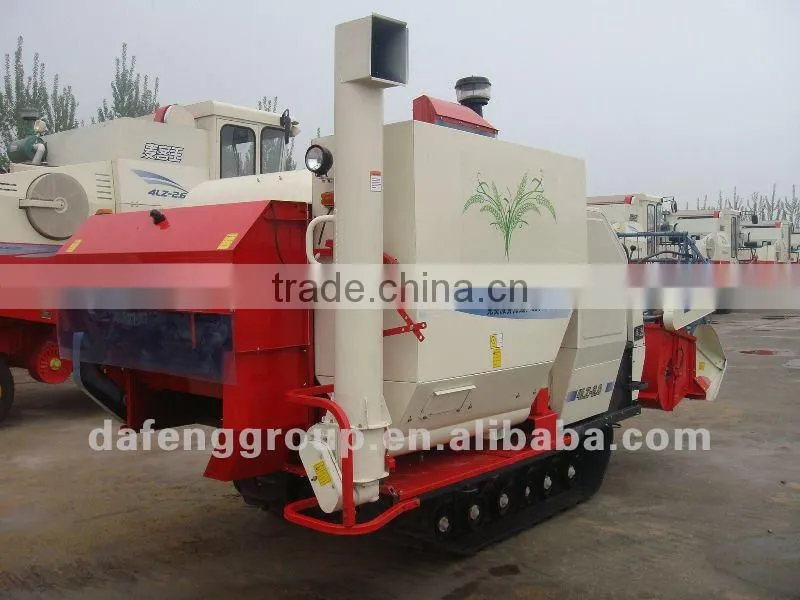

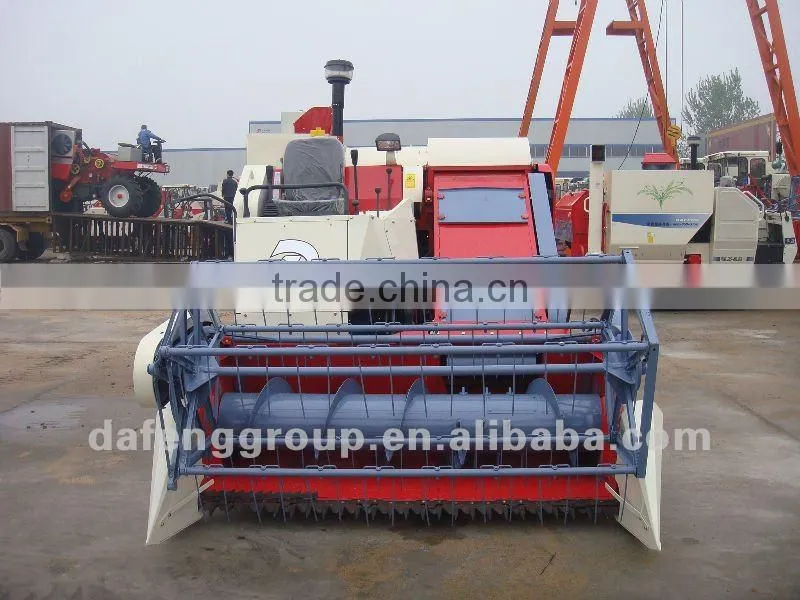

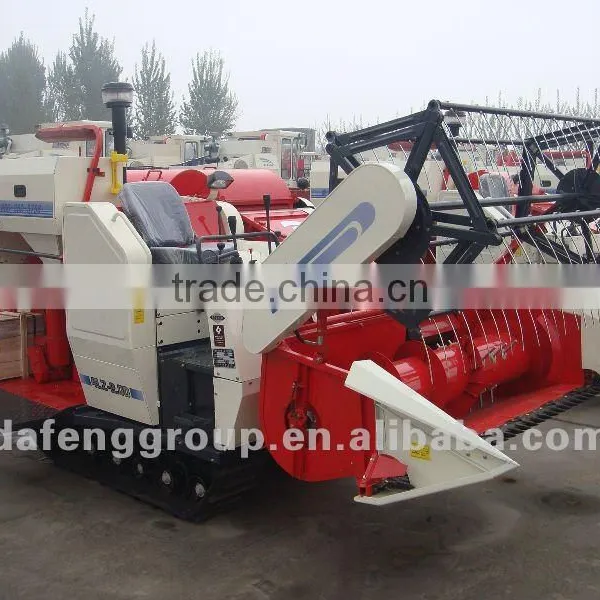

4LZ-2.0D self-propelled full feeding wheat combine harvester
A. Rice & Wheat Combine Harvesters
Type: 4LZ-2.0D
FOB Qingdao Port Price: $ /set
Time of delivery: 7days
Type of Payment: T/T or L/C
B. Main Features:
1. 75 HP diesel engine, 2 meters cutting width, Auto Transmission, high efficiency.
2. Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain more clean, less breakage and less loss.
3. Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
4. Lower ground pressure, better for passing in paddy field.
5. Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
C. Technical Specifications:
Model |
4LZ-2.0D |
Working Efficiency |
0.53 ~ 0.80Ha./H (1.32 ~ 2.00Acre/H) |
Overall Dimensions (L x W x H) |
4700×2300×2700 mm |
Weight |
2400 kg |
Engine |
Diesel Engine |
Model |
498BZT |
Rated Power |
75 HP (55kw) / 2400 rpm |
Fuel consumption per hectare |
≤30 Kg/Ha. |
Chassis |
|
Rubber Track |
400x90x48 |
Transmission |
HST F:3 / R:3 |
Ground Pressure |
≤18 Kpa |
Min. Ground Clearance |
240 mm |
Header |
|
Cutting Width |
2000 mm |
Type of Lifting |
Hydraulic |
Lifting of Reel |
Hydraulic |
Steering |
Hydraulic |
Conveyor |
Chain rack tooth type |
Threshing Cylinder |
Tangential Flow + Axial Flow, Dual Spike-tooth type |
Cleaning |
Fan (front blowing + rear suction)+Sieving+re-thresher |
Paddy fill Method |
Grain Tank & Bag |
Grain Tank |
1.1 CBM/ (500-550 kg) |
Total Loss |
|
Rice |
≤3% |
Wheat |
≤1.2% |
Breakage |
≤1.5% |
Impurity |
≤2.0% |
