Maize Small Combine Harvester
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
corn cob harvester
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
corn cob harvester
Type
Combine Harvester
Drive Type
Gear Drive
Usage
Corn Harvester
Place of Origin
Shandong, China
Brand Name
DAFENG KING
Model Number
4YZ-3A
Dimension(L*W*H)
7580X2150X3450MM
Weight
6050KG
Certificate
Other, ISO9000
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Type |
4YZ-3A self-propelled corn combine harvester |
Working rows |
3 |
Total loss rate |
≤4 |
Broken rate |
≤1% |
Roughage content |
≤1.5% |
Reliability |
≥95% |
Engine |
125hp |
Working productivity |
0.27-0.6ha/h |
Dimension (L×W×H) |
7580×2150×3450mm |
Weight |
6050kg |
Ground clearance |
350mm |
Maximum unloading height |
1650mm |
Back-to-field machine type |
Flail knife(44 pieces) |
Width of back-to-field machine |
1800mm |
Grain tank |
2.5 m3 |
Option |
140hp engine |

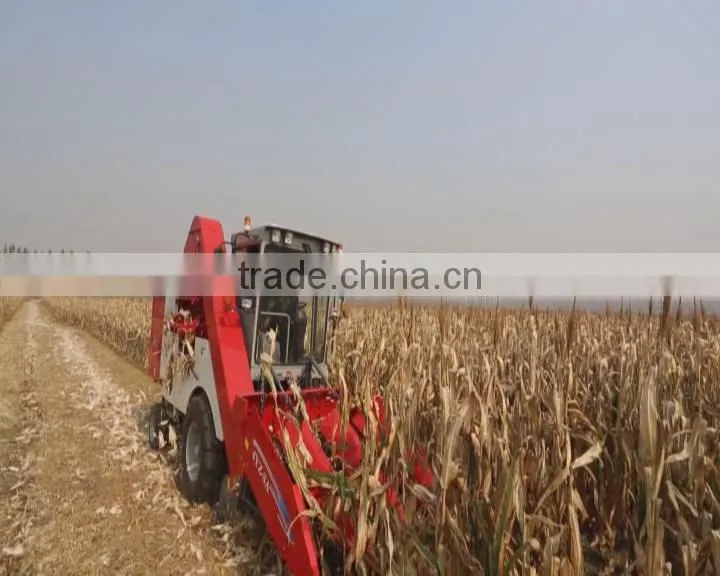

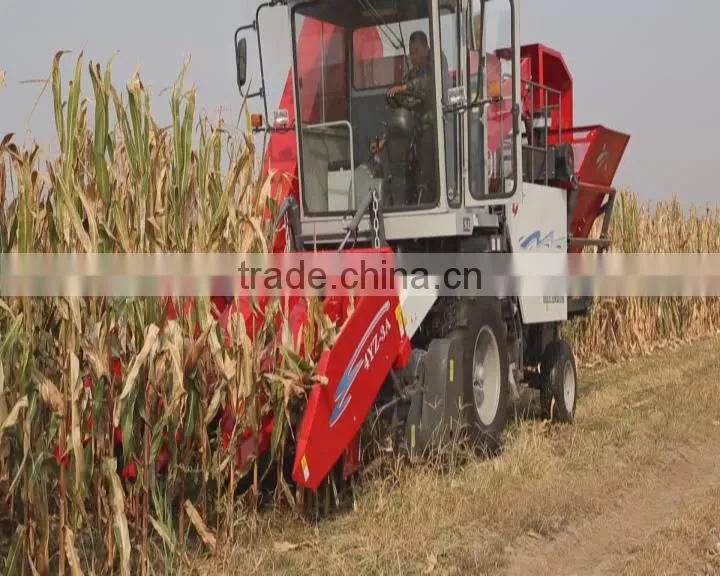

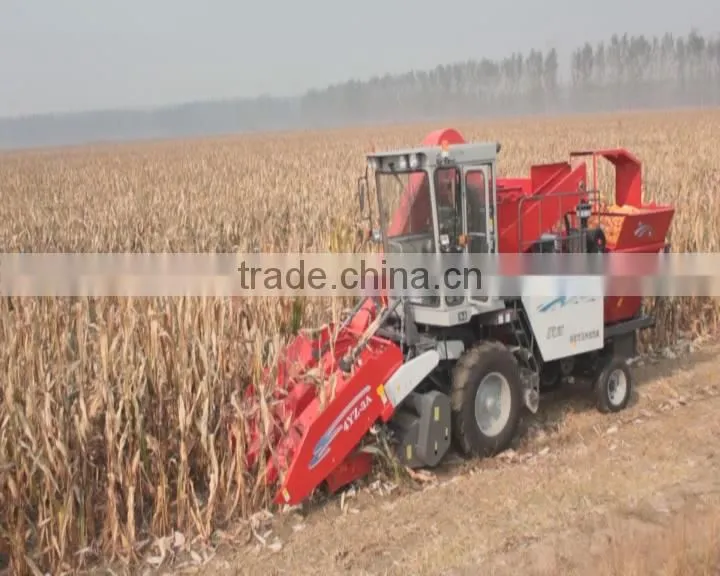

Working pictures
Harvesting results: clean corn cobs

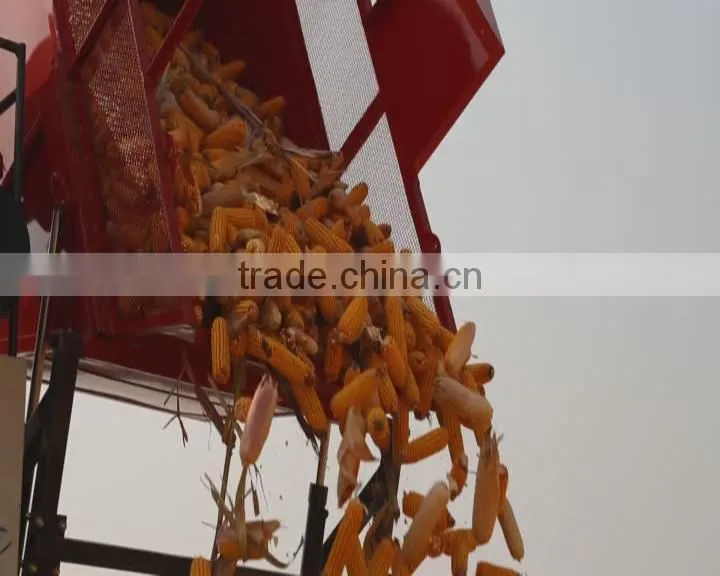

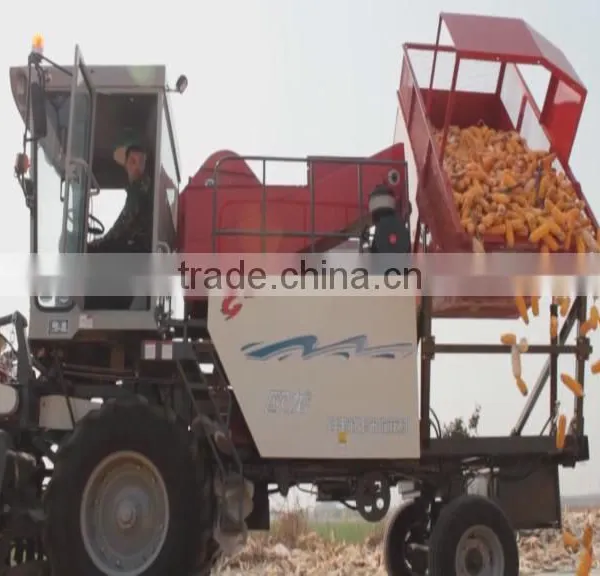

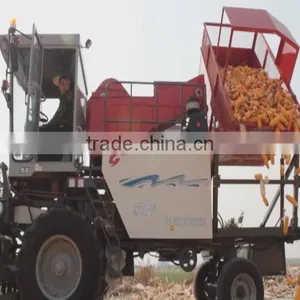

Corn cobs unloading
