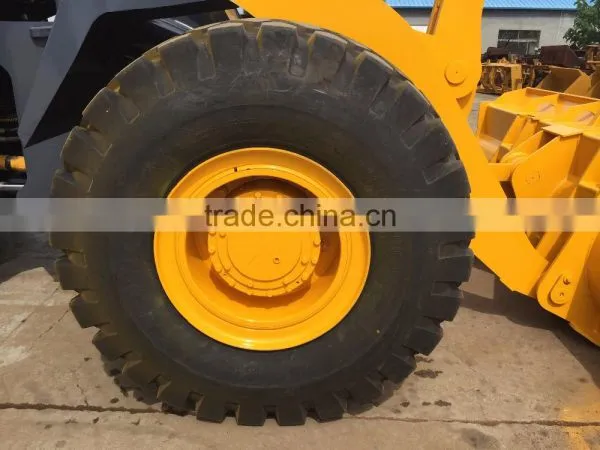

Front End Loader, Hydraulic Pilot 5 Ton Wheel Loader With Low Price
US$ 40,800 - 40,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
QZCATER
Model Number:
ZL956
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China 3m3 Bucket Wheel Loader 6t With Luxurious Cabin, E-control Gearbox and Wet Brake AxleUS$ 55,000 - 55,000MOQ: 1 Set -
5t 3m3 Bucket Wheel Loader With Joystick and GrappleUS$ 40,800 - 40,800MOQ: 1 Set
-
5t 3m3 Bucket China Wheel Loader With Joystick and ForkUS$ 40,800 - 40,800MOQ: 1 Set
-
Hydraulic Pilot 5 Ton Wheel Loader With JoystickUS$ 40,800 - 40,800MOQ: 1 Set
-
5T 4WD Wheel Loader With Best Oversea ServiceUS$ 40,800 - 40,800MOQ: 1 Set
Condition
New
Brand Name
QZCATER
Model Number
ZL956
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
7934*3060*3483mm
Rated Load
5000kg
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
No overseas service provided
Specifications
| Rated capacity | 3m³ |
| Rated weight | 5000Kg |
| Operating weight | 17000Kg |
| Max. breakout force | 172.3KN |
| Total time | 11s |
| Max. dump height | 3098mm |
| Dump distance | 1198mm |
| Wheel base | 3200mm |
| Tread | 2250mm |
| Transportation | 7934*3060*3483mm |
Engine
| Model of engine | WEICHAI STEYR WD10G220E22 or CUMMINS 6CTA8.3-C215(TIGER1) or 6CTAA8.3-C215(TIGER2) |
| Pattern | Turbocharger, vertical, water-cooled, 4-stroke, direct injection |
| Rated power | 162KW/160KW |
| Max. torque | 860N.m |
Torque converter and transmission system
| Model of torque device | Torque Converter and Gearbox Combination |
| Model of torque converter | YJSW315-6J01 |
| Pattern | 4-element,single stage |
| Transmission type | Full-power shift, countershaft type |
| Number of gear | 2 forward,1 reverse |
| Max. travel speed | 40km/h |
| Axle | XUZHOU |
| Main reducer type | Arc taper gear, model ration of first grade |
| Pattern of wheel side moderation | Single stage planetary |
Tire
| Tire size | 23.5-25 |
Steering system
| Pattern | Full hydraulic steering system |
| Min. turning radius(outside of bucket) | 7268mm |
| Max. turning angle | 35°±1 |
Implement hydraulic system
| Implement pump | CBGJ2080 |
| Displacement | 250L/min |
| System working pressure | 20.3MPa |
| Distribution device model | DF32 |
| Pilot valve model | DJS |
Brake system
| Brake system | Air assisted oil disc on four wheel |
| Parking brake | Air cutting control inner expand hoof |
