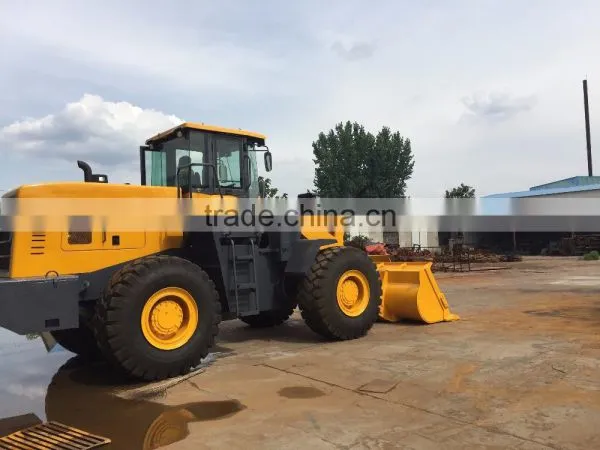

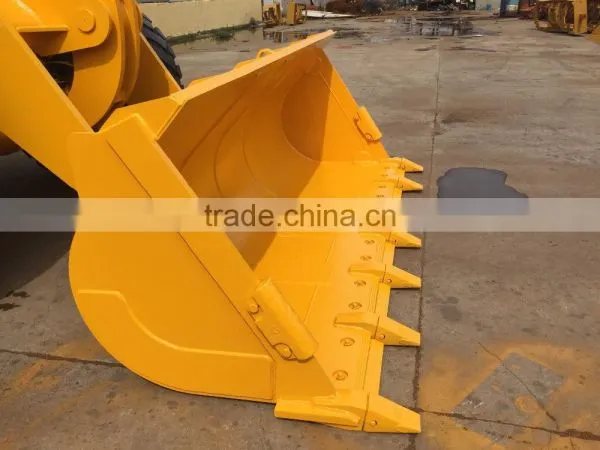

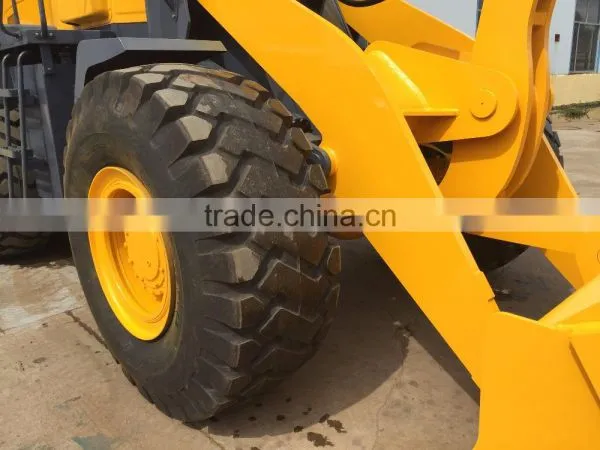

hydraulic pilot 5 ton wheel loader with joystick

FOB Price

USD $40,800 - $40,800 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	QZCATER	Model Number:	ZL956
Place of Origin:	Shandong, China	Type:	Front Loader	Moving Type:	Wheel Loader
Dimension(Long * Breadth * High):	793430603483mm	Rated Load:	5000kg	Certification:	CE ISO
Warranty:	1 Year	After-sales Service Provided:	No overseas service provided

Specifications

Engine

Model of engine	WEICHAI STEYR WD10G220E22 or CUMMINS 6CTA8.3-C215(TIGER1) or 6CTAA8.3-C215(TIGER2)
Pattern	Turbocharger, vertical, water-cooled, 4-stroke, direct injection
Rated power	162KW/160KW
Max. torque	860N.m

Torque converter and transmission system

Model of torque device	Torque Converter and Gearbox Combination
Model of torque converter	YJSW315-6J01
Pattern	4-element,single stage
Transmission type	Full-power shift, countershaft type
Number of gear	2 forward,1 reverse
Max. travel speed	40km/h
Axle	XUZHOU
Main reducer type	Arc taper gear, model ration of first grade
Pattern of wheel side moderation	Single stage planetary

Tire

Tire size

23.5-25

Steering system

Pattern	Full hydraulic steering system
Min. turning radius(outside of bucket)	7268mm
Max. turning angle	35°±1

Implement hydraulic system

Brake system

Brake system	Air assisted oil disc on four wheel
Parking brake	Air cutting control inner expand hoof
