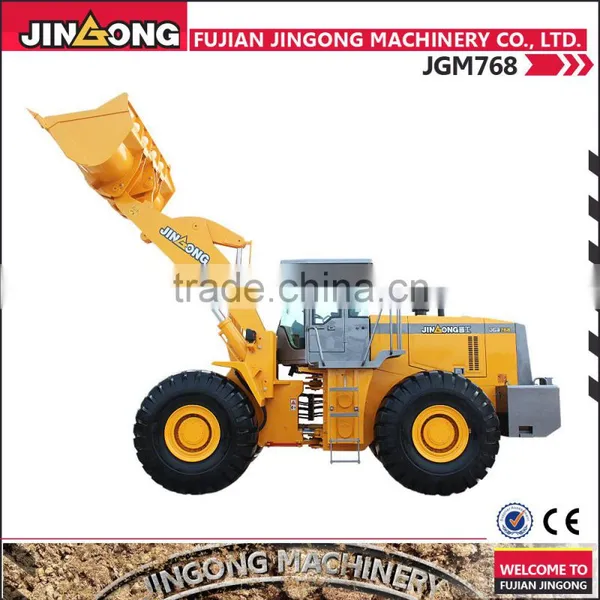

Manufacturer Articulated 6Ton JGM768 Wheel Loaders With Various Attachments

Main Specification Data

Weight

19700kg

Rated load

6000kg

Bucket capacity

3.5m³

Rated power

175kw

Max-tractive force

180KN

Max-breakout force

210KN

Max-climbing angle

30^o

Max dumping height (when equipped with high dumping arm)

3215mm

Dumping reach

1165mm

Overall dimension (LxWxH)

8490*3090*3565mm

Engine

Model

Weichai WD10G240E21

Type

4-stroke, inline diesel engine, turbo charged  dry cylinder direct-injection

Qty of cylinders-bore x stroke

6-126X130mm

Max torque

920N.m

Rated power

175kw

Rated speed

2200r/min

Transmission System

Torque converter

Hydraulic torque converter TZL18/MT0848A

Transmission

TZL18/MT0848A

Gear shift

4 forward, 1 reverse

Speed

Forward I: 0-7km/h

Forward II: 0-11km/h

Forward III: 0-23km/h

Forward IV: 0-38km/h

Reverse I: 0-7km/h

Reverse II: 0-11km/h

Reverse III: 0-23km/h

Front &Rear Driving Axle

Main driving

Spiral bevel gear a deceleration

Wheel reduction

Planet gear transmission of spur gear 4.94

Driving type

4 WD

Front axle

Meritor driving axle

Rear axle

Meritor swing axle

Tyre type

26.5-25

Tyre pressure

0.475Mpa

Steering System

Type

All hydraulic coaxial flow amplification steering system

Steering angle

35^o each side

Min-turning radius

Outside of bucket: 7690mm

 Rear outer wheel center: 7050mm

Hydraulic System

System working pressure

18Mpa

Boom lifting time

≤6.5s

total

≤12s

Brake System

Service brake

Air over hydraulic disc brake

Parking brake

Drum-type cut-off parking brake

Fuel capacity

Fuel

230L

Hydraulic oil

270L
