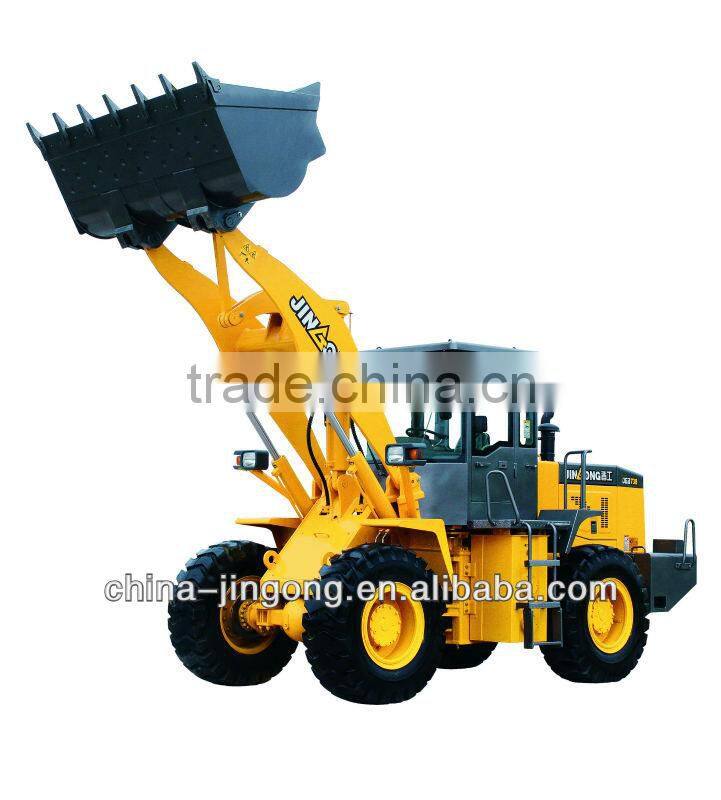

JINGONG JGM738 4 Ton Wheel Loader

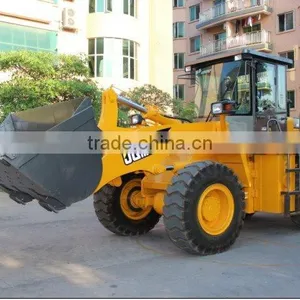

JINGONG JGM738 4 Ton Wheel Loader thumbnail-1

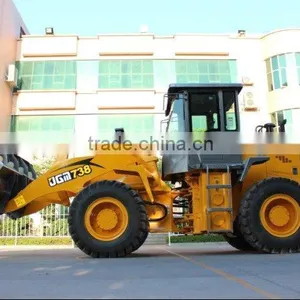

JINGONG JGM738 4 Ton Wheel Loader thumbnail-2
JINGONG JGM738 4 Ton Wheel Loader photo-1

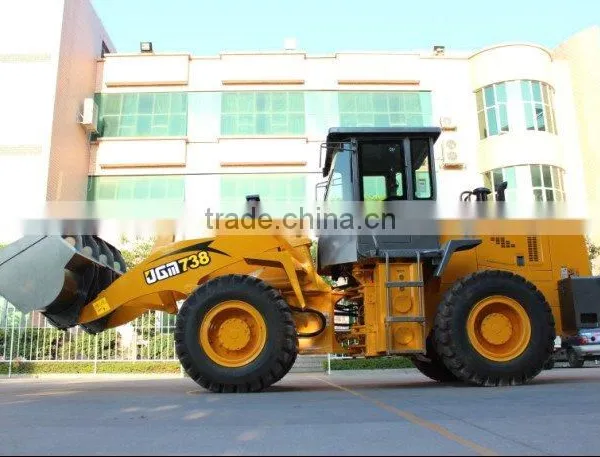

JINGONG JGM738 4 Ton Wheel Loader photo-2
US$ 29,500 - 32,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
JinGong
Model Number:
JGM738
Contact Supplier Request Quote Chat Now
Fujian Jingong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name JinGong
Model Number JGM738
Place of Origin Fujian, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 7640*2460*3200
Rated Load 3500KG,3500kg
Certification ISO9001
Warranty 1 Year
After-sales Service Provided No overseas service provided

JINGONG JGM738 Wheel Loader cheap construction drip irrigation equipment



Main Specification
Operating Weight11500kg
Standard Bucket Capacity2.0m3
Rated Power

105KW/2200rpm

Rated Load

 3500kg

Max. Dumping Height

 3125mm

Dumping Reach

 1155mm

Overall Dimension

 7640*2460*3200mm

Engine

 Weichai Deutz

Model

 TD226B-6G

Type

 4-stroke, inline diesel engine, turbo charged direct-injection

Qty of Cylinders-Bore/Stroke

 6-105*120mm

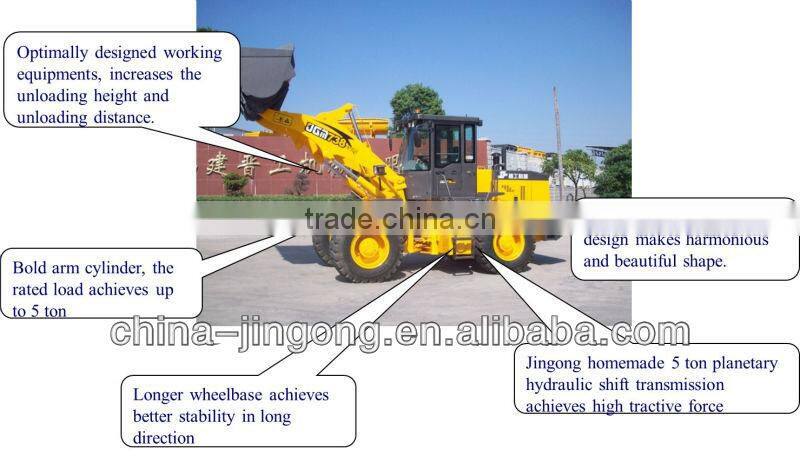

1. Dump height can reach 5 ton wheel loader standard, use the 5 ton loader’s gearbox and torque converter, more powerful than common 3 ton loader, can be as the substitute of 4 ton loader completely

2. Long wheelbase, articulated frame and chest structure provides strong load capacity and better stability

3. CAD optimally designed single rocker arm Z-type reversal mechanism of the equipment provides large breakout force

4. Joystick and single rock, all hydraulic coaxial flow amplification steering system gives flexible turning and reliable operation

5. Quenched integral cutting edge bucket, more strength, better wearing resistance and long life.

6. front loader





JINGONG JGM738 4 ton wheel loaderJINGONG JGM738 4 ton wheel loaderJINGONG JGM738 4 ton wheel loader
