Help CenterSmall Crawler Loader JINGONG JC 65 Small Skid Steer Loaders Engine Power 60hp/small Crawler Loader
Related Products
-
12 Ton Wheel Loader JC35 Skid Loader,china Bobcat,engine Power 35hp,loading Capacity 500kgNegotiableMOQ: 1 Set -
JINGONG JC35 Skid Loader China Bobcat Engine Power 35hp Loading Capacity 500kg for SaleNegotiableMOQ: 1 Set
-
Used Front Loader JC35 Skid Loader China Bobca Engine Power 35hp Loading Capacity 500kgUS$ 10,000 - 35,000MOQ: 1 Set
-
Electric Skid Loader JC35 Skid Loader China Bobcat Engine Power 35hp Loading Capacity 500kgUS$ 20,000 - 30,000MOQ: 1 Set
-
New Skid Steer Loader JC35 Skid Loader China Bobcat Engine Power 35hp Loading Capacity 500kgUS$ 10,000 - 30,000MOQ: 1 Set
SPECIFICATIONS |
Dimensions |
||||
LONGER WHEEL BASE |
900 |
A. Height at Maximum Extension |
3690mm |
||
Tipping load (kg) |
1800 |
B. Height to Bucket Hinge Pin |
2920mm |
||
Bucket Capacity (m3) |
0.4-0.5 |
F. Width with Bucket |
1900mm |
||
Engine power (Hp) |
65 |
G. Track Width
|
1500mm |
||
Operation Weight(kg) |
3000 |
H. Wheelbase |
1085mm |
||
Max. Travel Speed (km/h) |
12(18) |
J. Ground Clearance |
200mm |
||
|
Hydraulic Pump Flow (L/mini Fuel Tank Capacity (L) |
75 80 |
K. Dump Angle L. Dumping Height |
40 2330nun |
||
Tires |
12/16.5NHS |
N. Rollback at ground |
26 |
||
Overall dimensions (mm) |
3440 x 1820 X 2050 |
U. Angle of Departure |
20 |
||
Engine | |||||
Maker/Model |
Perkins 804D 33 |
Net Power |
65 Hp @ 2500rpm |
||
Type |
4 Cylinder in line, Water cooled, 4 stroke Diesel Engine |
Displacement |
3.3L |
||
Standard Optional | |||||
1. Deluxe Enclosed Operator Cab |
1. Hydraulic Joystick Controls |
||||
2Hand Control System (Mechanical type) |
2. 2 Speed Transmission System |
||||
3.Standard Bucket |
, 3. Attachments: Backhoe, Breaker, Angle Blade, |
||||
|
4. Preheat Starting Assist System for Extreme Cold Weather |
Auger, Sweeper, Pallet Fork, Combination Bucket. Mower. Asphalt Cutter, and More. |
||||
5. Cab Fitted with a Heater as Standard | |||||

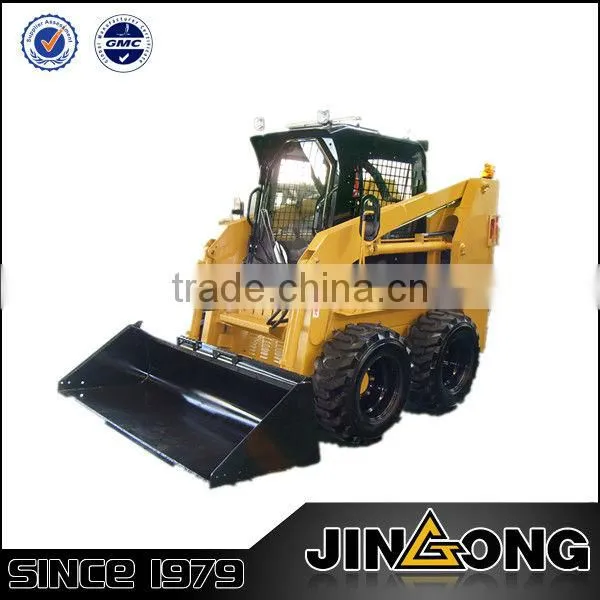

JC 65 small skid steer loaders/engine power 60hp/
loading capacity 850kg
LONGER WHEEL BASE
PERKINS ENGIN E(Ticr3/StageIIIA)
LOW NOISE DESIGN MAKES IT MUCH QUIETER
...
