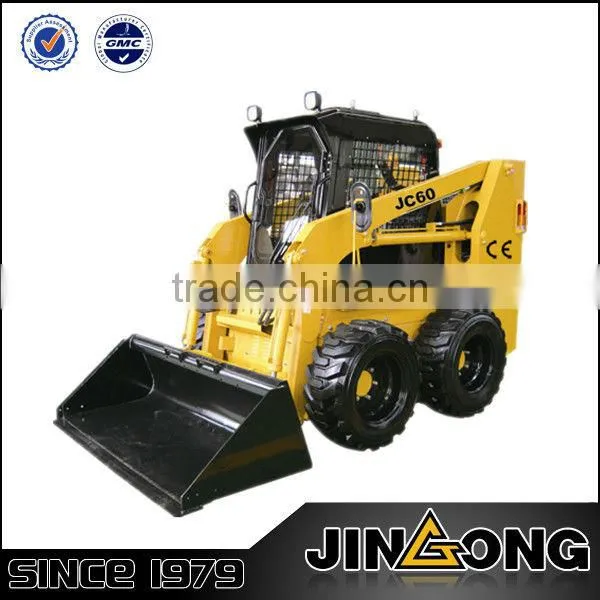

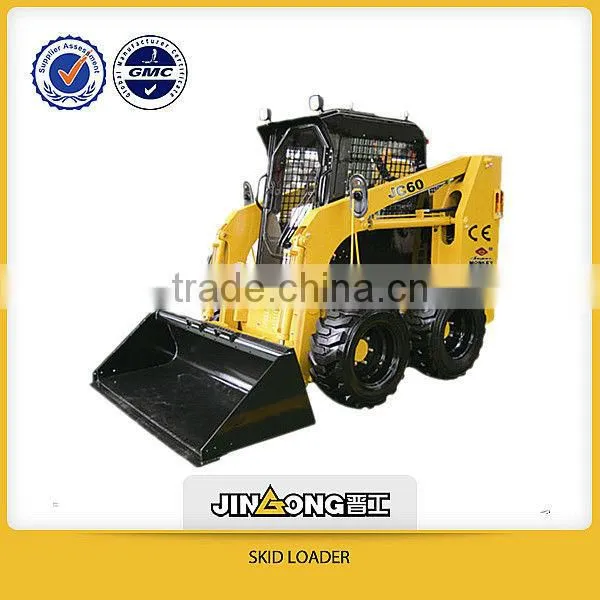

JC60 Loader With Lawm Mower Sweeper Various Attachments Tractor Loader Attachment

Specifications

Rated operating capacity(kg)

850

Tipping load(kg)

1700

Bucket capacity(m³)

0.4-0.5

Operationg weight(kg)

3000

Max. travel speed(km/h)

10

Hydraulic pump flow(L/min)

75

Fuel tank capacity(L)

60

Tires

12-16-15NHS

Overall dimensions(mm)

3380×1820×2050

Dimensions

Height at maximum extension(mm)

3690

Height to bucket hinge pin(mm)

2920

Width with bucket(mm)

1820

Track width(mm)

1500

Wheelbase(mm)

991

Ground clearance(mm)

205

Dump angle

40°

Dumping height(mm)

2330

Maxmium reach(mm)

710

Engine

Maker/Model

     DACHAI 498

Net power

60hp/2500rpm

Type

4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine

Displacement(L)

2.54

Standard

Open-type operator cab

Hand control system(Mechanical type)

Standard bucket

Auxiliary hydraulic couplers

Optional

Enclosed operator cab with A/C

Cab fitted with a heater as standard

Hydraulic joystick controls

Attachments:

Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More
