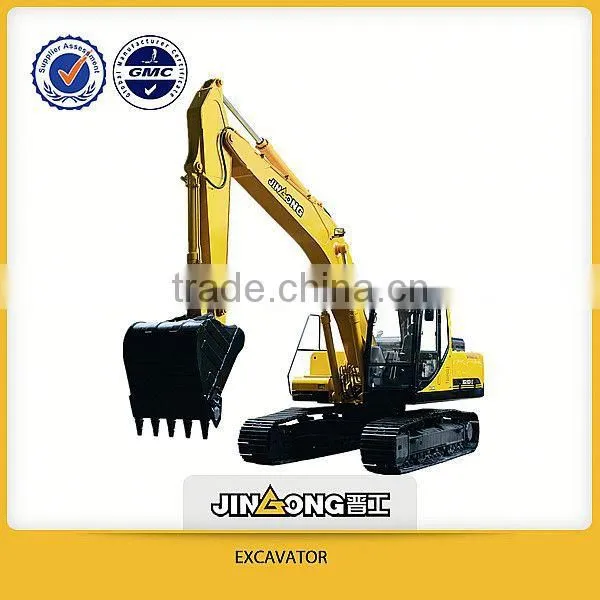

demolition excavator famous brand and new full hydraulic 23t excavator ( JGM923)
- 1900 Piece / Pieces per Month
- XIAMEN
- T/T L/C D/P D/A
- Used CAT 330D 320D2 crawler excavator CAT 320 CAT330D used excavators used cat 320D excavator
- Hot Selling Good Quality for the mini Used Excavator Doosan DH55 DX75 DX225 Second Hand Excavators/digger
- Cheap second-hand Japanese Carter 320d excavator second-hand Komatsu 20 ton excavator price PC200
- 0.8 ton mini excavator for sale
- Affordable and high-quality of the used CAT 330D 320D2 crawler excavator CAT 320 CAT330D excavators used cat 320D excavator
- 2 Ton Garden Excavator For Sale
Product Details
Place of Origin: | Fujian, China | Brand Name: | Jingong | Model Number: | JGM923 Crawler excavator demolition excavator |
Condition: | New | Moving Type: | Crawler Excavator | Operating Weight: | 22300KG |
Bucket capacity: | 1.1M3 | Maximum Digging Height: | 9388MM | Maximum Digging Depth: | 6758MM |
Machine Weight: | 22300KG | Max Digging Radius: | 9765MM | Rated Speed: | 3.4km/hr |
Certification: | ISO9001 | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
1)Original Cummins engine,125Kw2)New 23T Crawler Excavator
2)1.2CBM bucket
3)Operating weight:22.3Ton
4)A/C cab
Competitive Price China New 23T Crawler Excavator(JGM923Made In China)For Sale
Excavator parameters
Main Parameters | |
Operation Weight(Standard Configuration) (KN) | 22320 |
Standard Bucket Capacity | 1 |
Transport Dimensionsmm | 9600*2990*2840 |
Bucket Digging Force (KN) | 135 |
Bucket Rob Digging Force (KN) | 110 |
Maximum Torque | 697/1800 |
Device | |
High-low Speed (Km/h) | 6.15/3.4 |
Climbing Performance(°) | 30 |
Total Length of the Crawler | 4443 |
Tail Turning Radius (mm) | 3075 |
Width of the Crawler | 600 |
Ground Pressure (Kpa) | 44 |
Turning Mechanism | |
Turning Speed (rpm) | 11.8 |
Engine | |
Model | Cummins 6BTA5.9-C |
Form | Six Cylinders, Straight, Four Strokes, Direct Injection, Turbocharger, Air Inter Cooling |
Rated Power/Rotate Speed (KW/rpm) | 124/2000 |
Rated Torque/Rotate Speed (N.m/rpm) | 651/1500 |
Cylinder Diameter*Stroke (mm) | 102*120 |
Output Value (L) | 5.9 |
Fuel Consumption (g/KW.h) | 215 |
Hydraulic System | |
Fuel Tank Capacity (L) | 428 |
Main Valve Consumption(ML) | 112*2 |
Main Valve Pressure(MPA) | 34.3 |
Operating Scope | |
Maximum Digging Height (mm) | 9416 |
Standard equipment:
1. Engine (Original import Cummins 68TA5.9-C )
2. Hydraulic oil, oil (Shell or Mobil)
3. Main hydraulic pump (Original import Japan Kawasaki brand)
4. High energy maintenance-free battery (2×12V-120hA)
5.Main valve (Original import Japan Kawasaki brand)
6. Starter motor (24V-5kW)
7. Pilot control valve (Original import Japan Kawasaki brand)
8.Anti-swing during slewing
9. Slewing motor (Original import Japan Kawasaki brand)
10. Slewing priority
11.Travel motor (Original import Japan Kawasaki brand)
12. Travel straight retaining
13. Hydraulic oil cylinder (Original import Japan Kayaba )
14.Dual-speed shift automatically during
15. Hydraulic accessories (Manuli, Parker)
16. Heavy duty slewing support (sealed lubricaiton)
17.Track shoe (Italy)
18. Lifting hold
19.Electronic monitoring and operating system
20. Rearview mirror
21.Air conditioner for demolition excavator only
22.Standard working appliance
23.Standard bucket(1.1m3)
24.Advanced audio
25. Advanced Seats (Grammer)
26. Centralized lubrication
27.High quality radiating system made by joint venture enterprises
28. Ergonomically designed all-weather cab
29.Advanced imported paint
JGM923 Excavator in construction site
Our after sale service team
