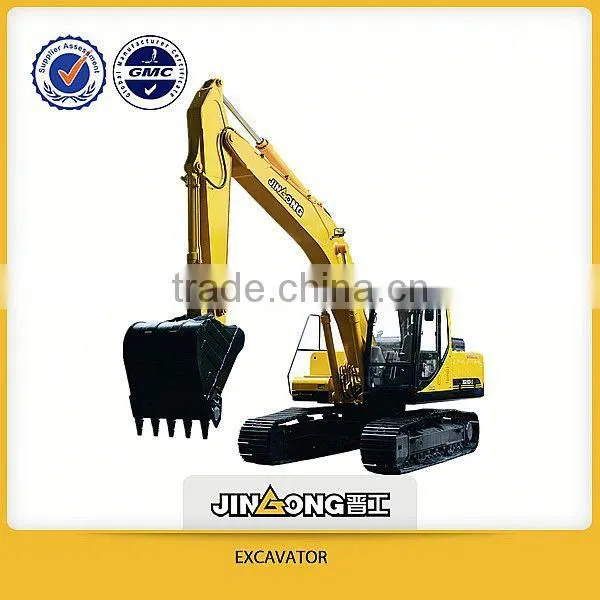

rc construction excavators famous brand and new full hydraulic 23t excavator ( JGM923)
- 1900 Piece / Pieces per Month
- XIAMEN
- T/T L/C D/P D/A
You May Like
-
slewing bearing for excavator famous brand and new full hydraulic 23t excavator ( JGM923)
-
5 ton excavator famous brand and new full hydraulic 23t excavator ( JGM923)
-
excavator specifications famous brand and new full hydraulic 23t excavator ( JGM923)
-
used volvo excavators for sale famous brand and new full hydraulic 23t excavator ( JGM923)
-
excavator jcb famous brand and new full hydraulic 23t excavator ( JGM923)
-
crawler excavators price famous brand and new full hydrauliJINGONG JGM923
Product Details
Place of Origin | Fujian, China | Brand Name | Jingong | |
Model Number | JGM923 Crawler excavator rc construction excavators | Condition | New | |
Moving Type | Crawler Excavator | Operating Weight | 22300KG | |
Bucket capacity | 1.1M3 | Maximum Digging Height | 9388MM | |
Maximum Digging Depth | 6758MM | Machine Weight | 22300KG | |
Max Digging Radius | 9765MM | Rated Speed | 3.4km/hr | |
Certification | ISO9001 | After-sales Service Provided | Overseas third-party support available |
Product Description
Competitive Price China New 23T Crawler Excavator(JGM923Made In China)For Sale
Excavator parameters
Main Parameters | |
Operation Weight(Standard Configuration) (KN) | 22320 |
Standard Bucket Capacity | 1 |
Transport Dimensionsmm | 9600*2990*2840 |
Bucket Digging Force (KN) | 135 |
Bucket Rob Digging Force (KN) | 110 |
Maximum Torque | 697/1800 |
Device | |
High-low Speed (Km/h) | 6.15/3.4 |
Climbing Performance(°) | 30 |
Total Length of the Crawler | 4443 |
Tail Turning Radius (mm) | 3075 |
Width of the Crawler | 600 |
Ground Pressure (Kpa) | 44 |
Turning Mechanism | |
Turning Speed (rpm) | 11.8 |
Engine | |
Model | Cummins 6BTA5.9-C |
Form | Six Cylinders, Straight, Four Strokes, Direct Injection, Turbocharger, Air Inter Cooling |
Rated Power/Rotate Speed (KW/rpm) | 124/2000 |
Rated Torque/Rotate Speed (N.m/rpm) | 651/1500 |
Cylinder Diameter*Stroke (mm) | 102*120 |
Output Value (L) | 5.9 |
Fuel Consumption (g/KW.h) | 215 |
Hydraulic System | |
Fuel Tank Capacity (L) | 428 |
Main Valve Consumption(ML) | 112*2 |
Main Valve Pressure(MPA) | 34.3 |
Operating Scope | |
Maximum Digging Height (mm) | 9416 |
Standard equipment:
1. Engine (Original import Cummins 68TA5.9-C )
2. Hydraulic oil, oil (Shell or Mobil)
3. Main hydraulic pump (Original import Japan Kawasaki brand)
4. High energy maintenance-free battery (2×12V-120hA)
5.Main valve (Original import Japan Kawasaki brand)
6. Starter motor (24V-5kW)
7. Pilot control valve (Original import Japan Kawasaki brand)
8.Anti-swing during slewing
9. Slewing motor (Original import Japan Kawasaki brand)
10. Slewing priority
11.Travel motor (Original import Japan Kawasaki brand)
12. Travel straight retaining
13. Hydraulic oil cylinder (Original import Japan Kayaba )
14.Dual-speed shift automatically during
15. Hydraulic accessories (Manuli, Parker)
16. Heavy duty slewing support (sealed lubricaiton)
17.Track shoe (Italy)
18. Lifting hold
19.Electronic monitoring and operating system
20. Rearview mirror
21.Air conditioner for rc construction excavators only
22.Standard working appliance
23.Standard bucket(1.1m3)
24.Advanced audio
25. Advanced Seats (Grammer)
26. Centralized lubrication
27.High quality radiating system made by joint venture enterprises
28. Ergonomically designed all-weather cab
29.Advanced imported paint
JGM923 Excavator in construction site
