Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > Mining Machine JinGong 15t Crawler Excavator With Cumins Engine( JGM915LC)

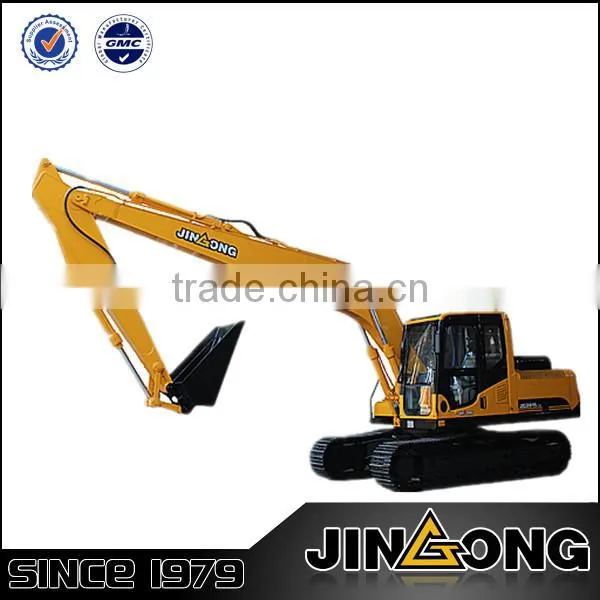

Mining Machine JinGong 15t Crawler Excavator With Cumins Engine( JGM915LC)

Name: Mining Machine JinGong 15t Crawler Excavator With Cumins Engine( JGM915LC)
Brand: JinGong
SKU: 141345046
Availability: InStock

Mining Machine JinGong 15t Crawler Excavator With Cumins Engine( JGM915LC) thumbnail-1

Mining Machine JinGong 15t Crawler Excavator With Cumins Engine( JGM915LC) photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

JinGong

Model Number:

JGM915LC

Contact Supplier Request Quote Chat Now

Fujian Jingong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

XIAMEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name JinGong

Model Number JGM915LC

Condition New

Moving Type Crawler Excavator

Operating Weight 13700kg

Bucket capacity 0.6m3

Maximum Digging Height 8455mm

Maximum Digging Depth 5785mm

Machine Weight 13700kg

Max Digging Radius 8455mm

Rated Speed 2200r/m, 2200r/m

Certification ISO

Performance Features

1. Strong and Energy-saving Power System
A. The product is matched with the original imported Cummins engine marked by strong power, stable performance, low fuel consumption, high working efficiency, environment protection and low noise.
B. Its cooling system has high working effect.
C. The electronic control system can sense the load situation of the hydraulic system to adjust the flow of the pump timely, making the engine operate with the optimum load speed for achieving fuel saving.
D. The multi-stage filtration for the fuel enhances the operating reliability of the engine under the bad working conditions, making the crawler excavator suitable for application in different regions.

2. Stable Quality, Flexible Movement and Fast Working Speed
A. By adopting the original imported main pump, the product has small power loss and fast working speed. The main pump can automatically adjust the hydraulic system according to the flow.
B. The product also takes usage of the original imported valve whose complex movement is optimized for high movement precision and long service lifetime, the original imported rotary motor, travel motor and speed reducer. It is endowed with the functions of starting buffer, hydraulic brake without abrasion and automatic parking brake.
C. The product shows the superior excavating force and climbing capability.

3. Professional Design for High Durability and Reliability
A. The reinforced working devices such as boom arm, dipper arm and bucket can guarantee large excavating force of the crawler excavator in bad working conditions.
B. The professional engine intake pipeline layout can reduce the unnecessary malfunction of the engine caused by the damage of the pipeline, thus bringing down the maintenance and use cost of customers.
C. The lower frame of the product is designed to be the lengthened type. The seven support wheels on single side make the lower frame more stable and reliable. Thus, the product won't tip over easily. It can cope with various bad site conditions.
D. The hydraulic elements and components as well as the hydraulic pipeline are imported or manufactured by high-level enterprises. They can serve stably and reliably under the condition of hydraulic oil pressure fluctuation.
E. Through the optimized design aiming to the heavy load working condition, the working device of the crawler excavator is fabricated with the local reinforcement and box-type strengthening methods for actualizing light weight, large strength and small deformation under heavy load condition.

4. Intelligent Operation and Display
A. The multifunctional LCD display device comes into service for monitoring the main components such as engine of the operating information for query at any time conveniently.
B. The functional switches are concentrated on the control board with the point contact buttons for easy option.
C. The hydraulic system adopts the hand pilot control to realize the control. It features high flexibility and quick action response. The power system works through the electronic control system controlling the power output range directly in line with the choice of the user, attaining light load for light work and heavy load for heavy work.
D. The electronic system of the crawler excavator can sense the load condition of the hydraulic system to make timely adjustment of the flow of the pump. Then, the engine runs with the optimum load speed to save the fuel.

Specification

Item		Parameter	Unit
Operating Weight		13700	kg
Bucket Capacity		0.52-0.6	m³
Engine	Model	Cummins 4BTAA3.9
	Rated Power at 2200rmp	86/2200	kW/rpm
	Max. Torque	447/1500	Nm/rpm
	Displacement	3.9	L
Performance Parameter	Traveling Speed (Low/High)	3.3/5.6	km/h
	Slewing Speed	13.8	rpm
	Standard Ground Pressure	41.5	Kpa
	Max. Excavating Force of Bucket	76.7	KN
	Max. Excavating Force of Dipper Arm	66.3	KN
Dimensions	A. Overall Length	7806	mm
	B. Total Width	2490	mm
	C. Boom Arm Top Height	2635	mm
	D. Width of Turntable	2470	mm
	E. Height of Cab Top	2812	mm
	F. Ground Clearance of Balance Weight	885	mm
	G. Balance Weight Top Height	1740	mm
	H. Min. Ground Clearance	430	mm
	I. Tail End Slewing Radius	2345	mm
	J. Wheel Base	3000	mm
	K. Track Length	3742	mm
	M. Track Gauge	1990	mm
	N. Standard Track Width	500	mm
Working Range	A. Max. Excavating Radius	8455	mm
	B. Max Excavating Depth	5785	mm
	C. Max. Excavating Height	8385	mm
	D. Max. Dumping Height	5585	mm
	E. Max. Ground Excavating Reach	8320	mm
Fuel Tank Capacity		266	L
Hydraulic Oil Tank Capacity		225	L
Coolant Capacity		32	L
Engine Lubricating Oil Capacity		16.5	L
Note: In pace with the technical progress, we would change the structure and parameters of the crawler excavator without prior notice. The actual product shall prevail in case the actual product is different from the abovementioned product in some way.
