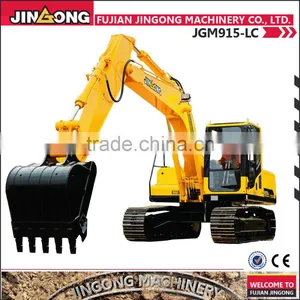

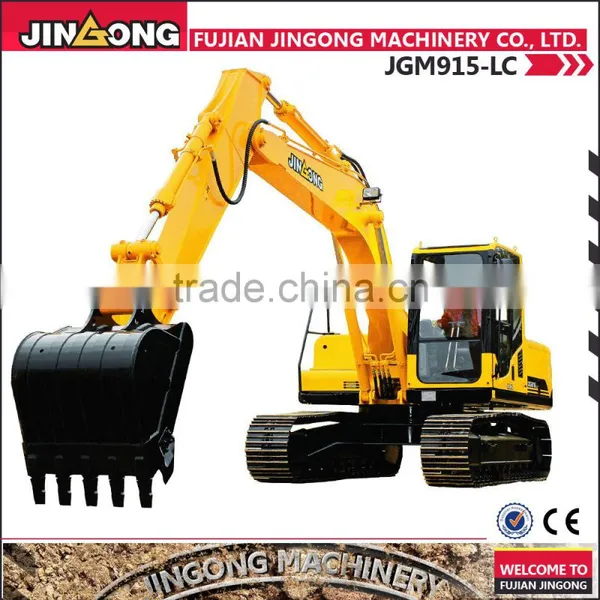

Mini China excavator 15ton(JGM915-LC ) construction machine
Items | Technical specs. | |
Overall weight | 22750 kg | |
Standard bucket capacity | 1.1 m³ | |
Overall length | 9600 mm | |
Overall Width (600mm track) | 2990 mm | |
Overall height | 2840 mm | |
Slewing table width | 2710 mm | |
Cab roof height (to the ground) | 2940 mm | |
Counterweight height | 1083 mm | |
Min. ground clearance | 465 mm | |
Length of the rear part of the slewing table | 2960 mm | |
Wheel track | 3650 mm | |
Chassis length | 4443 mm | |
Track gauge | 2390 mm | |
Standard track width | 600 mm | |
Travel speed (low/high) | 3.4/6.15 | |
Slewing speed | 11.8 | |
Ground pressure | 44 | |
Max. digging force | 10000 |
Max. digging depth | 6758 |
Max. digging height | 9388 |
Max. dump height | 6430 |
Digging radius on parking surface | 9765 |
Max. digging force of the arm | 110 |
Max. digging force of the bucket | 135 |
Standard equipment:
l Engine (Original import Cummins 68TA5.9-C )
l Hydraulic oil, oil (Shell or Mobil)
l Main hydraulic pump (Original import Japan Kawasaki brand)
l High energy maintenance-free battery (2×12V-120hA)
l Main valve (Original import Japan Kawasaki brand)
l Starter motor (24V-5kW)
l Pilot control valve (Original import Japan Kawasaki brand)
l Anti-swing during slewing
l Slewing motor (Original import Japan Kawasaki brand)
l Slewing priority
l Travel motor (Original import Japan Kawasaki brand)
l Travel straight retaining
l Hydraulic oil cylinder (Original import Japan Kayaba )
l Dual-speed shift automatically during
l Hydraulic accessories (Manuli, Parker)
l Heavy duty slewing support (sealed lubrication)
l Track shoe (Italy)
l Lifting hold
l Electronic monitoring and operating system
l Rearview mirror
l Air conditioner for excavator only
l Standard working appliance
l Standard bucket(1.1m3)
l Advanced audio
l Advanced Seats (Grammer)
l Centralized lubrication
l High quality radiating system made by joint venture enterprises
l Ergonomically designed all-weather cab
l Advanced imported paint
Optional equipment:
Different buckets, Soosan breaker and various optional equipments
1.Brand-name hydraulic elements and imported working pump,master control valves,traveling driving assembly and various pilot valves constitute the hydraulic system,which is characterized by high reliability as well as stable,fast and easy operation.
2.The four-stroke cumins 4BTAA3.9 engine featuring with turbo charging is characterized by stong power,high reliability,high economy and low pollution exhaust,which easily satisfies the second phase of emission standards and relevant environment protection requirments while guaranteeing excellent power performance.Its unique cooling mode ensures even distribution of temperature and proper operation of your equipment even in the hot summer weather.
3.The equuipment boasts superior traction,ensuring reliable and stable traveling of excavator.
4.If there is no operation within 3seconds,the automatic idle speed function will reduce the engine speed to the minimum; in this way,the driver can wait for the truck in a quiet environment while the fuel consumption is reduced.Any operation that follows will trigger the engine to restore to the original speed .To keep the engine running at full speed all the time ,just push the cancel switch to diaable the function.
Generally,the electronic operation system is teouble free.However,just in case of any accident,an emergent operation mode is provided to ensure proper operation.
5.Advanced design as well as the high-quality and solid materials enables the JGM913-LC excavator to satisfy various type of overloading and operation requirements.
6.Spacious cab with wider view-field.
7.Air conditions keeps the cab warm and comfortable.
8.The multi-functional electronic monitoring display enables real-time tracking and display of the working status of the excavator,and records and diagnoses the fashion.General excavators are provided with 3 or 4 power modes for selection,thus providing more accurate and fuel-saving power control.Each mode is designed with system pressure ,moreover,fine tuning for for each is also available.The electronically controlled system has provided good work efficiency with economic fuel consumption.During operation,it is possible to choose a suitable power mode based on operation conditions.
What about your products quality?
A: Win with reliability! We are top 10 of China Construction machinery manufacturers for wheel loader, top 1 of China
construction machinery manufacturers for forklift loader .From numerous comparison and feedbacks from clients,
quality is more better than some factories.
How to guarantee customers get the goods smoothy after they pay?
A:Don’t worry, dear.we joined the trade assurance.you can place the order by trade assurance.the deposit will given
to Alibaba.If we don’t delivery products on time, the deposit will return to you.
What’s the delivery time?
Generally,for the standard orders,the delivery time is within 15 working days after receiving your advance payment.
Which payment terms can we accept?
Normally we can work on T/T term or L/C term, sometime DP term.
On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against
the copy of original B/L for old client.
On L/C term, a 100% irrevocable L/C without “soft clauses” can be accepted. Please seek the advice from the individual
sales manager whom you work with.
Which INCORTERMS 2010 terms can we work?
JINGONG is a professional and sophisticated international player, can handle all INCORTERMS 2010 terms, and we
normally work on FOB, CFR, CIF, CIP, DAP.
How long will our price be valid?
We are a friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only
adjust our price based on two situations:
The rate of USD: RMB varies significantly according to the international currency exchange rates.
Manufacturers adjusted the machine price, because of the increasing labor cost, and raw material cost.
What logistics ways we can work for shipment?
We can ship construction machinery by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania
and Europe, either by container or RoRo/Bulk shipment.
For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc, we can ship generator set
and engines by road or railway.
For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
After—sales services
1. Spare parts: JINGONG is dedicated to provide our clients with spare parts with highest quality, exact fitness and
appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services. Please
submit your spare request to us, and list products name, model, equipment serial number, description of required parts.
We guarantee that your request will be handled quickly and appropriately.
2. Training: JINGONG offer perfect facilities and comfortable environment and can provide training services to different
users. The training sessions include product training , operating training , maintenance know-how, technical know-how
training , standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs.
Training programs can be conducted in our factory field, or at the client’s site.
3. Technical Advice: JINGONG can also help clients coordinate with trained service personnel to provide you detailed and
extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly
prolonged and sustained with high capicity.
