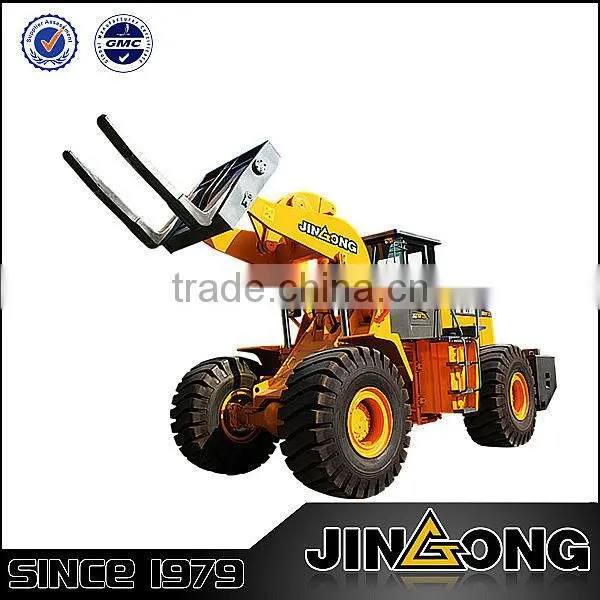

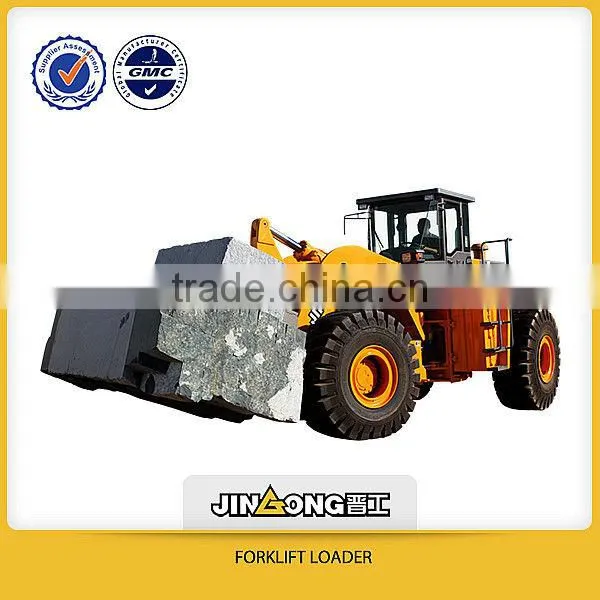

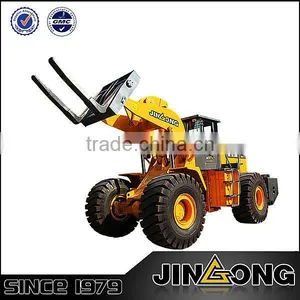

JGM761FT25 Stone Forklift Loader
Main specification
| Operating weight | 26500kg |
| Max. load | 25000kg |
| Max. climbing angle | 23 degree |
| Fork dimenstions | 1500*1265mm |
| overall dimentions | 8535*3050*3525mm |
| Min. turn radius | 8000mm |
| Fuel tank | 220L |
| Hydraulic oil tank capacity | 270L |
Engine
| Model | WD615 |
| Type | Inline diesel engine turbo charged, 4-stroke direct-injection |
| Rated power | 162KW |
| Rated speed | 2200r/min |
Torque converter and Transmission
| Torque converter type | Single-phase 4-element (twin-turbine) |
| Transmission type | Plantery hydraulic shift |
| Gear shift | 2 Forwards 1 Reverse |
Tyre
| Type | Four-wheel driving |
| Tyre type | 26.5-25 |
| Tyre pressure | Rear tyre: 0.475Mpa Front tyre: 0.65Mpa |
Brake System
| Service brake | Air over hydraulic disc brake |
| Parking brake | Flexible-shaft-operated disc-clamp-type brake |
Optional equipment:
Bucket
Protect chain
Air conditioner
Expert for shoveling and loading of rock and quarry stone
Features:
1.Four-element dual-turbine torque convert and continuosly variable transmission enable powerful traction and stable starting.
2.Four-wheel driving,articulated steering,big-diameter engineering tires,featuring super off-road performance and flexible steering abilibity ,big groud clearance of chassis,being suitable for various complicated working conditions.
3.Power gearshift,that is highly flexible,easy and convenient.
4.Disc brake ensures safe and reliable operation.
5.Z-bar linkage mechanism,offer big lifting force in the range from ground to 1.5m high.
6.The cab featuring spacious view and noise reduction*vibration isolation;good operation environment.
7.761 can be equiped with special bucket.
....
