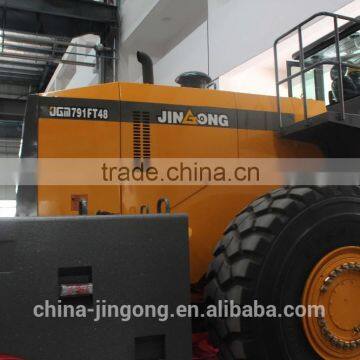

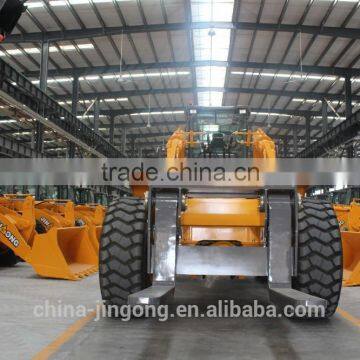

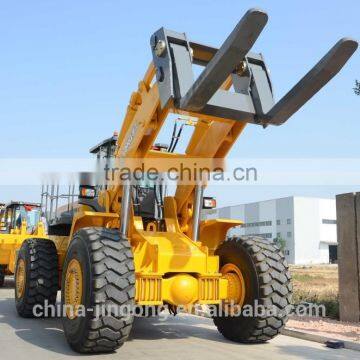

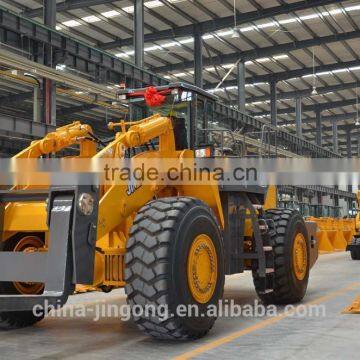

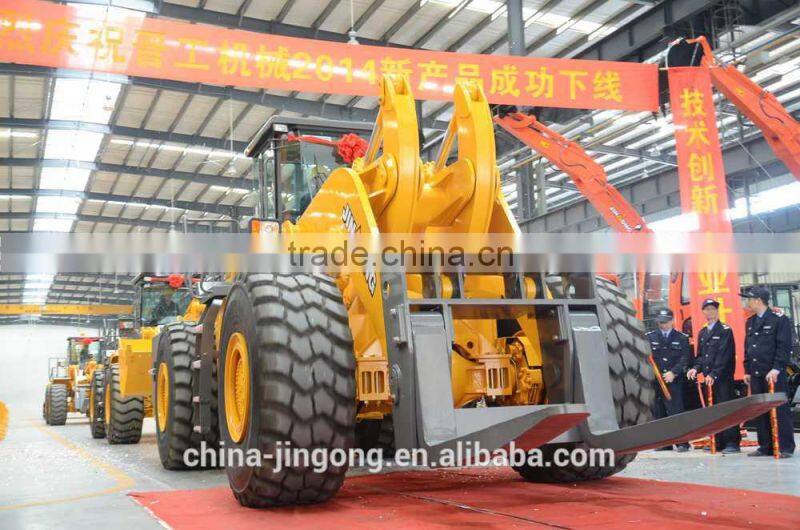

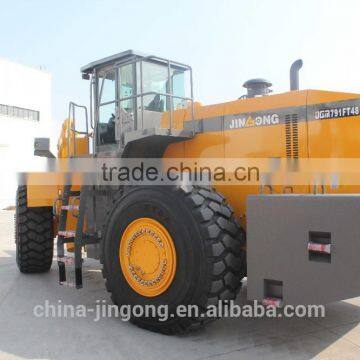

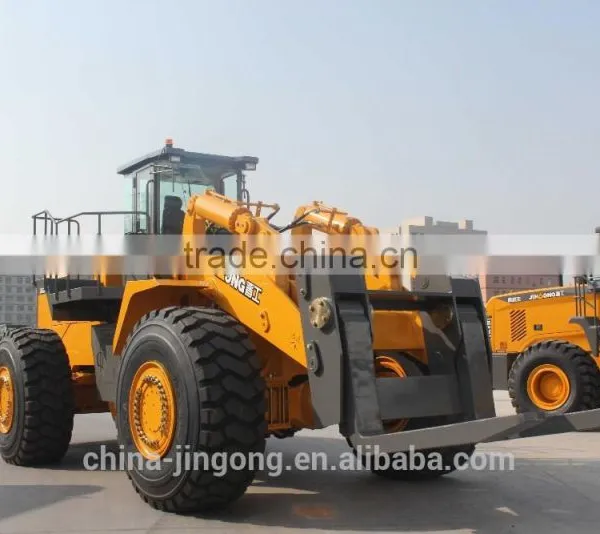

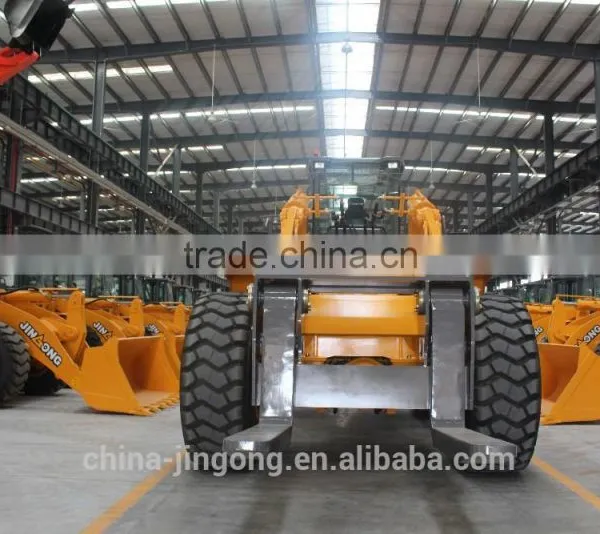

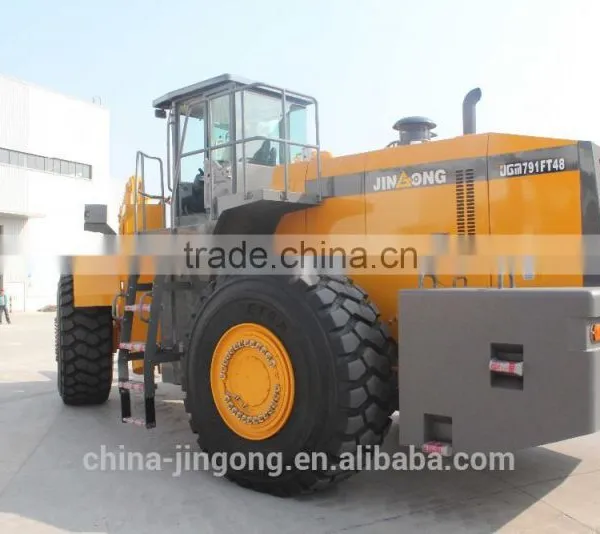

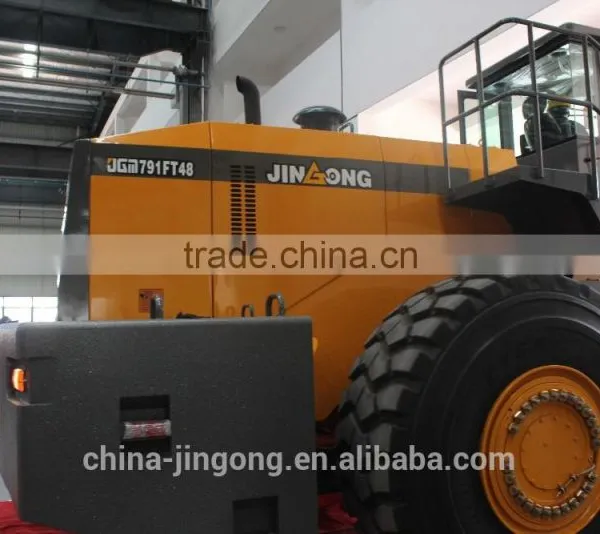

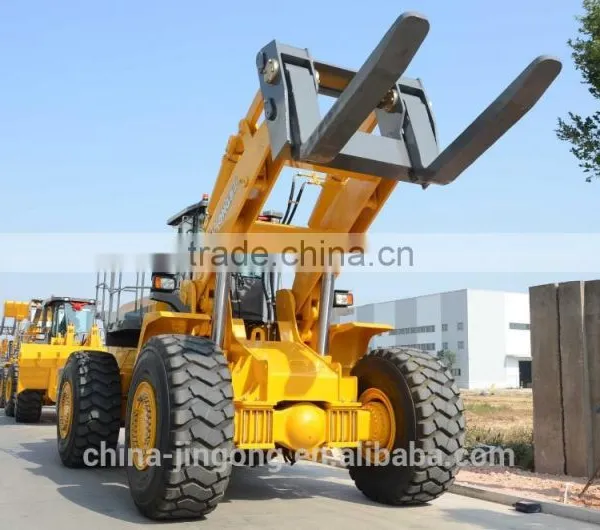

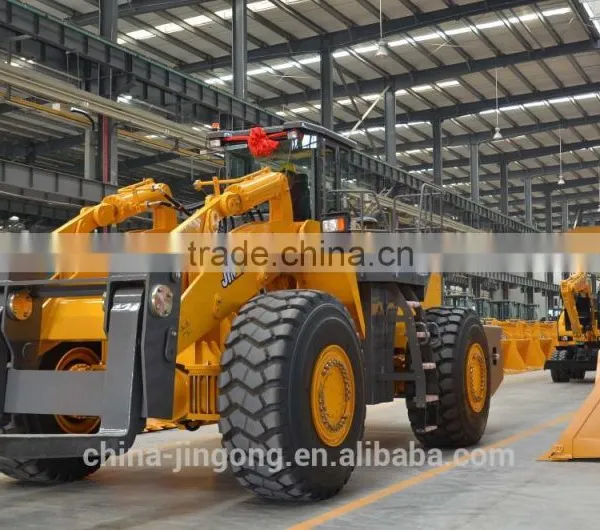

48ton telehandler loader JGM791FT48
Main specification
| Operating weight | 52000kg |
| Max. load | 48000kg |
| Max. climbing angle | 22 degree |

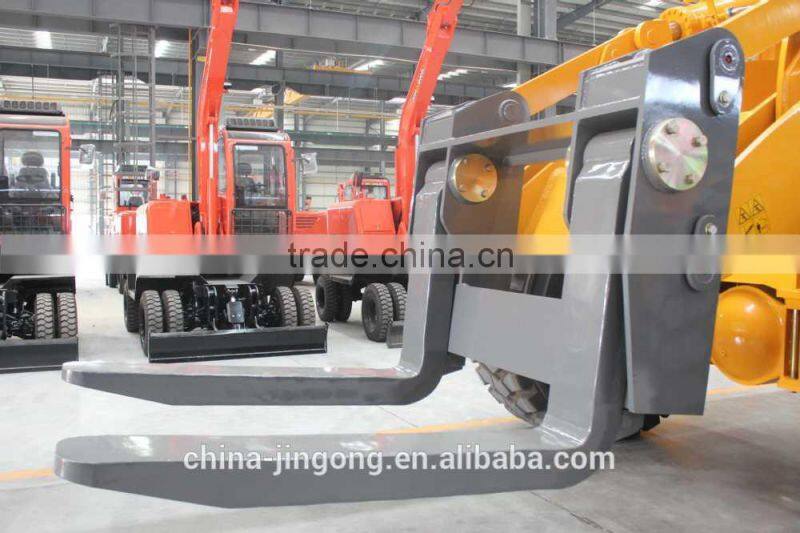

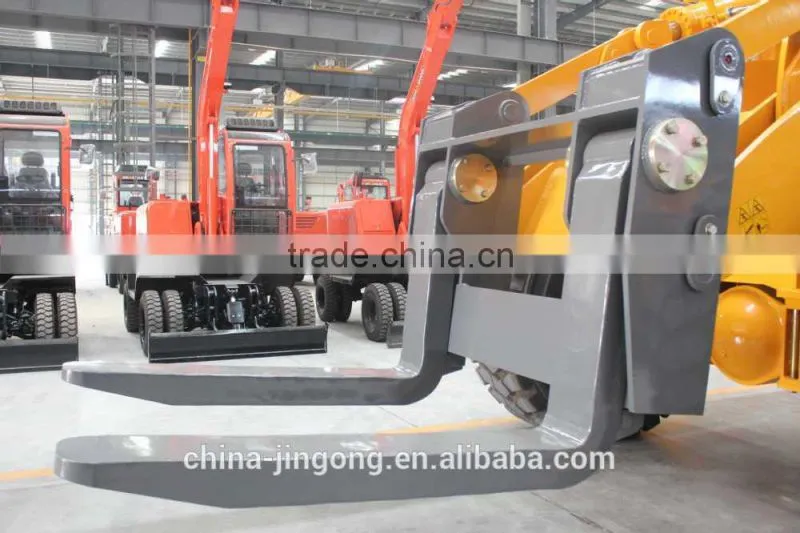

| Fork dimenstions | 1800*280*155mm |
| overall dimenstions | 10660*3650*4015mm |
| Min. turn radius | 10038mm |
| Fuel tank | 220L |
| Hydraulic oil tank capacity | 270L |
Engine
| Model | Weichai DHD12G |
| Type | Inline diesel engine turbo charged, 4-stroke direct-injection |
| Rated power | 276KW |
| Rated speed | 2200r/min |
Torque converter and Transmission
| Torque converter type | Single-phase 4-element (twin-turbine) |
| Transmission type | Plantery hydraulic shift |
| Gear shift | 2 Forwards 1 Reverse |
Tyre
| Type | Four-wheel driving |
| Tyre type | 29.5R 29 three star steel tyres |
| Tyre pressure | Rear tyre: 0.475Mpa Front tyre: 0.65Mpa |
Brake System
| Service brake | Air over hydraulic disc brake |
| Parking brake | Flexible-shaft-operated disc-clamp-type brake |
Optional equipment:
Bucket
Protect chain
Air conditioner
Expert for shoveling and loading of rock and quarry stone
Features:
1. Strong power engine (375HP) of international famous brand, and electro hydraulic shift fixed shaft type gear box, with great tractive force and strong climbing capacity.
2. The exclusive wet brake driving axle of Jingong Proprietary Technology for the large ton forklift loader with great loading capacity (the static load capacity of single axle is 11000kg); wet braking with great brake torque, and independent cooling system to make sure the braking performance of the machine.
3. Fully dual way hydraulic driving and emergency parking brake system of Jingong Proprietary
4. Jingong unique working device with eight connecting rods, the vertical arrangement of boom cylinder, with great lifting force and breakout force, the boom arm of double plate box structure with great anti –torque capacity, lifting stably with good view sight.
