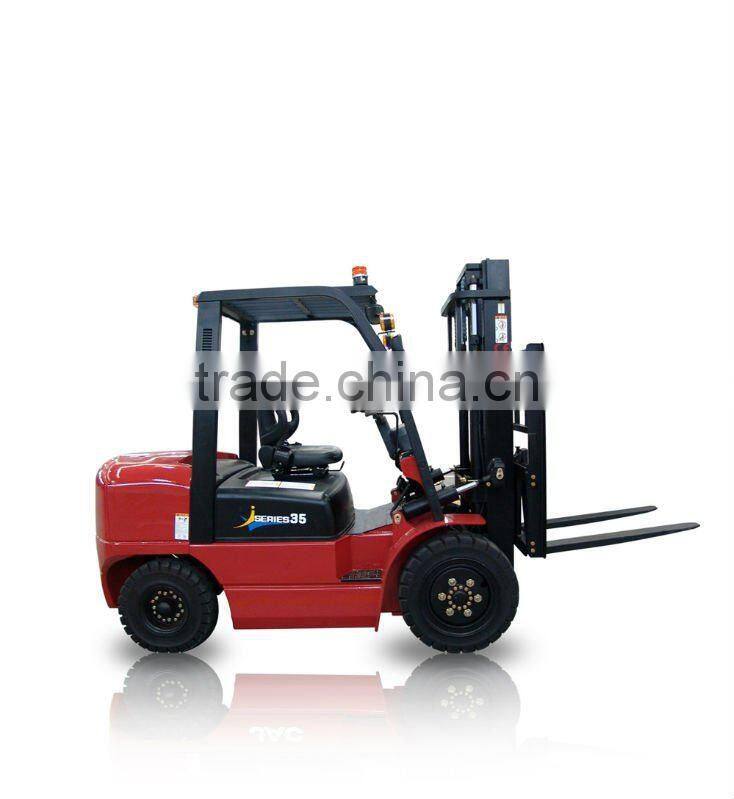

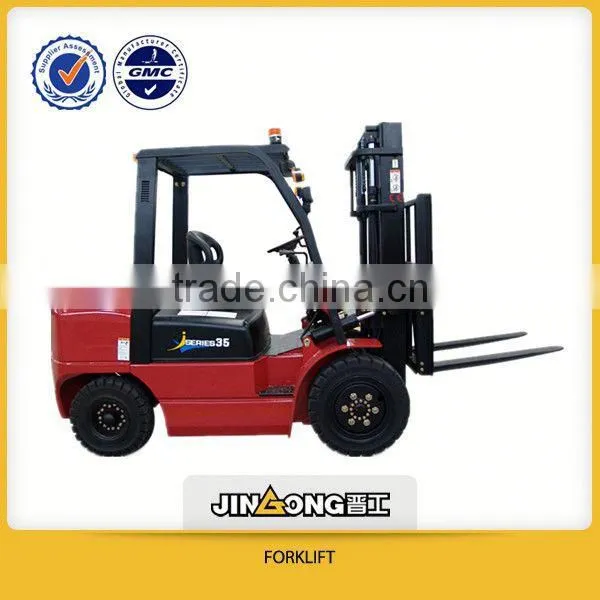

Good Quality Small Manual Diesel Forklift 3.5 Ton CPCD35 With CE Machine

Name: Good Quality Small Manual Diesel Forklift 3.5 Ton CPCD35 With CE Machine
Brand: JINGONG
SKU: 141344802
Availability: InStock

US$ 11,588 - 16,985 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Fujian, China

Brand Name:

JINGONG

Fujian Jingong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Fujian, China

Brand Name JINGONG

Model Number CPCD35

Type Manual Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 3500kg

Max. Lifting Height 3000mm

Min. Lifting Height 240mm

Fork Length 1070

Fork Width 130

Certification CE

Model				CPCD35	CPC35
Load Capaciry			kg	3500	3500
Load Center			mm	500	500
Mast Lifting Height			mm	3000	3000
Free Lift			mm	240	240
Tillifing Angles (Front/Rear )				6°/12°
Speed	Max Driving Speed	With Load	km/h	19.5
		Without Load	km/h	20
	Go up	With Load	mm/s	500
		Without Load	mm/s	530
	Drop	With Load	mm/s	550
		Without Load	mm/s	540
Max Drawbar Pulll (With Load/Without Load )			kg	1530/876

Max Gradeability (With Load/Without Load )			%(fan)	20
Min. Turning Radius			mm	2420
Exterior Size	Overhead Length	without fork	mm	2745
		with fork	mm	3815
	Overhead Width	Outboard	mm	1225
		Frame	mm	1150
	Height	Mast drop	mm	2055
		Front-wheel Overhead	mm	2070
		Max. lift	mm	4240
Tire	Specs	Fornt		28x9-15-12PR
		Back		6.50-10-10PR
Wheelbase			mm	1700
Tread		Fornt	mm	1000
		Back	mm	970
Turning Radius	Low-water mark(mast)		mm	110
	Frame		mm	115
Overhang (front)			mm	498
Overhang (back)			mm	495
Min intersecting aisle			mm	2120
Engine	Model			XINCHANG engine 495BPG
	Rated Output		kw/rpm	42/2650
	Rating Torque		N.m/rpm	174/2000
	Number or Cylinder			4
Inside cab seat height			mm	1005
Operation weight			kg	4790
Fork Size(LWT)			mm	1070x130x45
Warranty: 6 months or 1200hours
