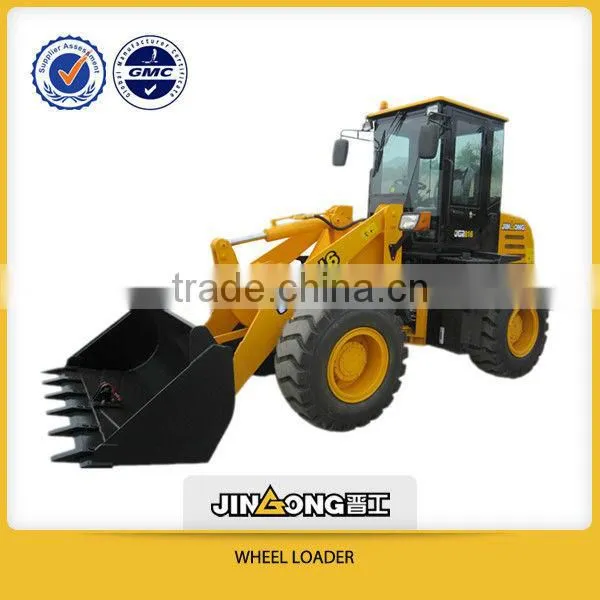

strong Jingong used good small mini loader 1.6 ton zl16

·loader Specification

Bucket type

Excavating

Rated load

1.6T

Bucket capacity, heaped

1.0m³

Dump clearance &full lift & 45 discharge

2630mm

Reach& full lift &45 discharge

890mm

Digging depth(bucket lean forwards 10°)

269mm

Overall length

5860mm

Overall height

2800mm

Overall width

1950mm

Width over tires

1900mm

Loader clearance radius
(Bucket in carry position)

10460mm

Operation weight

5.6T

Vehicle speed

Forward 1

0~9 Km/h

Forward 2

0~22 Km/h

Reverse

0~9 Km/h

Reverse

0~22 Km/h

Time of raise

5.5s

Hydraulic cycle time

10s

·Optional equipment

·Standard equipment

1. Quenched integral cutting edge bucket
2.ROPS (Roller Protective Structure)
3.Air Conditioning System-Cool Wind Type, Warm Wind Type, Cool& Warm Type. Various implements(Varieties of Loader)
Log Loader, Side-dump Loader, High-dump Loader
4.Luotuo Diesel Engine LR4108G84A
55KW/2400rpm

WEICHAI ZH4000G2-5A Diesel Engine 44KW/2400rpm
Single-turbine hydraulic converter and fixed shaft transmission
Fetching driving axle
Duplex valve: lift arm and bucket
Lift cylinder and tilt cylinder
Standard lift arm, standard bucket
Adjustable seat
Disc-type parking brake
2X12V
Battery 2X12V
Alternator 28v,750W
Start-up motor 24V,4.2KW
