8 Inch Jet Suction Sand Dredger Price

FOB Price

US$ 15,000 - 60,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cutter Suction Dredger
Power Type	Diesel	Dredging Depth	15 m
Draught	100 cm	Place of Origin	Shandong, China
Brand Name	YONGDELI	Model Number	YLJSD-250
Dimension(LWH)	24m5.5m1.5m	Weight	42 tons
Certification	ISO9001:2008	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

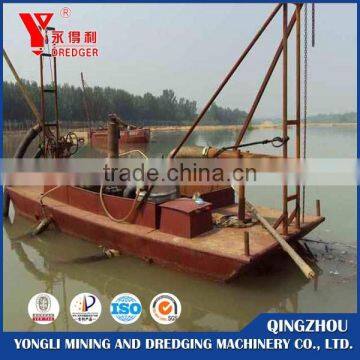

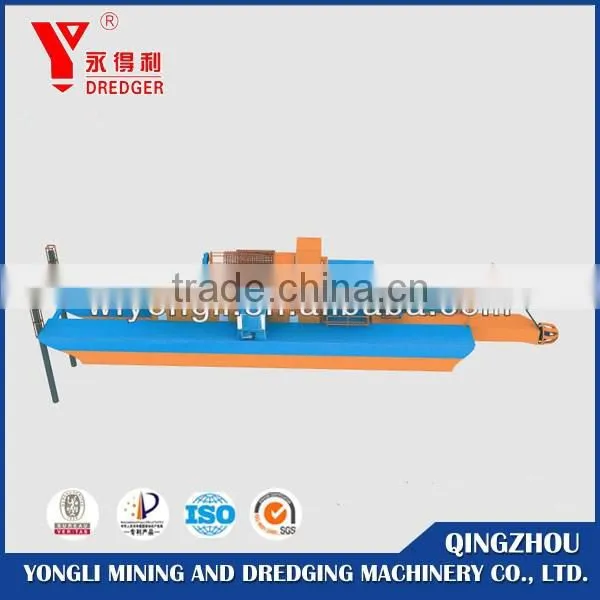

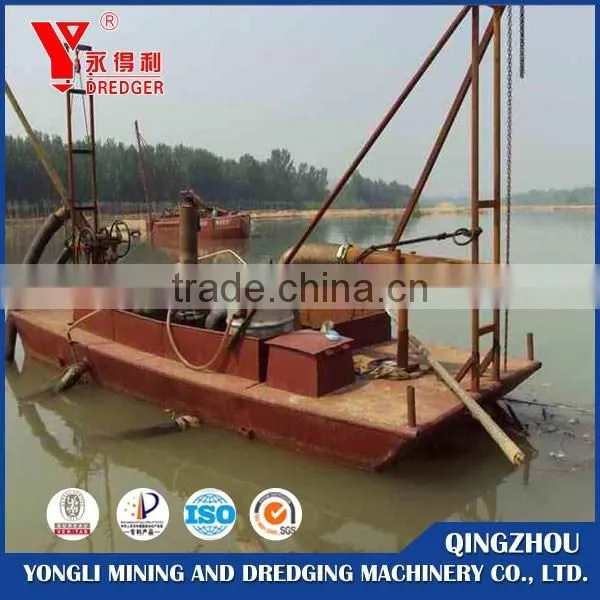

8 inch jet suction sand dredger

1.Brief Introduction

Jet suction dredger is applied for inland waterways, lakes and coastal areas where sand layer is soft for dredging work.
The high pressure water jet will break the sand layer first, then sand pump will suck up the solids and discharge then onshore or to the transportation boat.
Customized according to dredging depth, working capacity and discharge distance.
Main diesel engine provides power to sand dredging pump and auxiliary diesel electricity generator supplies electricity to high pressure water pump, winches and lighting system.

2.Technical Specification

NO.	Item	Specifications	Remarks
1	Dimension(LWH)	24m5.5m1.5m
2	Jet suction water pipe	3.5m
3	Dredging depth	15m
4	Sand output	150-200m3/h
5	Discharge distance	250m
6	Sand suction pump	10”/8”	origin:Guangzhou
7	Water jet pump	6”/6”
8	Main engine	WD615.46C-1	origin: Weifang
9	Auxiliary power	40KW	Single cylinder diesel engine
10	Under water tap windlass	speed reducer model	500
11	swing winch(2 sets)	speed reducer model	350
12	Total power	300kw
13	Diesel consumption	38kg/h
14	Total weight	42 tons

3.Our company and certificates

4.Our principles and services

1. Yongli company sings a long-time after-sale service agreement with customers.

2. We provide rational and practical design according to customers' request.

3. We send engineers to assemble and test the machine within the period as agreed in the contract.

4. Within warranty period, we provide free repair if quality problems emerge.

5. We provide free training of operation and maintenance for customers.

6.We supply high quality accessories in low price.

7. We make an excellent filing of customers for long-term following-up service.

5.Customers visit

FAQ

In order to provide you with suitable quotation and assistance for you, please kindly reply the following question:

1) Output capacity(m3/h)

2) Max.dredging depth(m)

3) Discharge distance(m)
