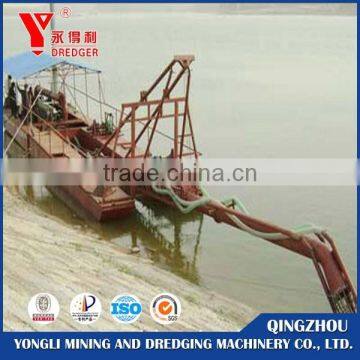

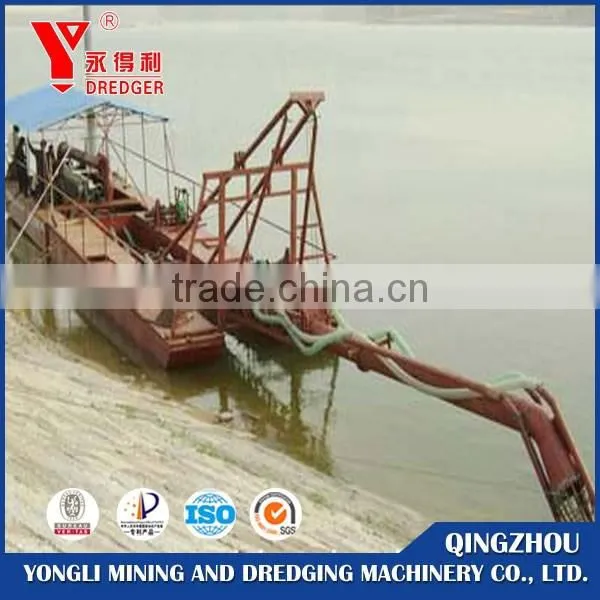

Low price jet suction sand dredger
1.Brief Introduction
- Jet suction dredger is applied for inland waterways, lakes and coastal areas where sand layer is soft for dredging work.
- The high pressure water jet will break the sand layer first, then sand pump will suck up the solids and discharge then onshore or to the transportation boat.
- Customized according to dredging depth, working capacity and discharge distance.
- Main diesel engine provides power to sand dredging pump and auxiliary diesel electricity generator supplies electricity to high pressure water pump, winches and lighting system.
2.Technical Specification
NO. |
Item |
Specifications |
Remarks |
1 |
Dimension(L*W*H) |
24m*5.5m*1.5m |
|
2 |
Jet suction water pipe |
3.5m |
|
3 |
Dredging depth |
15m |
|
4 |
Sand output |
150 -200m3/h |
|
5 |
Discharge distance |
250m |
|
6 |
Sand suction pump |
10”/8” |
origin: Guangzhou |
7 |
Injection pump |
6”/6” |
|
8 |
Main engine |
WD615.46C-1 |
origin: Weifang |
10 |
Under water tap windlass |
speed reducer model |
500 |
11 |
Swing winch (2 sets) |
speed reducer model |
350 |
12 |
Total power |
300kw |
|
13 |
Disel consumption |
38KG/H | |
14 |
Total Weight |
42 tons |
|
3.Our company and certificates
4.Our principles and services
5.Customer Visit
In order to provide you with efficient & suitable quotation and assistance for you, please kindly tell me the following information:
1) Output capacity(m3/h)
2) Max.dredging depth(m)
3) Discharge distance(m)
