High recovery gold shaking sluice
gold shaking sluice, also name gold instigating sluice box
1. Description of high recovery gold shaking sluice
The gold shaking sluice, also called instigating sluice box, or pulsating sluice box, is a kind of gravity concentrator for gold, rare metal and metalic minerals. As it is a kind of gravity separator applying the principle of specific gravity between sand and minerals, it is totally environmentally friendly to the environment.
...................................................................................................................................................................................................................................................................................
YONGDELI brand gold shaking sluice is powered by electric motor, the voltage of which could be customized according to customers' industrial electric voltage. There is a set of instigating mechanism which can move the rubber plate between the riffle and the instigating mechanism. So when the slurry flushes on the sluice box, the lighter sand and silt will be washed away by water, and the heavy gold sand will fall down and stay on the rubber plate.
...................................................................................................................................................................................................................................................................................
What's more, the small holes on the riffles will form small vortexes which help to let the heavy minerals like gold fall. Our gold shaking sluice is very easier to operate and much cheaper than the centrifugal concentrator. It is less restricted by the terrain but much more efficient than the normal sluices with gold capturing carpet.
...................................................................................................................................................................................................................................................................................
Our gold shaker table is also designed for anti-theft purpose. The steel wire above it could prevent the loss of gold concentrates to some extent.
2. Technical parameter for gold shaking sluice
Item | Dimension | Feeding Size | Power | Recovery rate | Water consumption |
Gold shaking sluice | 3.2m*1.25m*0.80m | Under 8mm | 1.5kw | 80% to 85% | 50m3 per hour |
Gold shaking sluice equiped with placer trommel gold washing plant
Gold shaking sluice used with gold and iron washing plant.

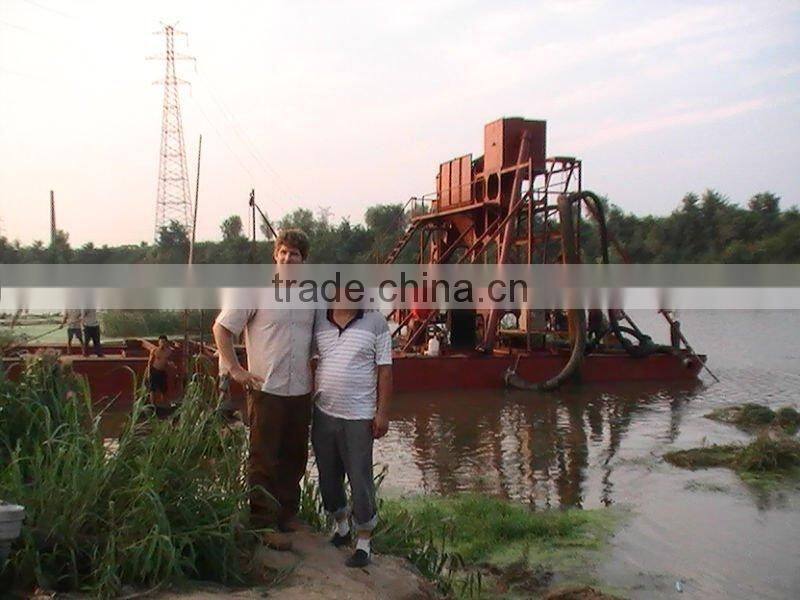

Gold shaking sluice used on dredger. This is field test before shipping.
Specification for final gold concentrating--6-s gold shaker table
Item | Coarse sand surface of table | Fine sand surface of table | Ore slime surface of table | |
Dimension | Length (mm) | 4450 | 4450 | 4450 |
| Transmission end width (mm) | 1855 | 1855 | 1855 |
| crude ore width (mm) | 1546 | 1546 | 1546 |
Max. feeding size (mm) | 2 | 0.5 | 0.15 | |
Feed amount (t/h) | 30-60 | 10-20 | 15-25 | |
Feed density (%) | 25-30 | 20-25 | 15-25 | |
Stroke (mm) | 16-22 | 11-16 | 8-16 | |
Frequency ( f) | 45-48 | 48-53 | 50-57 | |
Water quantity added(t/h) | 80-150 | 30-60 | 10-17 | |
Horizontal obliquity (°) | 2°30′-4°30′ | 1°30′-3°30′ | 1°-2° | |
Cross-section Shape of table | Rectangular | Saw tooth | triangle | |
Motor Power (kw) | 1.1 | 1.1 | 1.1 | |
Transmission Mechanism | Eccentric linkage | |||
Welcome to contact us for most suitable gold mining solution!
