Gold mining plant
1. Introduction to gold mining plant
The gold mining plant is compose of vibrating sluice box , classifier and jigger . high efficency , easy operation , the calssifier is on the top and can seperator gravels by 4mm mesh inside ,we put one vibrating sluice box below each the classifier . In the middle there is a jigging machine which can get gold and diamond . we test it in our local river , if you feel interest , welcome to consult us more details , we can show you its video.
2. Main parameter for gold mining plant
NO |
Item |
Specification |
Remarks |
|
1 Size |
Overall Length: |
15m |
|
Hull Length |
10m |
||
Hull Width |
6.3m |
||
Hull Depth |
1.25m |
||
Draft Loaded |
About 0.8m |
||
|
2 Capacity |
Max.Dredging Depth |
10m |
|
Tailings Discharge Distance |
5m |
||
Suction/Discharge Pipe Diameter |
150mm |
||
Water Flow |
500m3/h |
||
Sand Output |
150 m3/h |
||
|
3 Diesel Electricity Generator |
Model |
R4105ZD |
Chinese Brand(Weichai) |
Power |
50KW |
||
Revolution Speed |
1500rpm |
||
|
4 Dredging Pump
|
Type |
8/6F-G |
2 sets |
Water Flow(Q) |
250m3/h |
Total 500m3/h |
|
Pump Lift(H) |
10m |
||
Revolution Speed(n) |
1500r/min |

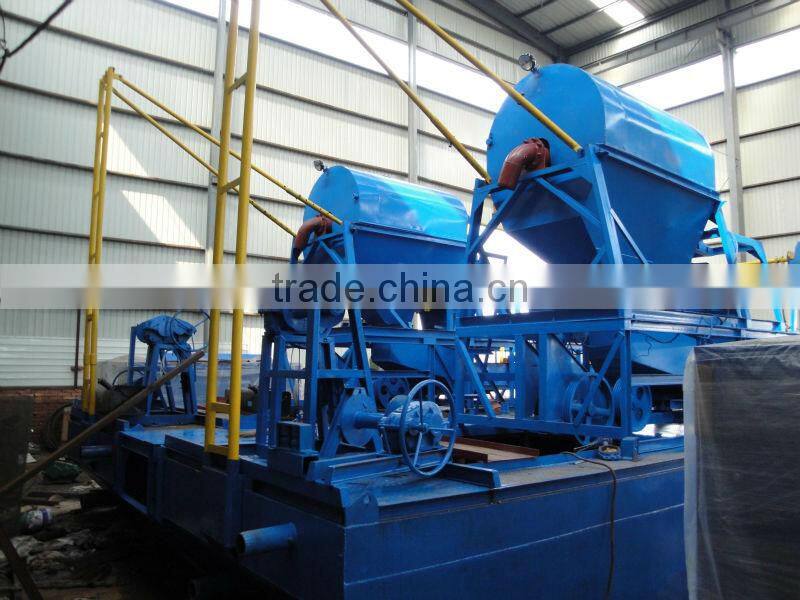

Gold mining plant
Testing of gold mining plant in river
Welcome to contact us directly for more information!!!
