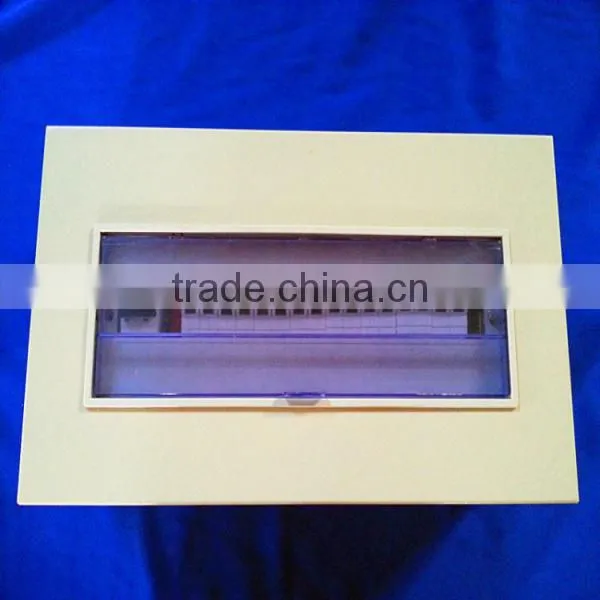

distribution board
| Rated Voltage:AC380V,AC220V Max Rated Current:100A Rated insulation voltage: 500V Protection Dgree: IP30 Frequency: 50HZ Short Time Withstand Current: 6KA |
Specifications and features of distribution board :
1) High impact resistance material
2) Transparent covering
3) Surface and flush mountings available
4) Plenty of space for smooth and easy wiring
5)Single or double row of copper
Advantage
1) Close connection
Neutral wice line bank and earthing wire line bank both adopt close type with a steady overall structure, which makes inside wiring more esthetical and safer,
2) Ultra-large space
Wider space to house wires allows wiring inside case body and electrical safety distance between each wire and makes operation safer and more comfortable.
3) Clear identification
The independent and legible circuit break control circuit chart makes circuit framework clear and definite and facilitates the connection,seeking and maintenance of all circuits
4) Easy adjustment
With innovative adjusting function , the Distribution box can be self adjusted in installation depth direction within a certain distance apart from external wall,and the maximum depth adjusting range is 20mm, The newly added guide track balance bar can keep guide track support plate vertical all the time and make installation more steady.
5. Easy Wiring
Movable guide track support plate can be hung outside concealed installation box to connect wires without space constrint inside case body,Elliptical hole is provided in guide track support plate to allow adjustment of distribution box face covering to horizontal position and achieve a more esthetical appearance.
6. Automatic Opening
Completely new on-off screen with push-botton switch,easy to operate press the button slightly , it will turn on automatically.
We have strong production ablility,we can produce according to custome's modification,
for example:
1. Make the box thicker:Stardard box 0.8mm thick,we can make 1.0mm,1.2mm,1.5mm .
2. Make the box deeper:standard box 90mm deep,we can make 100mm,110mm,120mm,130mm...etc.
3. Change the color of the cover:standard is dark blue transparent and opaque white.
Light yellow,dark yellow,light blue and other color is available,MOQ is 1000pcs for each item
4.Knockable holes:reduce or increase the quantity of knockable holes,change the size and location of the holes.
If there is any inquiry, feel free to contact us.
