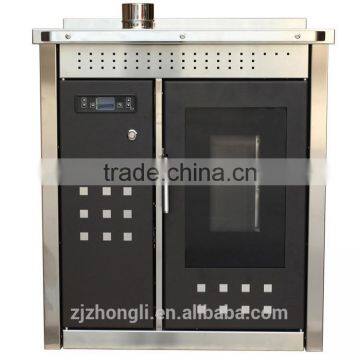

Cast Iron Wood Cook Stove 21kw Wood Pellet Cooking Stove Smokeless Wood Burner

Cast Iron Wood Cook Stove 21kw Wood Pellet Cooking Stove Smokeless Wood Burner photo-1
US$ 100 - 1,000 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Zhongli
Model Number:
ZLC21
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name Zhongli
Model Number ZLC21
Material Cast Iron
Type Pellet Stoves



Company Information



Zhejiang Zhongli Tools Manufacture Co., Ltd. was established in 2005, located in the cabled Hardware Technology Industrial Park in Jinyun county in Zhejiang province, is a integrated modern high-tech enterprise with collection of research and development, production and sales . It specializes on the development of garden tools, agricultural machinery, bio heat energy equipment and other products. The annual production is more than 1,000,000 sets of all kinds of garden tools and more than 100,000 sets of bio energy equipment.

The products are exported to Americas, Europe, Australia and Southeast Asia more than 30 countries and regions, which won the customers’ widely recognized. The performance index of the products is leading in the domestic, reached the advanced world level. ISO9001:2008 quality system standard was fully implemented. The products through the GS, CE, EMC, VCA, ROHS, EPA and EURO II certifications, at the same time, enterprise obtained the national high-tech enterprise and a well-known trademark in China title, and selected “national agricultural machinery supporting the promotion directory”.

The company adheres to the concept of "loyal to innovation, strive for perfection", committing to innovation, and multi-channel to promote the R & D and innovation ability of product and technology. We are sticking to the development strategy of“high starting point, high-tech, high-quality, low energy consumption, low emission and low consumption”, gathering all kinds of elite talent and constructing the perfect independent innovation system. The leading technology in the tool industry; low carbon economy in bio heat energy field, the construction of ecological civilization, and promoting the harmonious development of man and nature, this is the lofty goal of Zhejiang Zhongli always persisting in. Furthermore, we established long-term cooperation with a number of research institutions and universities. In the aspect of products, the company makes introduction, digestion, absorption and independent innovation, and gradually forms its own technological advantage.

Now, the Zhongli people are bearing the new hope and driving the new opportunities, and with high quality and efficient services to create new brilliance with home and abroad customers!







Product Description
Model ZLC21
Dimension(H*D*W) MM 880*790*600
Weight KG 235
Nominal Heat Input(Reduced) KW 24.6(8.2)
Nominal Heat Output(Reduced) KW 22.5(7.3)
Nominal Heat Output Ceded to
Heating Water(Reduced)
KW 18.8(5.5)
Nominal Heat Output Ceded to
the Environment(Reduced)
KW 3.7(1.8)
Nominal Output Performance(Reduced) % 91.1(88.7)
CO at 13% Oxygen at(Reduced)
Nominal Heat Output
% 0.013(0.092)
DHW Production(Δt=25℃) L/Min 10
Volume That Can Be Heated at Nominal Power with A Demand of 35Kcal/m³(45Kcal/m³) 555(430)
Nominal Voltage V 230
Nominal Frequency Hz 50
Expansion Vessel/Preloading Bar)   10/1
Maximum Working Pressure/Recommended bar 2.5/1.5
Minimum Chimney Draught at Nominal Input(reduced) Pa 13.3(8.8)
Combustion Gas Flow at Nominal Input(Reduced) g/s 14.5(12.2)
Exhaust Flue Gas Temperature at Nominal Input(Reduced) 148(91)
Pellet Tank Capacity Kg 32
Hourly Pellet Consumption  Minimum-Maximum kg/h 1.2-5.1
Operating Autonomy at Min.--Max. Power 27--7
Boiler Capacity  28
FLOW/RETURN Heating Pipe Connections Φ 3/4″/ 3/4″
Domestic Water Pipe Connections mm 14
Minimum Safety Distance from Flammable Materials mm 200
Flue Pipe Diameter mm 100
