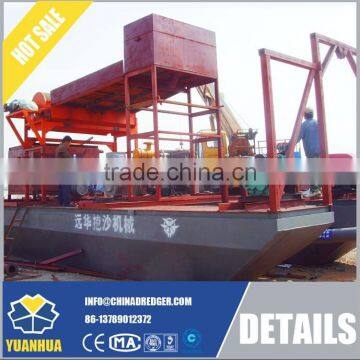

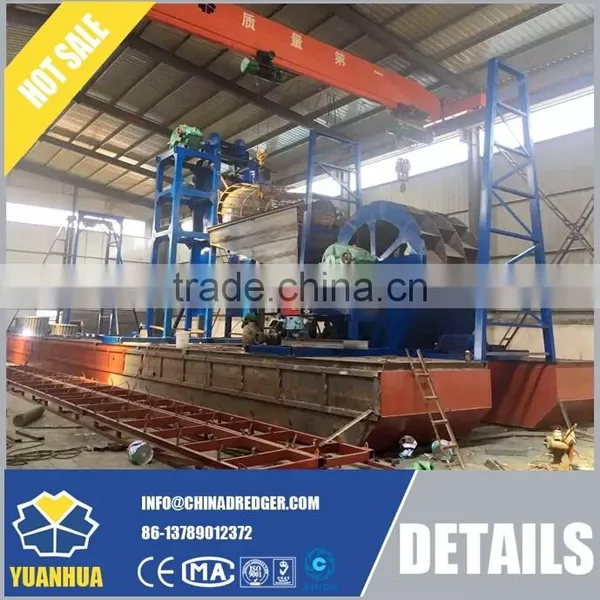

Iron Ore Selecting Machine Diesel Engine Driven Mineral Processing Machine
- Qingdao
You May Like
-
Iron Sand Ore Extracting Machine Land Use Selecting Machinery
-
China Iron Sand Ore Screening Dredger Ship Land Use
-
River Sand Iron Ore Sieving Equipments High Efficiency Boat
-
Iron Ore Screening Equipments Land Use Boat
-
River Sand Iron Sieving Equipments With High Efficiency
-
River Sand Iron Sieving Equipments High Efficiency
Product Details
| Condition | New | Type | Other, Iron sand dredger, Separator | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | Yuanhua | Model Number | YH-I | |
| Dimension(L*W*H) | 15*4.5*1.2 | Weight | 27t | |
| Certification | ISO 9001: 2008 Certification | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Iron ore selecting machine diesel engine driven mineral processing machine
Working mode:
pump sand from water
- separate stone through simple sieve
- enter the water tank
- materials flow steady into the magnetic roller through the slide board
- iron extraction
- iron sand being discharged to shore by sand pump which is driven by diesel engine
- wastes being dumped through chute
Below are the technique specifications of 8 inch Pump Iron Sand Dredger
other models are available
Iron Ore Selecting Dredger
Hull | |
Dimension (l*w*h) | 13.5m×1.5m×0.9m side floating bodies/double |
Engine Room (l*w*h) | 2m×1.5m×1m middle floating body |
Other | Anti-rust primer painted at the bottom Anti-rust coating painted at the surface |
Body | 4mm steel plate |
Deck | 3mm anti skid plate |
Engine Room | 5mm steel plate |
Total Width | 4.5~ 5 m |
Height of holding frame | 4.2~ 5.5 m |
Sand Pump Unit | |
Model | 8 inch |
Suction dia. | 200 mm |
Discharge dia. | 200 mm |
Capacity | 80 m³/h (consistency 20%) |
Fitted Power | 59 kw |
Speed | 700 rpm |
Suction Depth | 15 m |
Driving Engine | HFR4105IZG WEIFANG·HUAYUAN |
Speed | 2000 rpm |
Power | 74 kw |
Oil consumption | ≤197g/kw.h |
Water Pumping Unit | |
Capacity | 100 m3/h |
Head | 15 m |
Fitted Power | 20HP diesel engine |
Magnetic Separation Equipment (permanent magnet roller type) one set | |
Size | 3000*900mm (water-washing precise selection type) |
Antimagnetic angle | 120° |
Selection Mode | downstream type/forward flow |
Super Antimagnetic | Top Magnetic Force: 4300GS |
Recovery Rate | 90% net selection |
Fitted Power | 7.5kw standard motor Model 350 reducer |
Iron Sand Grade | 50-55 depend on original ore magnetic holding rate |
Submersible Pump | 7.5 kw ,one set |
Winch | |
Ladder rising winch | 4kw electric winch , one set |
Hand operating winch | 2 sets |
Simple control room | |
Light | 2 sets |
Power Unit | |
Model | HFR4100ZD WEIFANG·HUAYUAN |
Generating power | 30 kw |
Speed | 1500 rpm |
Rated Current | 72 A |
Rated Voltage | 400 V |
Oil Consumption | ≤197g/kw.h |
Propeller |
|
Impeller diameter | 500 mm |
Length | 1.8m |
Fitted Power | 20HP diesel engine |
Iron Sand Discharging Pump | |
Model | 4 |
Fitted Power | 24HP diesel engine |
Attachments |
|
Main pump 8inch impeller | 3 pcs |
Water pump 4inch impeller | 5 pcs |
Feature :
1) For sand dredging , river maintenance,etc
2) Reliable hydraulic system
3) Fresh water engine cooling system.
4) Solid structure and top quality parts
5) Ideal dredging depth and discharge distance
6) High efficiency and Great production
7) Spare parts and floating pipe available
8) Low energy consumption
9) Efficiency fuel consumption
10) Simple to assemble , operate and maintain
11) Transport by road , rail or sea
12) The dredger is mainly used in the coastal , river, channel , reservoir , to dredge and backfill for the harbor construction.
