Home > Products > Sand Dredger > 100 - 300 cub/h easy operation small submersible pump dredge equip electric pump dredger

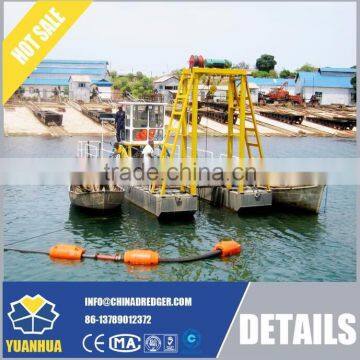

100 - 300 cub/h easy operation small submersible pump dredge equip electric pump dredger
USD $60,000 - $150,000
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Qingdao
- T/T
You May Like
- bucket wheel excavator 2000m3/h-7000m3/h
- bucket wheel excavator 500m3/h-7000m3/h
- bucket wheel excavator 500tph-2500tph
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
Product Details
Condition: | New | Type: | Other, submersible dredge | Power Type: | Electric |
Dredging Depth: | 10 m | Draught: | 90 cm | Place of Origin: | Shandong, China |
Brand Name: | yuanhua | Model Number: | YHSW | Dimension(L*W*H): | 25*4*1.2m |
Weight: | 30T | Certification: | ISO 9001:2008 Certification | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
100 - 300 cub/h easy operation small submersible pump dredge equip electric pump or diesel engine
Use the submersible pump to suck and deliver sands.
The wetted parts of the pump are made of high chromium wearable alloy , so the pump has good wear resistance and large flowing passage.
Technical Requirements: |
Working Capacity: ≤300 m³/h |
Dredging Depth : ≤25m |
Discharge Distance/Delivery ≤500m |
YHQB Dredger consists of |
-Hull |
-Sand/mud Pump |
-Diesel Power Generating Set |
-Control Panel |
-Lifting Appliance |
-Pipeline |
-Attachments |
A high voltage cable |
B Winch and anchor |
C Simple Shed |
l Hull: |
Size: 12m×1.5m×1 m (L*W*H) two hulls |
Material: |
Bottom 6mm steel plate |
Surface 4mm antiskid plate |
Preservative Treatment for the bottom |
Two coating of Anti-corrosive Primer |
Surface painted with automobile anti rust paint |
Frame Structure |
Holding channel steel 14#a 12# 10# |
Standard GB/T 707-1988 |
Holding angle steelL#-6m 9# 6# 5# |
Standard GB 9787-1988 |
Sand Pumping Hose20m Pressure:≥1MPA |
lSand/mud Pump |
ModelZJQ1000-18-110 TypeSubmersible Pump |
Total Flow1000 m3/h Head Lift18m |
Out Dia.300mm Max. dia.of flowing particle50mm |
Power110kw Speed980rpm |
Capacity≤300 m3/h |
This is calculated by the consistency of 30% |
DimensionHeight 1725mm Diametre 1640mm |
Weight 2000KG |
Working Condition |
(1).Power sources: Three-phase AC 380V 50HZ. (2).The medium temperature should not exceed 40 ,medium don't contain flammable and explosive gas . |
(3).Solid granule max. thickness in medium: grey sediment for 45% ,mineral sediment for 60%. |
(4).Motor and pump max. dive depth should not exceed 30M ,min. dive depth should not exceed 1M. |
(5).The best motor and pump is vertical ,operate method is continuous operation. |
lPower Generating Set |
Power Range: 200KW/250KVA |
MotorL6,Four Stoke,boost pressure,intercooler |
Supply 24v DC Electricity |
l Control System |
Control the sand pump and winch to switch on and off. |
Protect damage caused by lack of phase,overloading,three phases imbalance and overheating. |
All Push Button Control |
Include the Gallows Frame and Electric winch |
The sand pump to attached to the winch through the pulley on the Gallows Frame |
Material of Gallows Frame seamless steel tube |
Thickness of Holding Tube 6mm |
Thickness of Roof Timbering Tube10mm |
ModelBS-15-400 |
Fitted motor 11kw 4-electrode standard motor |
reducerModel 400 horizontal reducer (speed ratio 10.351) |
crane capacity 3-5T |
Speed of steel wire 0-20m/min |
Dia. Of steel wire 16-18mm |
-Sucking Pipeline(from the vessel to the pump) |
-Dumping Pipeline(from the hull to sand dumping area) (Purchase Separately) |
Dia.315mm Pressure 0.8 MPa Wall Thickness 13mm |
High molecular weight polyethylene Dredging Pipe with connecting flanges |
l Attachments |
Traction engine two sets |
Model QJ-4-250 |
Fitted motor 4kw standard motor |
Reducer Model 250 horizontal reducer (speed ratio 10.351) |
Dia. Of steel wire 12mm |
