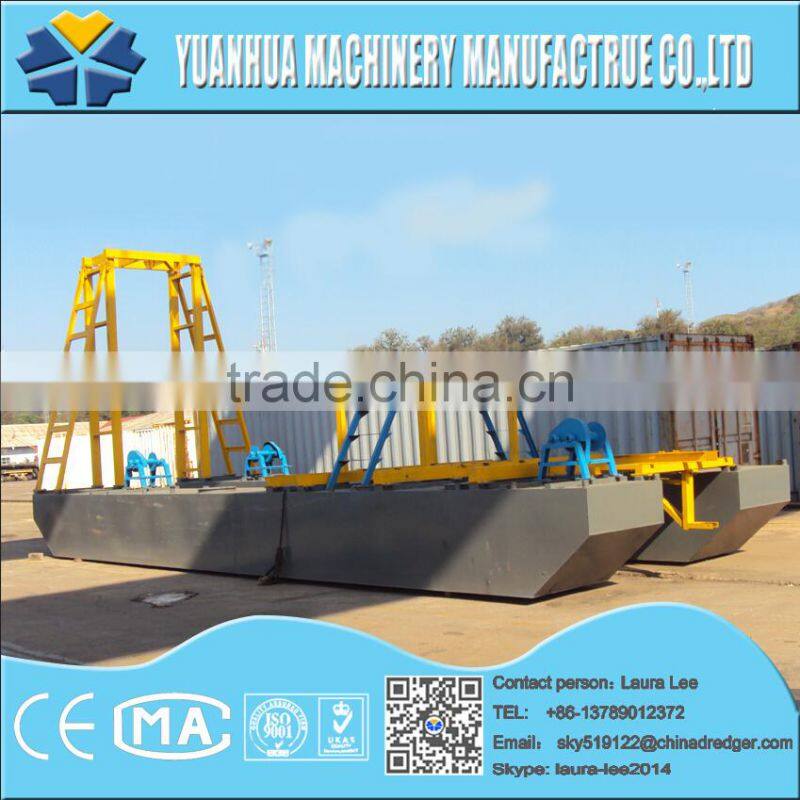

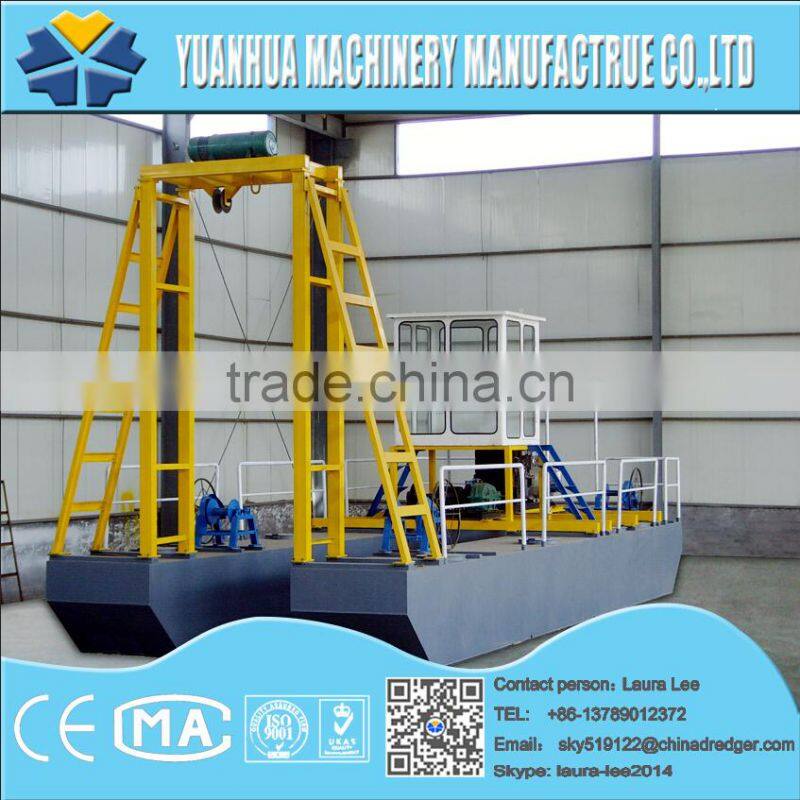

Hydraulic mud pump boat for river desilting and sand dredging
80 - 300 m3/h high efficiency river submersible pump sand dredger
Qingzhou Yuanhua Machinery Manufacture Co., Ltd. We specialize in dredgers for various industries: Construction, Environmental, Sand Production and Mining Machine.
Produce a variety of series products , such as : cutter suction dredger , bucket chain dredger , underwater pump dredger , self- propelled dredger , gold panning dredger , iron extracting dredger, iron extracting equipments , sand sieving machines, crusher , weathering sand producing lines (break , rinsing and separating ), and various kinds of machines for land and watercourse mining of rare metals.
Own professional R&D department , CAD drawing design center , quality control department and Installation & Adjustment to After Service .
We can customize special dredging and mining equipments according to different environment and customer requirement which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and put our qualified products directly. Our experienced engineers will work closely with you to customize a best dredging solution for your particular needs.
Established in 1994 , now we have developed a dominant role in the dredge manufacturing industry and expand our market to more Russia , Korea , South Asia , Kazakhstan , South Africa , Middle East etc. Success is based on the best quality , excellent service , good credit, competitive price , the abundant strength

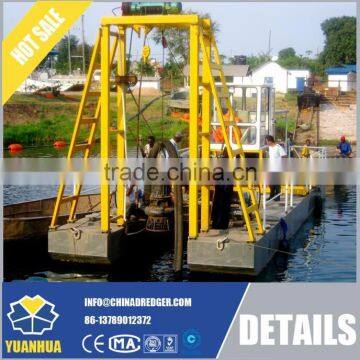

Below is one submersible pump dredger that exported before , for reference :
| Submersible pump dredger YHSPD |
| Technical Requirements: |
| Dredging Depth : ≤25m |
| Working Capacity: ≤300 m³/h |
| Discharge Distance/Delivery ≤500m |
| YHSPD Dredger consists of |
| -Hull |
| -Sand/mud Pump |
| -Diesel Power Generating Set |
| -Control Panel |
| -Lifting Appliance |
| -Pipeline |
| -Attachments |
| A high voltage cable |
| B Winch and anchor |
| C Simple Shed |
| l Hull: |
| Size: 12m×1.5m×1 m (L*W*H) two hulls |
| Material: |
| Bottom 6mm steel plate |
| Surface 4mm antiskid plate |
| Preservative Treatment for the bottom |
| Two coating of Anti-corrosive Primer |
| Surface painted with automobile anti rust paint |
| Holding channel steel 14#a 12# 10# |
| Standard GB/T 707-1988 |
| Holding angle steelL#-6m 9# 6# 5# |
| Standard GB 9787-1988 |
| Sand Pumping Hose20m Pressure:≥1MPA |
| lSand/mud Pump |
| ModelZJQ1000-18-110 TypeSubmersible Pump |
| Total Flow1000 m3/h Head Lift18m |
| Out Dia.300mm Max. dia.of flowing particle50mm |
| Power110kw Speed980rpm |
| Capacity≤300 m3/h |
| This is calculated by the consistency of 30% |
| DimensionHeight 1725mm Diametre 1640mm |
| Weight 2000KG |
| Working Condition |
|
(1).Power sources: Three-phase AC 380V 50HZ. (2).The medium temperature should not exceed 40 ,medium don't contain flammable and explosive gas . (3).Solid granule max. thickness in medium: grey sediment for 45% ,mineral sediment for 60%. (4).Motor and pump max. dive depth should not exceed 30M ,min. dive depth should not exceed 1M. (5).The best motor and pump is vertical ,operate method is continuous operation. |

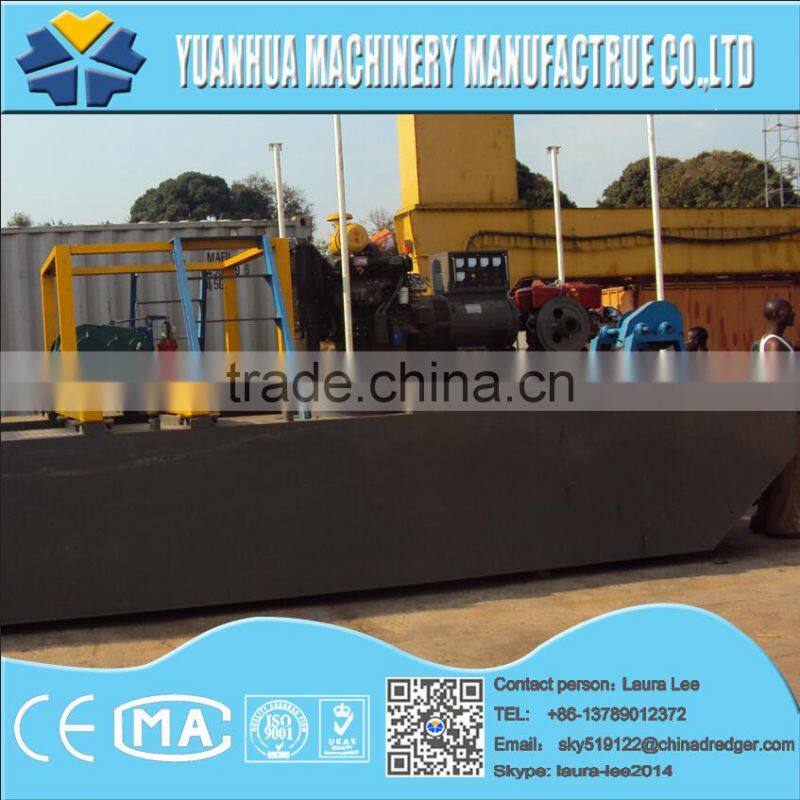

| lPower Generating Set |
| Power Range: 200KW/250KVA |
| MotorL6,Four Stoke,boost pressure,intercooler |
| Supply 24v DC Electricity |
| l Control System |
| Control the sand pump and winch to switch on and off. |
| Protect damage caused by lack of phase,overloading,three phases imbalance and overheating. |
| All Push Button Control |
| l Lifting Appliance |
| Include the Gallows Frame and Electric winch |
| The sand pump to attached to the winch through the pulley on the Gallows Frame |
| The winch is electrically controlled to lift and go down smoothly and steady. |
| Material of Gallows Frame seamless steel tube |
| Thickness of Holding Tube 6mm |
| Thickness of Roof Timbering Tube10mm |
| Winch |
| ModelBS-15-400 |
| Fitted motor 11kw 4-electrode standard motor |
| reducerModel 400 horizontal reducer (speed ratio 10.351) |
| crane capacity 3-5T |
| Speed of steel wire 0-20m/min |
| Dia. Of steel wire 16-18mm |
| l Pipeline |
| Including the Sucking Pipeline and Dumping Pipeline |
| -Sucking Pipeline(from the vessel to the pump) |

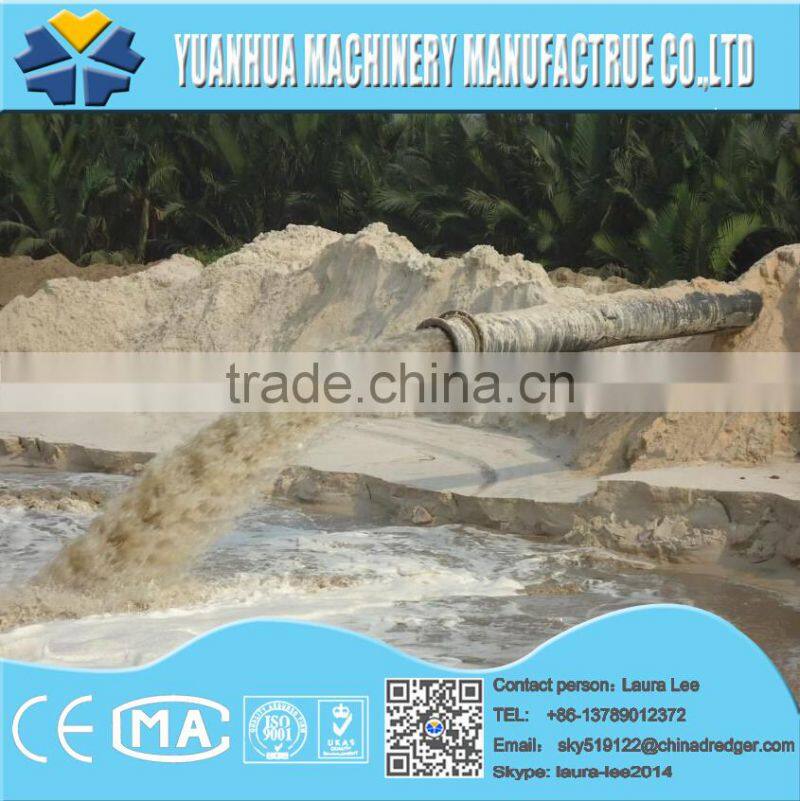

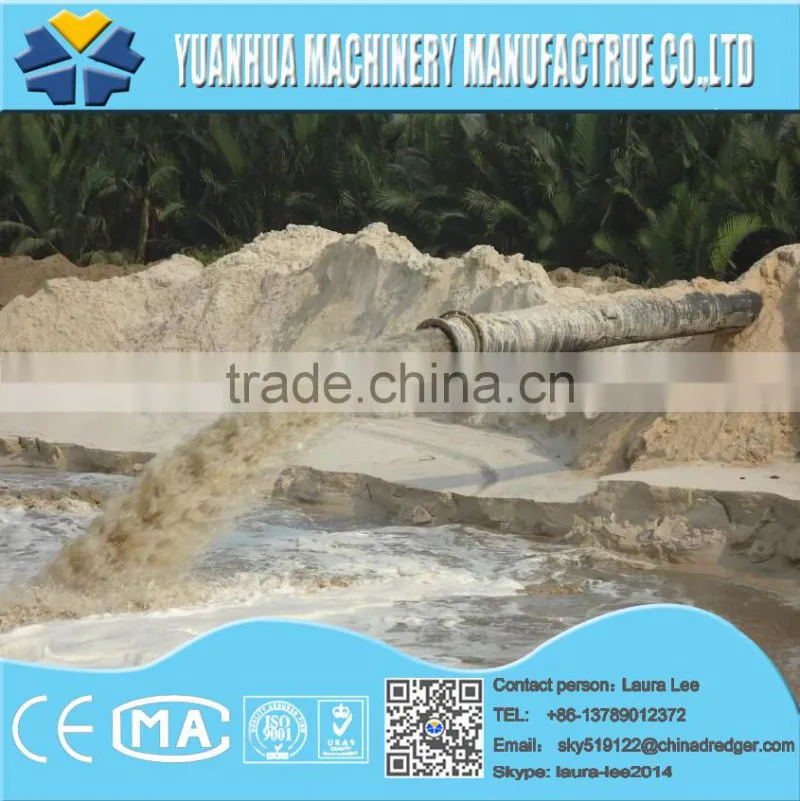

| -Dumping Pipeline(from the hull to sand dumping area) (Purchase Separately) |
| Dia.315mm Pressure 0.8 MPa Wall Thickness 13mm |
| High molecular weight polyethylene Dredging Pipe with connecting flanges |
| l Attachments |
| Traction engine two sets |
| Model QJ-4-250 |
| Fitted motor 4kw standard motor |
| Reducer Model 250 horizontal reducer (speed ratio 10.351) |
| Dia. Of steel wire 12mm |
| l Rain Shed |
| Material : colored steel shingles |
| Cover the machinery and ease the operating control |
Qingzhou Yuanhua Machinery Manufacture Co., Ltd. We specialize in dredgers for various industries : Construction , Environmental , Sand Production and Mining Machine.
Produce a variety of series products , such as : cutter suction dredger , bucket chain dredger , submersible pump dredger , self- propelled dredger , gold panning dredger , iron extracting dredger, iron extracting equipments , sand sieving machines, crusher , weathering sand producing lines (break , rinsing and separating ), and various kinds of machines for land and watercourse mining of rare metals.
Own professional R&D department , CAD drawing design center , quality control department and Installation & Adjustment to After Service .
We can customize special dredging and mining equipments according to different environment and customer requirement which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and put our qualified products directly. Our experienced engineers will work closely with you to customize a best dredging solution for your particular needs.
Established in 1994 , now we have developed a dominant role in the dredge manufacturing industry and expand our market to more Russia , Korea , South Asia , Kazakhstan , South Africa , Middle East etc. Success is based on the best quality , excellent service , good credit, competitive price , the abundant strength.
Quality Warranty :
Will provide 12 months warranty for the quality of the main parts: Diesel engines, generators, gear boxes, dredge pumps, Hydraulic system.
1) 12 months manufacturing warranty on all new installed component parts.
2) 12 months warranty on hull and all fabricated parts.
3) Wearing parts are not included.
During the warranty period , We will provide free parts and on site technical guidance . After the warranty period, We willprovide free and on site technical support quickly, if the ship owner need. But if the dredger need replacement parts, the cost paid by the owner.
Delivery :
The cutter suction dredgers are detachable, so it is easy to transport when delivering or moving from one working site to another.
Training and installation :
Our experienced installers will arrive at the construction site to guide, teach and training your staff to debug and operate the dredger until they can operate skillfully by themselves.
