12 Inch Jet Suction Dredger For River Sand Dredging

12 Inch Jet Suction Dredger For River Sand Dredging photo-1

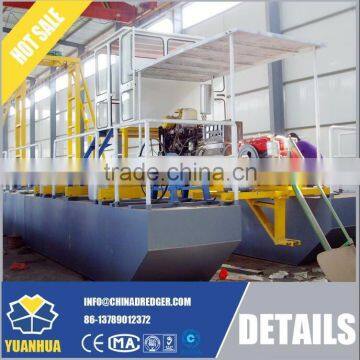

12 Inch Jet Suction Dredger For River Sand Dredging photo-2

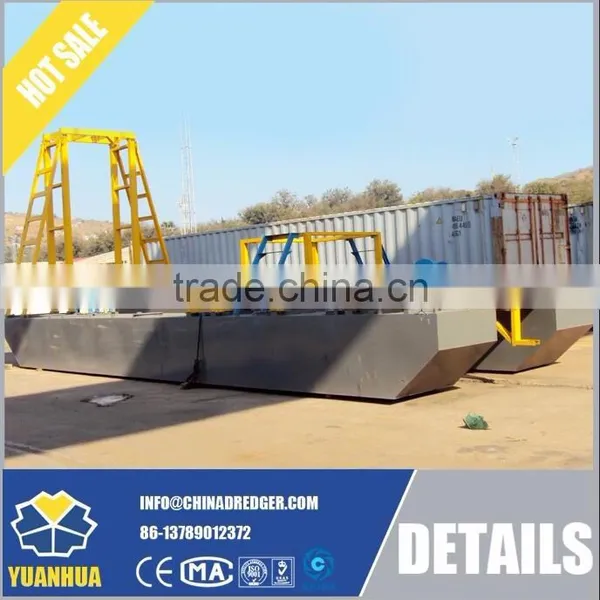

12 Inch Jet Suction Dredger For River Sand Dredging photo-3

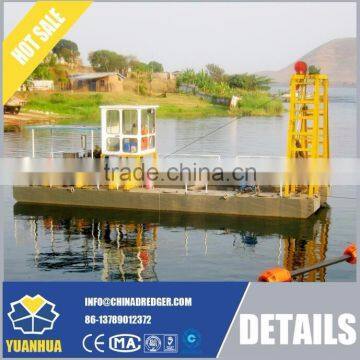

12 Inch Jet Suction Dredger For River Sand Dredging photo-4

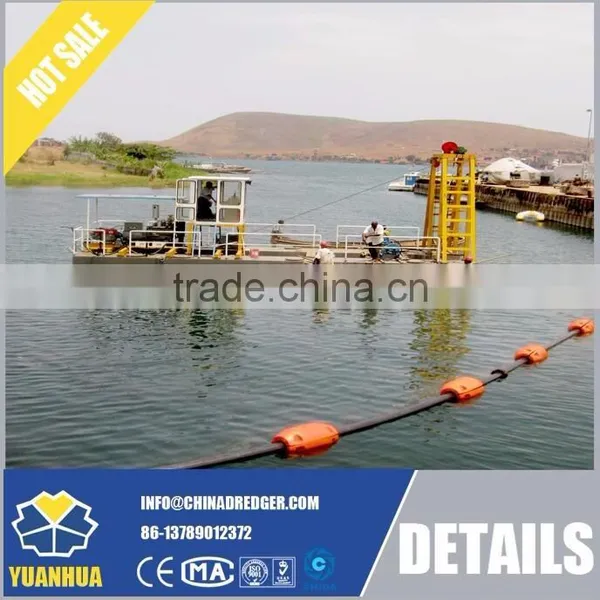

12 Inch Jet Suction Dredger For River Sand Dredging photo-5

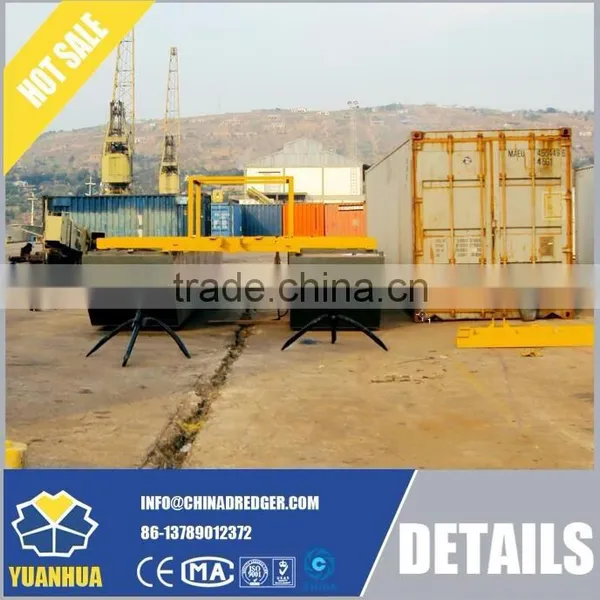

12 Inch Jet Suction Dredger For River Sand Dredging photo-6
US$ 760,000 - 860,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Cutter Suction Dredger, cutter suction dredger
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Cutter Suction Dredger, cutter suction dredger
Power Type Diesel
Dredging Depth 10 m
Draught 90 cm
Place of Origin Shandong, China
Brand Name YUANHUA
Model Number CSD-450
Dimension(L*W*H) 23.5 *6 *1.23
Weight 40
Certification ISO 9001:2008
Warranty 1 YEAR

12 inch Jet Suction Dredger For River Sand Dredging





Features:

1. One-man operation. Most advanced PLC control system.

2. New highly effective cutter/wheel drive system

3. Reliable hydraulic system.

4. Recycling water cooling system

5. Completely assembled and fully tested before delivery

6. Very simple and fast assembly

7. Standard spare parts available from stock

8. Designed as standard to qualify for Coastal Waters Certificate

9. Optional equipment available





BELOW ARE JUST TWO EXAMPLES

Cutter Suction Dredger


.External dimension:
Total length:23.5m(including the rimer arm)
Length15.3m
Width:6m
Depth:about 1.23m
Max digging depth: 10m
Max discharge distance:500m

.Engine:
Model:X6170ZC-1
Rated power:382KW
Rotate speed:1200 rmin

.Pump
Model:300WND
Rotate speed600rmin
Power: 300KW
inlet diameter: 350mm×
exit diameter300mm
workload:150 m3h

.Rimer
Drive mode: oil hydraulic motor minor axis to drive
Rimer diameter1250mm
Cutting tip5 pieces
Max rotate speed:30 rmin


.External dimension:
Total length:17.53 m(including the rimer arm)
Length11.8m
Width:3.78m
Depth:about 1.23m
Max digging depth: 8m
Max discharge distance:500m

.Engine:
Model:R6160ZC408
Rated power:300KW
Rotate speed:1000 rmin

.Pump
Model:14/12
Rotate speed500rmin
Power: 300KW
inlet diameter: 300mm×
exit diameter250mm
workload:110 m3h

.Rimer
Drive mode: oil hydraulic motor minor axis to drive
Rimer diameter1050mm
Cutting tip5 pieces
Max rotate speed:32 rmin

12 inch Jet Suction Dredger For River Sand Dredging
