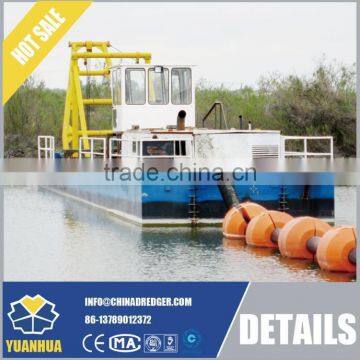

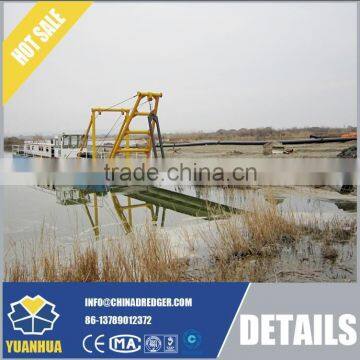

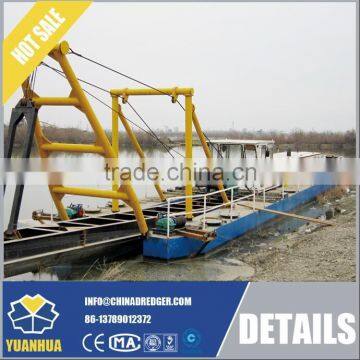

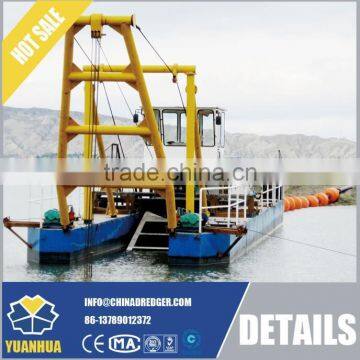

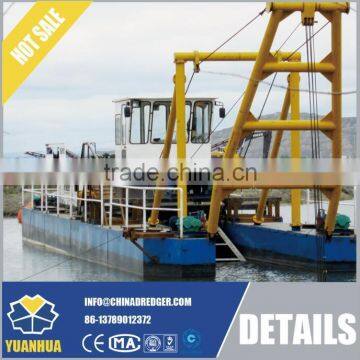

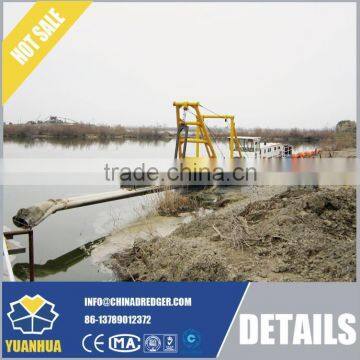

Hot selling sand mining machine Jet Suction Dredger Plain Suction Dredger
HOW DOES THE JSD WORKS?
YHJSD utilizes high pressure water coming out of six jet nozzles for breaking up of hard layers of material including clay, which are sucked up through the suction mouth behind the jet head. To increase the amount of sand flowing towards the suction mouth, a water jet is often directed onto the breach. In this case the jet-pipe is often mounted above the suction pipe. JSD is a ladder mounted pump and under water motor, which is driven by a electrical motor. The dredge can be dismounted in transportable units for easy transport.
This Jet suction dredger is the perfect solution for deeper digging locations and to help extend the life of an existing deposit. Excellent in applications for the mining industry such as: sand and gravel, specialty minerals, desiltation of hydro-dam and reservoirs and other mining applications.
Dredger Application
Sand - Dredging- Mining- Environmental - Building - Industry -
Working Conditions
Recommended use of the environment: with rock and gravel <50% (rivers, lakes, reservoirs, ports and other sand mining
project)
1.The range of adaptation to the environment: the temperature no higher than 40 degrees Celsius in summer and winter
temperatures not lower than -10 degrees Celsius,the air humidity is no more than 30%,wind power does not exceed 7 in
rivers.
2. River ore requirements: sand ratio is no less than 60% (clay content is no more than 10% scree content is no more than
15% gravel content is no more than 15% Wind Stone is no higher than 10%.)
3. The ship diesel engine should apply to the CIS countries grade use of fuel, oil.
4. The ship is equipped with night-time lighting system suitable for all weather conditions and working uninterrupted.
5. 2-3 persons operate the dredger every time.
Dredger Advantages
(1) Moderate size, single deck, draft less, smaller displacement.
(2) Detachable,easy to transport .
(3) Operating flexible , safety,and high efficiency.
(4) Lower cost than other dredging machine.
(5) Self-propulsion system.
(6) The thicker sand layer, the higher capacity ,operation more simple.
(7)Dredging depth : ~30 m
(8)Capacity:150~1200m³/h
YUANHUA Jet Suction Dredger YHJSD series.
| Model | YHJSD200 | YHJSD250 | YHJSD300 | YHJSD350 | YHJSD400 | YHJSD450 | YHJSD500 |
| Dredging depth (m) | ~8 | ~8 | ~15 | ~15 | ~15 | ~30 | ~30 |
| Capacity (m³/h) | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Discharge Distance | ~300m | ~500m |
~1000m | ~1500m | ~1500m | ~2000m | ~2000m |
| Overall length (m) | 15 | 23 | 25 | 28 | 35 | 38 | 38 |
| Overall width(m) | 6.5 | 8 | 8 | 10 | 11.5 | 11.5 | 12 |
| Inlet & outlet(mm) | 200/150 | 250/200 | 300/250 | 350/300 | 400/350 | 450/400 | 500/450 |
| Draft loaded (m) | 0.75 | 0.75 | 0.75 | 0.9 | 0.9 | 0.9 | 0.9 |
| Nos. of pontoon | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Water flow (m³/h) | 700-900 | 1100-1200 | 1300-1500 | 1600-1800 | 1800~2000 | 2300~3000 | 3200~3800 |
The parameters are just for reference. Customized specification is available.
Qingzhou Yuanhua Machinery Manufacture Co., Ltd. We specialize in dredgers for various industries : Construction ,
Environmental , Sand Production and Mining Machine.
Produce a variety of series products , such as : cutter suction dredger , bucket chain dredger , underwater pump dredger ,
self- propelled dredger , gold panning dredger , iron extracting dredger, iron extracting equipments , sand sieving machines,
crusher , weathering sand producing lines (break , rinsing and separating ), and various kinds of machines for land and
watercourse mining of rare metals.
Own professional R&D department , CAD drawing design center , quality control department and Installation &
Adjustment to After Service .
We can customize special dredging and mining equipments according to different environment and customer requirement
which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and
put our qualified products directly. Our experienced engineers will work closely with you to customize a best dredging
solution for your particular needs.
Established in 1994 , now we have developed a dominant role in the dredge manufacturing industry and expand our market
to more Russia , Korea , South Asia , Kazakhstan , South Africa , Middle East etc. Success is based on the best quality ,
excellent service , good credit, competitive price , the abundant strength.
Features:
1. PLC system , easy to operate.
2. Customized design to meet all needs of customers.
3. Spare parts available.
4. Ensured quality and competitive price
5. Advanced and reliable hydraulic system.
6. Dismountable and easy to transport.
7. Completely assembled and fully tested before delivery.
Quality Warranty :
Will provide 12 months warranty for the quality of the main parts: Diesel engines, generators, gear boxes, dredge pumps,
Hydraulic system.
1) 12 months manufacturing warranty on all new installed component parts.
2) 12 months warranty on hull and all fabricated parts.
3) Wearing parts are not included.
During the warranty period , We will provide free parts and on site technical guidance . After the warranty period, We will
provide free and on site technical support quickly, if the ship owner need. But if the dredger need replacement parts, the
cost paid by the owner.
Delivery :
All of Yuanhua dredger machine are detachable, so it is easy to transport when delivering or moving from one working site
to another.
Training and installation :
Our experienced installers will arrive at the construction site to guide, teach and training your staff to debug and operate the
dredger until they can operate skillfully by themselves.
