B Type Screen Pinion in Greenhouse Screening System

B Type Screen Pinion in Greenhouse Screening System photo-1
B Type Screen Pinion in Greenhouse Screening System photo-2

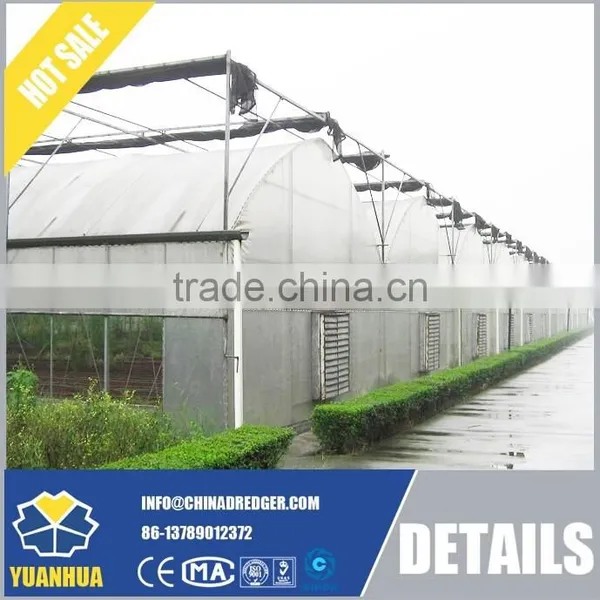

B Type Screen Pinion in Greenhouse Screening System photo-3

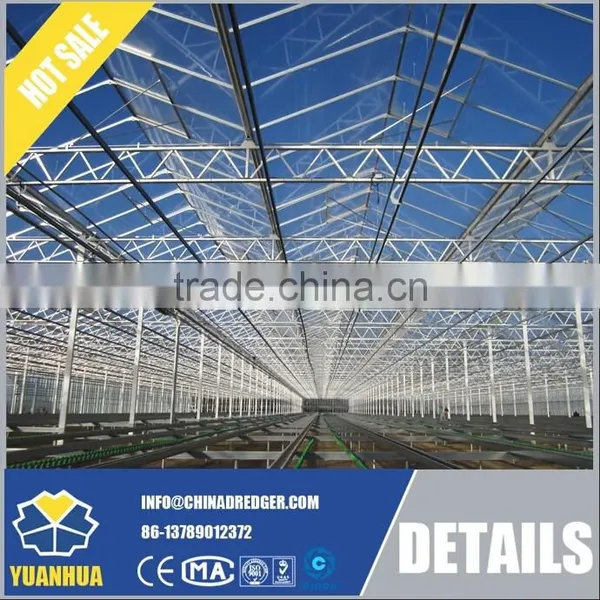

B Type Screen Pinion in Greenhouse Screening System photo-4

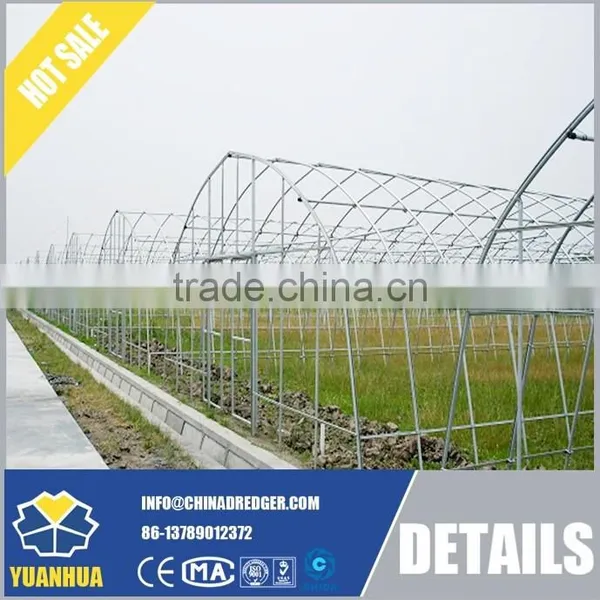

B Type Screen Pinion in Greenhouse Screening System photo-5

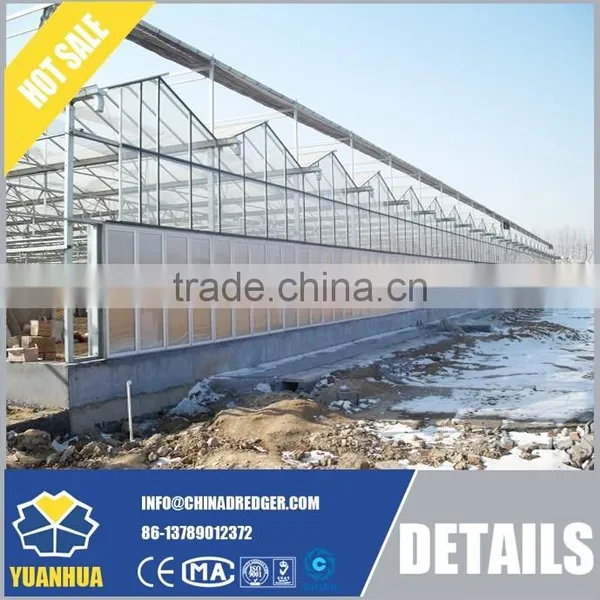

B Type Screen Pinion in Greenhouse Screening System photo-6
US$ 45 - 65 MOQ: 1000 Square Meters
Key Specifications
Get Latest Price
Size:
Large
Type:
Multi-Span Agricultural Greenhouses
Cover Material:
Other, PC Sheet, Hot-DIP Galvanized
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Size Large
Type Multi-Span Agricultural Greenhouses
Cover Material Other, PC Sheet, Hot-DIP Galvanized
Model Number B Type
Place of Origin Shandong, China
Brand Name YUANHUA
Material Other, Galvanized



Product Description

B Type Screen Pinion Description.

     Greenhouse screen system is mainly used in the multi-span greenhouse shading system and insulation system, playing a role in regulating light, cooling and heat insulation. Rack and pinion are the necessary
parts of greenhouse screen system. The main transmission components for rack and pinion mechanism uses
the gear rack mechanism.

B Type Screen Pinion in Greenhouse Screening System
     Screen system has high efficient shading performance and can shade over sunlight to prevent crops from burned by strong sunlight. Because of stopping large amount of sunlight into the greenhouse, it can efficiently decrease the acculation of inside heat. Besides, it can satisfy different demand of different crops for sunlight through choosing curtains with different shading rate. Therefore, screen system has the function of adjusting sunlight and cooling. Moreover, it has the function of preventing hail. Today, it mainly depends on the motor intelligent control to realize open and close of itself.
     You can see it fully from the following forms and photos. In addition, we can show it in details.

B Type Pinion and The Other Important Parts in Screen System

Name Specification Application Range Notes
Driving Shaft 1″,5/4″
Gear Motor   Stroke: 5.2rpm
Chain Coupling 1″,5/4″ 1″,5/4″Driving Shaft
Welding Joint 1″,5/4″ 1″,5/4″Driving Shaft
B Type Pinion Bracket Speed Ratio=1.8:1
Rack   Stroke 3~5m
Elastic Round Pins 6×28mm
Screen Rack-Pulling Rod Joint 27,32

27 Pulling Rod32

Pulling Rod


Bolt M8
Pulling Rod 27×1.5 mm32×1.5mm
Support Wheel Single or Double Wheels
Six Head Self Drilling Screws ST5.5×25

Pulling Rod-Guide Bar

Connecting Piece

27mm,32mm

27 Pulling Rod32

Pulling Rod


T Type Bolt M6×75(Anti-release Nuts)
Driving Edge Aluminum Profile
Spring

2.0mm Plastic Coated,

L=2m



Fixing Shading

Curtain

Shading or Insulation Curtain
B Type Pinion Bracket Pad  46.5×3
Bolt M8

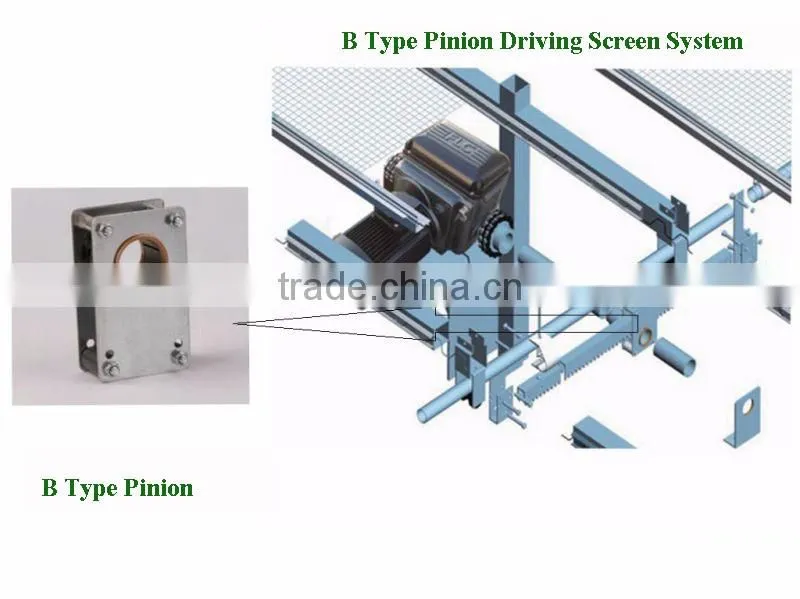

B Type Screen Pinion in Greenhouse Screening System

Function: driving the rack in screen system.

Characteristics:

1. Complete specifications, reasonable price.

2. High production accuracy, quality assurance.

3. Premium brand, true and reliable quotation.



Pay Attention: about the price, we can negotiate together.

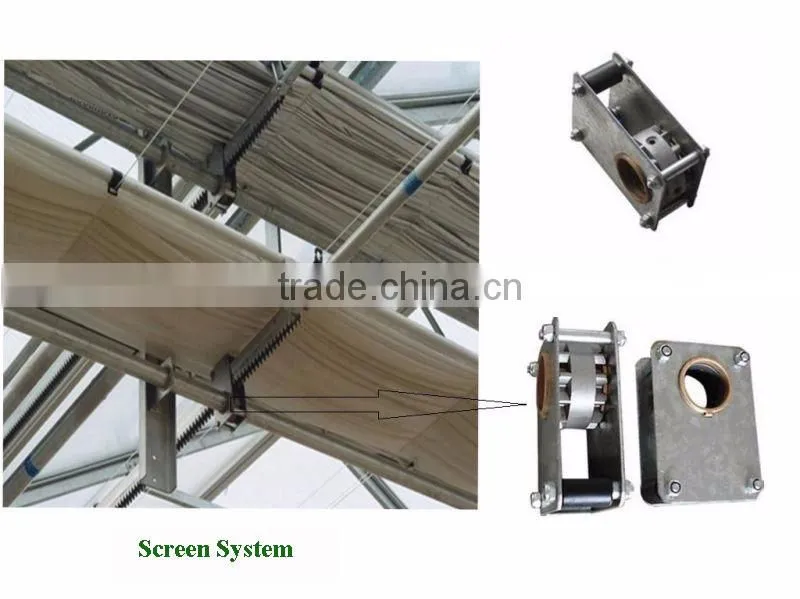

B Type Screen Pinion in Greenhouse Screening System
