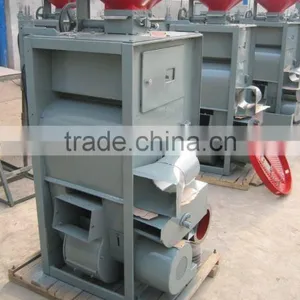

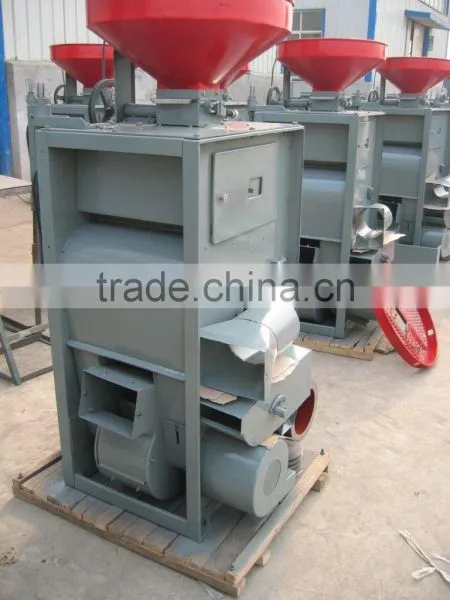

SB-50 Rice Mill

SB-50 rice mill

Description:

The rice milling unit of model SB-50 is a kind of comprehensive equipment for rice processing. Rice goes into machine through vibrating screen and magnet unit, and then forward under rubber-roller for hulling. Winnowing and air blowing to husk. The machine may complete all the processing works from cleaning grain, rice husking in hulling to rice husking in succession. As to husk, chaff, blighted grain as well ad polished rice, they are all pushed out of machine separately. This machine is comprehensive expression for all the good qualities of varied kinds of rice-processing machines. For instance, it is arranged with a comprehensive view of situation and is designed rationally.

  It`s structure is compact and well organized. It has less noise and can be easily operated and reliably regulated. Rice after processed consists of less chaff and few of them are damaged (broken). The neatness of such rice may be up to above standard 1. It consumes less power and it has high efficiency in work. It is indeed a combined rice milling unit of a new generation.

Main Technical specifications:

l       Rice huller

1. Rubber roller Φ254×254(mm)(diameter*length)
2. R.P.M of fast roller: 1200 r/min
3. R.P.M of slow roller: 890 r/min
4. R.P.M of husk blower: 1680 r/min

l       Rice polisher:

1. Iron cylinder: Φ138×340mm(outer diameter of protrudes*length)
2. Screw conveyor: Φ138*150mm(outer diameter*length)
3. Hexagonal screen: Φ148*335mm(diameter of inscribed circle*length)                                Mesh of hexagonal screen: 0.95*15mm(width*length)
4. R.P.M of main shaft of rice polisher1000 r/min
5. R.P.M of high pressure blower: 3400 r/min

l       Power required: 22 kw or 30HP

l       Output

Long-shaped rice 1800-2300 kg/h (standard 1)

Round-shaped rice1900-2500 kg/h(standard1)

l       Overall dimensions of machine:2400×1080×2080mm(L×W×H)

l       Weight of machine:630 kg approx.(Excluding the weight of power engine)

Packing wooden case: 1050*960*2150 mm

3.Price :FOB Qingdao $1450.00/set

  Shelf ( use power: electromotor or diesel):$50.00/set

5.Delivery time:  25 Day

6.Payment settlement: 50% T/T before production and the balance T/T before shipment.
