Specifications
Herbal extracts equipment has a beautiful shape, easy operation, the device with a lifting bracket.Brief introduction of chinese herbal medicine equipment:
This chinese herbal medicine equipment is suitable for medicine, health care products, bio-pharmaceuticals, cosmetics, food and other industries ambient pressure extraction, ultrasonic extraction, ultrasonic extraction, ultrasonic cell crushing and other processes. This dynamic extracting tank medicine equipment can dynamically continuous ultrasonic extraction, meanwhile, can be equipped with Yuda large-capacity stainless steel rotary evaporator which designed for schools and research units, it can be do enrichment process for the liquid which extracted after the ultrasonic extraction device, Yuda stainless steel rotary evaporator can be concentrated the liquid to extract state directly. This set of chinese herbal medicine equipment is the ideal for universities, research institutes and enterprises, laboratories and pharmaceutical research and development departments of many varieties, small batch production use.
Features of chinese herbal medicine equipment :
1 Shanghai Yuda's chinese herbal medicine equipment has a beautiful shape, easy operation, the device with a lifting bracket, can be adjust ultrasonic range according to different containers and the amount of material. The dynamic extracting tank medicine suit for a variety of glass and metal containers.
2 Shanghai Yuda chinese herbal medicine equipment adaptability: it’s do not limited to ingredients polarity and molecular size for extract Chinese herbal. It’s applies to the extract of vast majority of Chinese herbal extracts and various ingredients;Equipment selectable frequency range: 15KHz, 20KHz, 28 KHz, 30 KHz, 35 KHz, 40 KHz, 50 KHz, 60 KHz, 80 KHz.
The parameters of chinese herbal medicine equipment:
1) Ultrasonic Power: 200W ~ 1000W (adjustable), instantaneous maximum power is1500W
2) Ultrasonic Frequency: 20KHz (automatic tracking), ± 0.15KHz.
3) Random horn (mm): 3.2,6.3,9.5 or customization.
4) Control system: analog control system.
5) Supporting the drive power: 2000W, 220V
6) The total length of the ultrasonic generator components: (according to customer requirements)
7) Ultrasonic Generator: shaped style.
8) Ultrasonic Frequency: 20KHz automatic tracking.
9) Ultrasonic generator Material: SUS304 316L10) Capacity: 10ml ~ 5000ml (according to customer requirements)

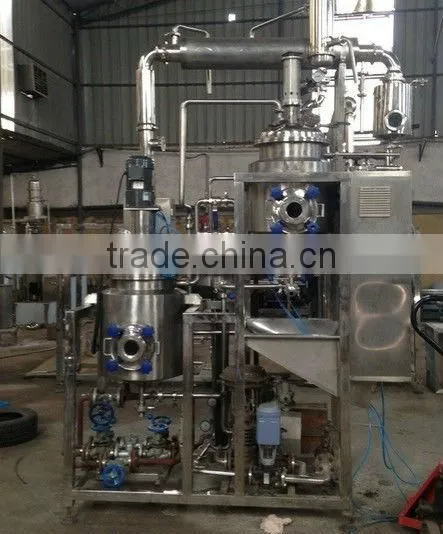

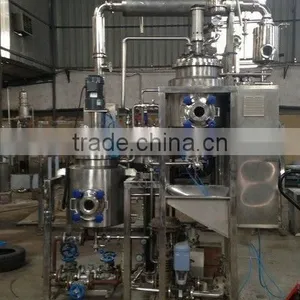

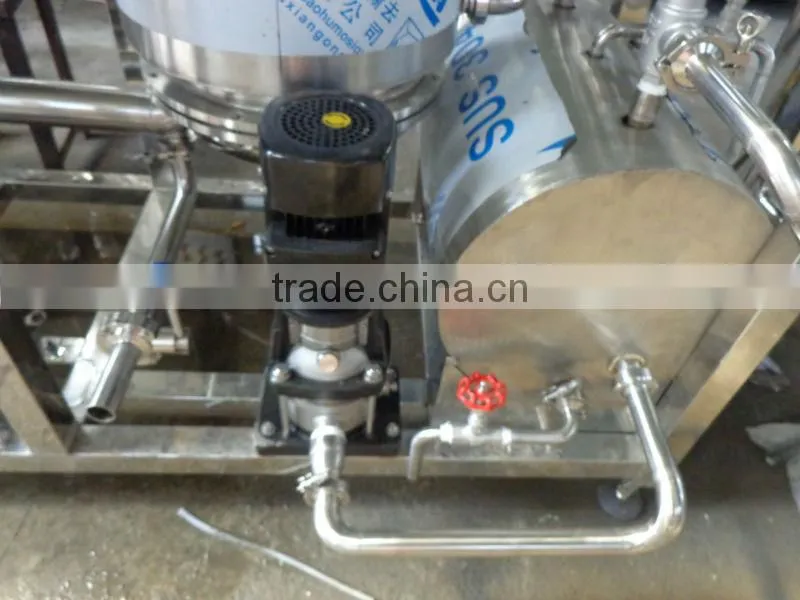

The pictures of chinese herbal medicine equipment:
Chinese herbal medicine equipment
chinese herbal medicine equipment
Chinese herbal medicine equipment
Thanks for your interest aout our chinese herbal medicine equipment !
