Specifications
1. Basket in water.2. Operation part has adopted PLC or touch screen control system, this accords to customer's demand.
| Model | EC10 | EC20 | EC30 | EC50 | EC100 | EC150 | EC200 | EC300 |
| Voltage | 10V | 20V | 30V | 50V | 100V | 150V | 200V | 300V |
| Power | 4.0KW | 4.5KW | 5.5KW | 9KW | 12KW | 14KW | 25KW | 25KW |
| Specifications |
1. Steam extraction part is popular with the structure of basket-in-water 3. This unit is automatically operate. 4. All kinds of plants can be the material of Pure Essential Oil Extractor. |
|||||||
1. Brief instruction of Pure Essential Oil Extractor
Pure Essential Oil Extractor is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.
2. Special Design of Chamomile Pure Essential Oil Extractor
a. Steam extraction part is popular with the structure of basket-in-water Chamomile Pure Essential Oil Extractor.
b. Our Pure Essential Oil Extractor operation part has adopted PLC or touch screen control system, this accords to customer’s demand.
3. Main Technical Datas of Pure Essential Oil Extractor
a. Power: 4.0kw, 380v/50Hz, Three Phase
b. Volume of Distillation Pot: 100L
c. Heating Area of Extraction Tank: 1.45M2
d. Condensing Area of Condenser: 1.25M2
e. Cooling Area of Cooler: 1.20m2
f. Vacuum Pressure for Distillation: 0.3mpa
g. Moisture Extraction Temperature: 50~100c
h. Power Of Electric Heater: 12 kw (Includes Oil Heating System)
i. Cooling From Tap Water
If you have any question about pure essential oil extractor, please contact us freely anytime!
4. Pictures of Pure Essential Oil Extractor

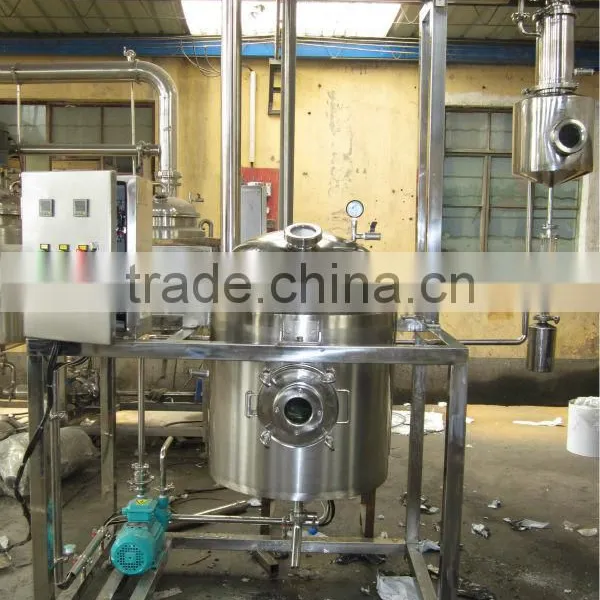

200L Pure Essential Oil Extractor
Temperature Control Cabinet of Pure Essential Oil Extractor
Detail of Pure Essential Oil Distillation Extractor
More detail of Pure Essential Oil Extractor
Oil-water Separator of Pure Essential Oil Extractor
Pure Essential Oil Extractor on Truck
Raw Material of Pure Essential Oil Extractor
All kinds of plants can be the raw material of Pure Essential Oil Extractor
Final Product of Pure Essential Oil Extractor
5. Features of Chamomile Pure Essential Oil Extractor
a. By steam-distillation to reach the extraction of essential oils.
b. Easy operation. One people can operate Pure Essential Oil Extractor easily .
c. High efficiency. Using indirect heating of heat-transfer oil, it can quickly reach 100°C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be more faster.
d. Compact structure. It covers only about 1.5 square meter.
e. Tank wall treated: inside mirror-polished, outside honed.
Any question about Pure Essential Oil Extractor, please contact with us freely!
Thank you for interested in our Pure Essential Oil Extractor!
