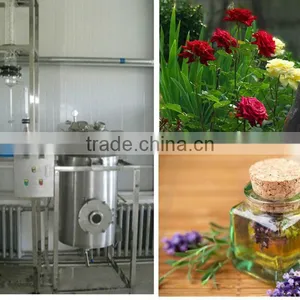

Help Center150L High Quality Chamomile Essential Oil Distillation Machine on Sale
Related Products
-
100L Automatic Tea Tree Essential Oil Making MachineUS$ 13,276 - 13,940MOQ: 1 Set -
100L Automatic Lavender Oil Extraction MachineUS$ 13,276 - 13,940MOQ: 1 Set
-
100L Automatic Orange Essential Oil Extract MachineUS$ 13,276 - 13,940MOQ: 1 Set
-
100L Rose Essential Oil Extraction EquipmentUS$ 13,276 - 13,940MOQ: 1 Set
-
300L Nature Essential Oil Disdtill Equipment on Sale (EC)US$ 19,069 - 20,022MOQ: 1 Set
Specifications
1. Basket in water.2. Operation part has adopted PLC or touch screen control system, this accords to customer's demand.
| Model | EC10 | EC20 | EC30 | EC50 | EC100 | EC150 | EC200 | EC300 |
| Voltage | 10V | 20V | 30V | 50V | 100V | 150V | 200V | 300V |
| Power | 4.0KW | 4.5KW | 5.5KW | 9KW | 12KW | 14KW | 25KW | 25KW |
| Specifications |
1. Steam extraction part is popular with the structure of basket-in-water 3. This unit is automatically operate. 4. All kinds of plants can be the material of Chamomile Essential Oil Distillation Machine . |
|||||||
1. Brief instruction of Chamomile Essential Oil Distillation Machine
Chamomile Essential Oil Distillation Machine is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.
2. Special Design of Chamomile Chamomile Essential Oil Distillation Machine
a. Steam extraction part is popular with the structure of basket-in-water Chamomile Essential Oil Distillation Machine.
b. Our Chamomile Essential Oil Distillation Machine operation part has adopted PLC or touch screen control system, this accords to customer’s demand.
3. Main Technical Datas of Chamomile Essential Oil Distillation Machine
a. Power: 4.0kw, 380v/50Hz, Three Phase
b. Volume of Distillation Pot: 150L
c. Heating Area of Extraction Tank: 1.45M2
d. Condensing Area of Condenser: 1.25M2
e. Cooling Area of Cooler: 1.20m2
f. Vacuum Pressure for Distillation: 0.3mpa
g. Moisture Extraction Temperature: 50~100c
h. Power Of Electric Heater: 4 kw (Includes Oil Heating System)
i. Cooling From Tap Water
4. Pictures of Chamomile Essential Oil Distillation Machine

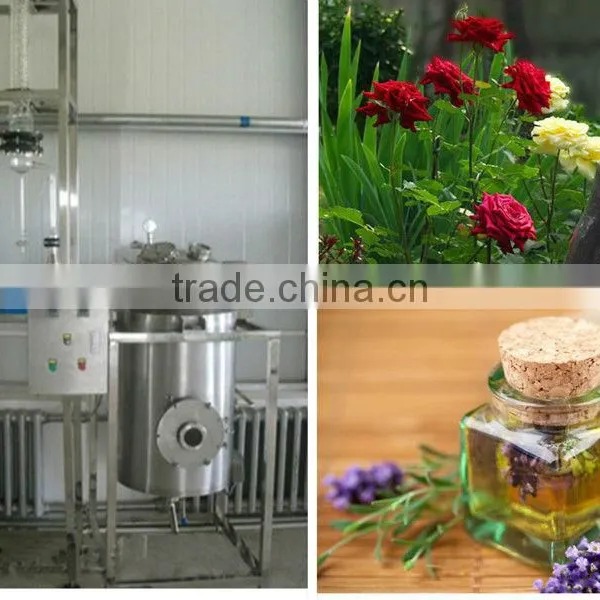

200L Chamomile Essential Oil Distillation Machine
Temperature Control Cabinet of Chamomile Essential Oil Distillation Machine
Detail of Chamomile Essential Oil Distillation Machine
More detail of Chamomile Essential Oil Distillation Machine
Oil-water Separator of Chamomile Essential Oil Distillation Machine
Chamomile Essential Oil Distillation Machine on Truck
Raw Material of Chamomile Essential Oil Distillation Machine
All kinds of plants can be the raw material of Chamomile Essential Oil Distillation Machine
Final Product of Chamomile Essential Oil Distillation Machine
5. Features of Chamomile Essential Oil Distillation Machine
a. By steam-distillation to reach the extraction of essential oils.
b. Easy operation. One people can operate Chamomile Essential Oil Distillation Machine easily .
c. High efficiency. Using indirect heating of heat-transfer oil, it can quickly reach 100°C high temperature under the conditions of cleanness, safety and atmospheric pressure. If required, with vacuum pump, the extraction speed of essential oils will be more faster.
d. Compact structure. It covers only about 1.5 square meter.
e. Tank wall treated: inside mirror-polished, outside honed.
Any question about Chamomile Essential Oil Distillation Machine , please contact with us freely!
Thank you for interested in our Chamomile Essential Oil Distillation Machine !
