Brief Introduction on EC100 Essential Oil Maker
1. Model: EC100 Essential Oil maker
2. Power: 9KW (3 phase, 220v/50Hz)
3. Volume of distillation pot: 100L(according to demand of customers)
4. Heating area of distillation pot: 0.50M2
5. Condensation area of condenser: 0.85M2
6. Power of heater: 17KW
7. Size: 1650x850x1800 (according to demand of customers)
General Introduction on EC100 Essential Oil Maker
This unit essential oil maker is popular in production of Chinese medicines, health products, Biological drugs, cosmetics and food, it use technology of biological and chemical separation, can extract Plant components efficiently by steam distillation, have good effect in collecting essential oil from plants.
Special Design on Essential Oil Maker
1. Steam extraction part is popular with the structure of basket-in-water
2. Operation part has adopted PLC or touch screen control system, this accords to customer’s demand.
Technical details on Essential Oil Maker
| Model | EC20 | EC30 | EC50 |
| Production | 20L | 30L | 50L |
| Power | 5.5kw, 380v/50Hz | 5.5kw, 380v/50Hz | 9kw, 380v/50Hz |
| Vacuum Degree | -0.05~-0.09 | -0.05~-0.09 | -0.05~-0.08 |
| Diameter of Condenser | 102mm | 133mm | 133mm |
| Size | 1200x700x1700mm | 1600x800x1700mm | 1650x850x1800mm |
| Model | EC100 | EC150 | EC200 |
| Production | 100L | 150L | 200L |
| Power | 12kw, 380v/50Hz | 12kw, 380v/50Hz | 12kw, 380v/50Hz |
| Vacuum Degree | -0.05~-0.08 | -0.05~-0.08 | -0.05~-0.08 |
| Diameter of Condenser | 133mm | 133mm | 133mm |
| Size | 1780x850x1900mm | 2000x900x2200mm | 2050x900x2000mm |
Pictures displaying of Essential Oil maker

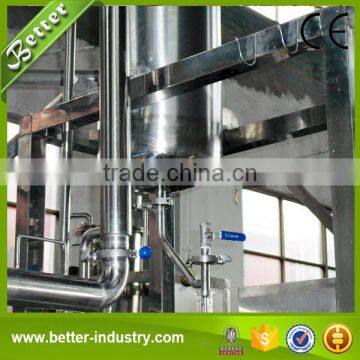

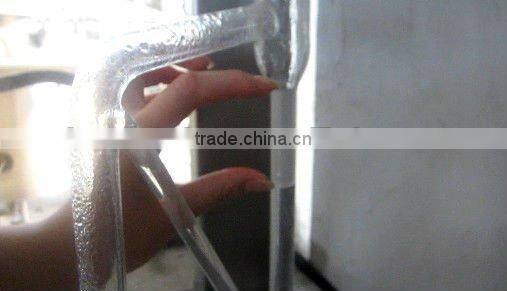

EC100 Essential Oil maker

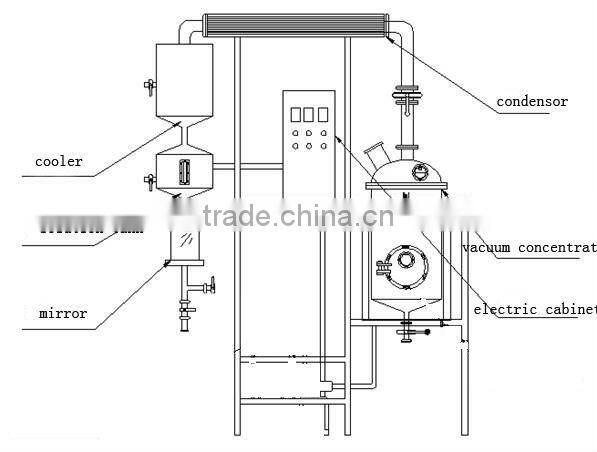

Structure of Essential Oil maker

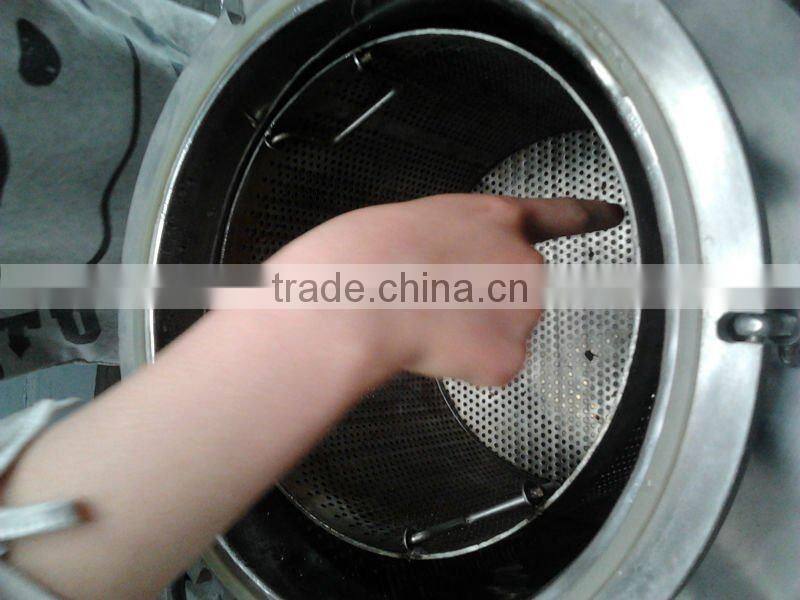

Distillation tank of Essential Oil maker
Raw materails of Essential Oil maker

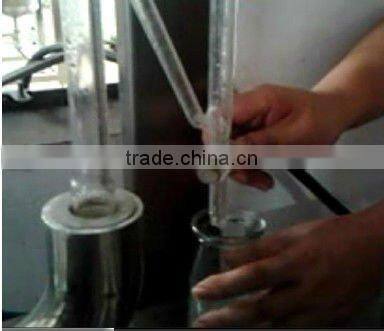

Essential Oil made byEssential Oil maker

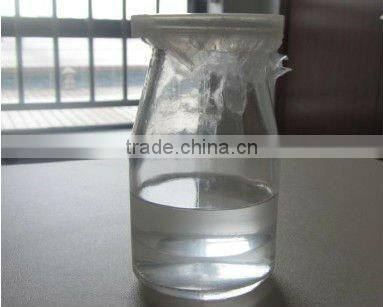

Final products of Essential Oil maker
More details of EC100 Essential Oil maker pls contact with us.
