EC50 Small Manufacturing Cinnamon Oil Steam Distillation Machines
Processing of Cinnamon Oil Steam Distillation
The hot steam helps to release the aromatic molecules from the plant material since the
steam forces open the pockets in which the oils are kept in the plant material. The molecules
of these volatile oils then escape from the plant material and evaporate into the steam.
The temperature of the steam needs to be carefully controlled - just enough to force the plant material to let go of the essential oil, yet not too hot as to burn the plant material or the essentialoil.
The steam which then contains the essential oil, is passed through a cooling system to condensethe steam, which forms a liquid from which the essential oil and water is then separated.
The steam is produced at greater pressure than the atmosphere and therefore boils at above
100degrees Celsius which facilitates the removal of the essential oil from the plant material
at a faster rate and in so doing prevents damage to the oil.
Some oils,like Lavender is heat sensitive (thermolabile) and with this extraction method, the
oil is not damaged and ingredients like linalyl acetate will not decompose to linalool and
acetic acid.
Chracters of Cinnamon Oil Steam Distillation
1.By steam-distillation to reach the extraction of essential oils.
2.Easy operation. One people can operate this Cinnamon Oil Steam Distillation easily .
3.High efficiency. Using indirect heating of heat-transfer oil, it can quickly reach 100C high
temperature under the conditions of cleanness,safety and atmospheric pressure.If required,
with vacuum pump, the extraction speed of essential oils will be more faster.
Main datas of Cinnamon Oil Steam Distillation
model |
EC10 |
EC20 |
EC30 |
EC50 |
EC100 |
EC150 |
EC200 |
EC300 |
distilling pot |
10L |
20L |
30L |
50L |
100L |
150L |
200L |
3000L |
power |
4kw |
4.5kw |
5.5kw |
11kw |
17kw |
19w |
25kw |
30kw |
We can also design according to the your demand.
Raw materials of Cinnamon Oil Steam Distillation
Flowers/Plant |
Lavender/Rose/Lemongrass(Citronella)/wormwood/nutmeg/ myrrh/frankincense |
Fruit |
Orange Peel/Lemon/grapefruit/mandarin |
Trees/Leaves |
Sandalwood/Cypress tree/Pine tree/Eucalyptus leaves/ Camphor tree leaves |
Food |
Black pepper/Ginger/Coriander seeds |
Technical datas of Cinnamon Oil Steam Distillation
1. Power: 11kw, 380v/50Hz, Three Phase
2. Volume of Distillation Pot: 50L
3.Power Of Electric Heater: 11kw
4. Filter Capacity of Pipe: 1200kg/H
5. Cooling From Tap Water
6. Temperature Transfer: PT-100
7. Temperature Control Part: Taiwan LAHO
8. Material: SUS304 2B 0Cr18Ni9Ti
9. Size:1650x850x1800(According To customer’s demand)
Pictures of Cinnamon Oil Steam Distillation

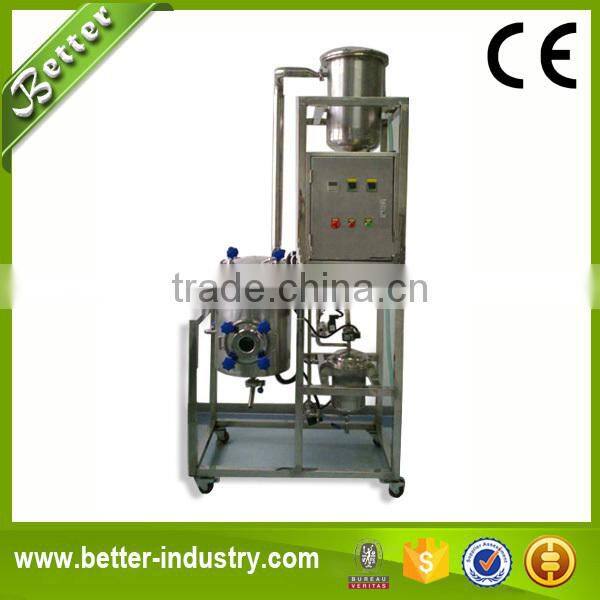

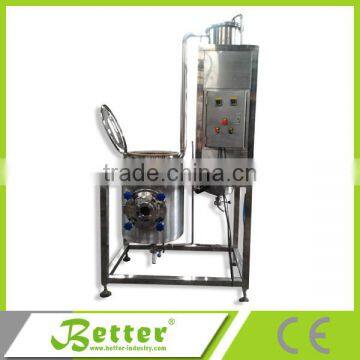

Machine for Cinnamon Oil Steam Distillation
Machine for Cinnamon Oil Steam Distillation
Raw material of Cinnamon Oil Steam Distillation
Other material of Cinnamon Oil Steam Distillation we can extract

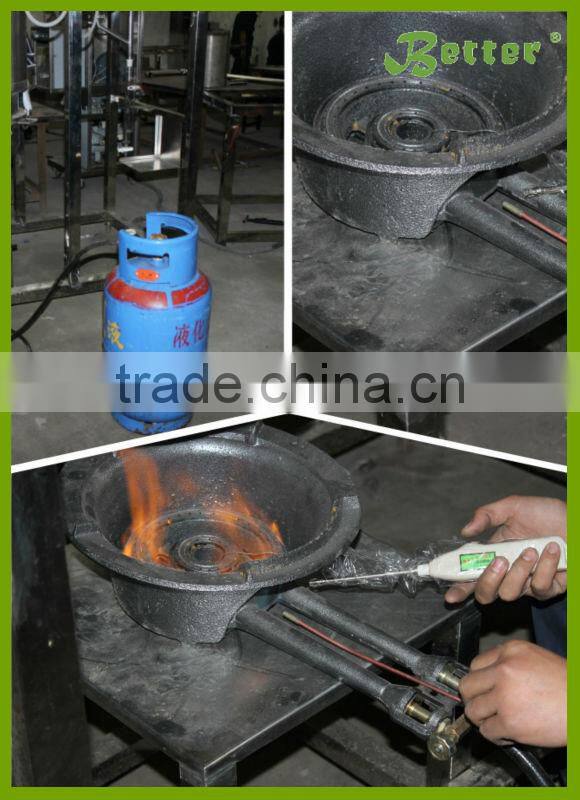

Gas Heating Type of Cinnamon Oil Steam Distillation

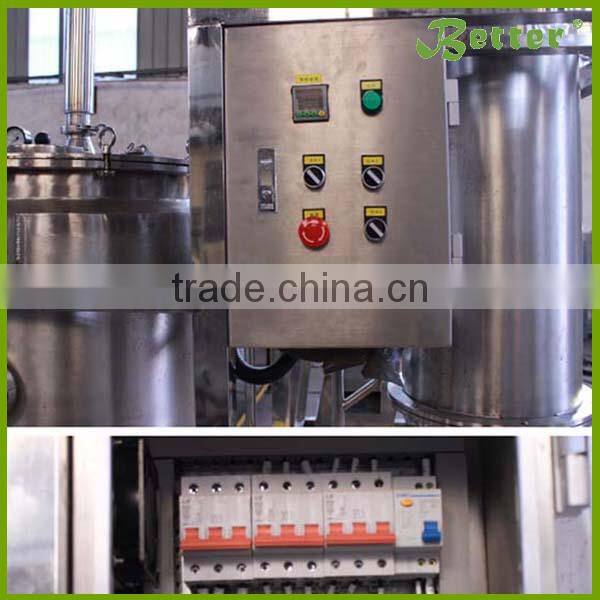

Electric Heating TypeTemperature control panel of Cinnamon Oil Steam Distillation
Oil-water seperator of Cinnamon Oil Steam Distillation
Final products of Cinnamon Oil Steam Distillation
Packaging: Plywood Case
Shipping: 30 days after payment received
Quality guarantee:12 months after shipment. During 12 months, any problem not caused by wrong operation, we will provide spare parts for free to fix. 2 years spare parts available.
One year after shipment excluding the wearing and tearing parts.
Installation: We will assemble and test the machine before packing. Also send English manual. If customer need, we will send one engineer and one translator for assembling and training of workers. USD80 per person per day, food, accommodation and air-ticket will be on clients.
Why Choose BETTER?
1.We are Alibaba Assessed 5 years Gold Supplier.
2.We are a factory manufacturing Cinnamon Oil Steam Distillation , best production capability, best quality control, best Service.
3.Inspected by the Inspection Institution of Bureau Veritas Certification.
4.100% QC inspection Before Shippment.
5. CE listed,competitve price.
To be better and better, your satisfaction will be our motivation and direction!
What does BETTER need from me to quote a price?
1.Raw material
2.Production capacity per batch
What is the oil yield?
The oil yield depends on oil content of your material.If the oil content of your material is high,you can get more essential oil.
Can I use the machine to extract several kinds of raw materials?
Yes,of course.
Can I do extraction test with my own raw material?
Yes,of course.We can do extraction test and send you videos and test report for your
Reference.
What heating way does your machine support?
Electricity/gas/wood/steam heating.
What is your material of your machine?
Stainless steel(Standard type is SUS304,it can be customized according to your request)
How long does it take to produce the machine once I place my order ?
Usually the delivery time is 30 working days after prepayment received.
What is the minimum quantity I must order?
We don’t technically have minimums, but if you order more than 3 sets once,we can give you
a discount.
Do you have machines in stock?
No,our machine is produced according to your request.
How will my order be packed, can you provide the installation service?
Packed in plywood case.
We will send English manual. If customer need, we will send one engineer for assembling and training for workers. USD80 per person per day, food, accommodation and air-ticket will be on clients.
Thank you for interesting in our Cinnamon Oil Steam Distillation!
