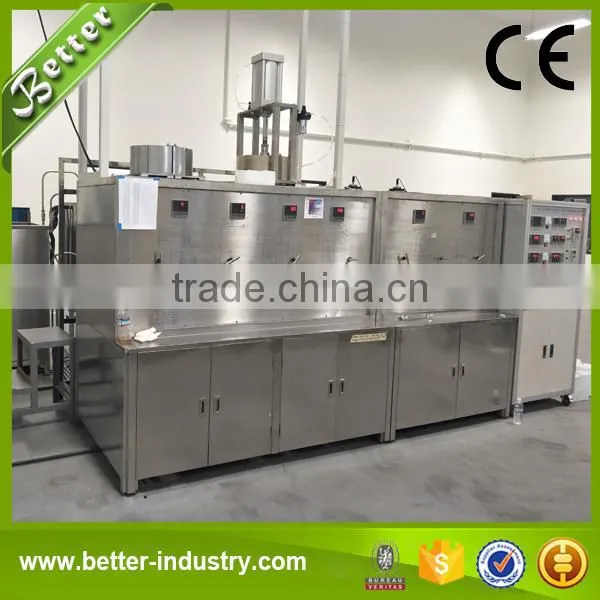

Hemp Oil Supercritical CO2 Extraction Machine

Shanghai Better Industry Co., Ltd.
Hemp Oil Supercritical CO2 Extraction Machine thumbnail-1
Hemp Oil Supercritical CO2 Extraction Machine thumbnail-2
Hemp Oil Supercritical CO2 Extraction Machine thumbnail-3
Hemp Oil Supercritical CO2 Extraction Machine thumbnail-4
Hemp Oil Supercritical CO2 Extraction Machine thumbnail-5
Hemp Oil Supercritical CO2 Extraction Machine photo-1
Hemp Oil Supercritical CO2 Extraction Machine photo-2
Hemp Oil Supercritical CO2 Extraction Machine photo-3
Hemp Oil Supercritical CO2 Extraction Machine photo-4
Hemp Oil Supercritical CO2 Extraction Machine photo-5
US$ 32,000 - 65,000 MOQ: 1 Square Centimeter
Key Specifications
Get Latest Price
Type:
Other, Hemp Oil Supercritical CO2 Extraction Machine
Form:
Oil
Part:
Seed
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Hemp Oil Supercritical CO2 Extraction Machine
Form Oil
Part Seed
Extraction Type Other, Supercritical CO2 Extraction
Packaging Other, Wooden case
Place of Origin Shanghai, China
Grade AAAAA
Brand Name BETTER
Model Number SPE5 Hemp Oil Supercritical CO2 Extraction Machine
Product Description

Introduction

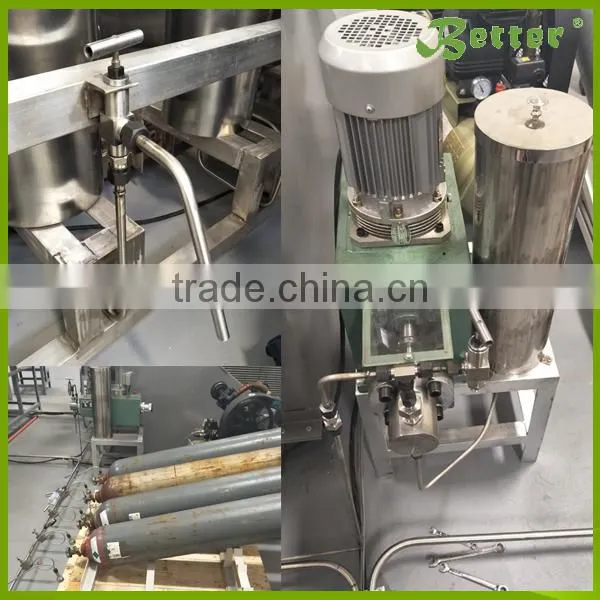

The device is used for the extraction of material (solid or liquid)under high pressure and suitable temperature extraction.Changing conditions in the separation kettle, the dissolved substances will resolve in order to achieve the purpose of separation.Supercritical CO2 extraction equipment includes several parts: extraction kettle, separation kettle,commingle, CO2 high-pressure pump, entrainer pump, refrigeration system, heat exchange system, CO2 storage tank, CO2 level gauge,purification system, flow meter, temperature control system, safety protection system etc.The supercritical CO2 extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with high boiling point.Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products, foodstuff and medicines.

SPECIFICATIONS
No.
Model
Capacity
Pressure
(Mpa)
Temperature
(℃)
Power
(KW)
CO2 Pump Flow(L/H)
Dimension
(mm)
1
SPE0.5
0.5L*1


50









85
10
50
2500*2500*1600
2
SPE1
1L*1
10
50
2500*2500*1600
3
SPE5
5L*1
18
50
2500*2500*1600
4
SPE10
10L*1
5L*2







40
18
100
3000*2500*1600
5
SPE20
10L*2
25
200
3000*3000*1800
6
SPE30
10L*3
30
210
5000*4800*1800
7
SPE48
24L*2
45
400
5000*5000*4200
8
SPE96
24L*4
58
600
5800*5000*4200
9
SPE100
50L*2
60
800
6200*6000*4500
10
SPE120
30L*4
60
800
6800*6000*4500
11
SPE150
50L*3
63
1000
7200*6000*4500
12
SPE200
50L*4
65
1000
7800*7000*4500
For capacity above 200L, will be custom made.

Main Features

1) Intermittent or continuous work，co-solvent can be added if request

2) CO2 can be recovered and reused;
3) Pressure and temperature can be designed according to demand.
4) Can custom made into PLC or computer control
Application
APPLICATION
TYPE OF DESXRIPTION
Agriculture Food
Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
Pharmaceutical
Extraction of active components, preparation of natual products, viamins.
Cosmetic
Extraction of fragrances and oils.
Laundry
Dry cleaning of garments.
Mechanical
Degreasing parts, precision cleaning of high-value componets.
A wide range of industries for the extraction of natural products for the food additives(such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc.), drugs(such as artemisia annua vegerarian, magnolia, angelia, etc.), health care(such as sea buckthorn, samara, pomegranate, lycopene, etc.)
Flow Chart

CO2------Extraction kettle------Separation I------Separation II------Return circuit

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2500(L) * 2500 (W) * 1600 (D) mm
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Related Products

CO2 Extraction Machine

96.8% Response Rate

Essential Oil Extraction Machine

93.6% Response Rate

Solvent Extraction Machine

94.9% Response Rate

FAQ

1.What does BETTER need from me to quote a price?

a).Raw material
b).Production capacity per batch,we supply 0.5L~200L machine for you,big capacity of machine can be customized according to your request for your request.

2.What material can you process with this machine?
Our CO2 extract machine is widely used in extracting hemp oil, wheat embryo oil,fish oil,tobacco essential oil,Arteannuin,Sundrops oil,Gingerol,Pepper haematochrome,Hops extract, Agarwood oil etc.

3.What is the machine material you use?
Stainless steel.

4.What is the highest pressure does your machine can suffer?
50Mpa.Our standard design is 40Mpa..

5.Does the CO2 can be reused?
YES. CO2 can be used in circulation.

6.Does you machine can work under the conditions of supercritical and subcritical?
No,it can only work at supercritical state.

7.Can we do extraction test before purchasing?
Of course,we can do extraction test with your raw material and send you videos and pictures
for your reference.

8.Do you have machine in stock?
No,every machine is customized according to your order.

9.How long does it take to produce the machine once I place my order ?
The Supercritical CO2 extract machine’ process flow is complex.Generally it takes about 60 workdays to Produce.We are responsible for the quality of machine our customers.Every procedure and details has to be inspected strictly.

10.How will my order be packed, can you provide the installation service?
Plywood case. And we will assemble and test the machine before packing.
Installation:We will send English manual after your purchase. If customer need, we will send one engineer for assembling and training for workers. USD100 per person per day, food, accommodation and air-ticket will be on clients.
