Brief introduction of Extraction equipment
This device extraction and separation of pressure and temperature are using the computer automatic control,computer remote monitoring of the various parameters.This device clamp was adopted as extraction boo boo cover hydraulic quick-opening structure.This device extraction kettle with safety valve,pressure transmitter control lock,electric contact pressure gauge triple security protection,safe and reliable work.
A. The main technical parameters of Extraction equipment
1.The voltage: 240V,60HZ
2.The maximum power: about 16KW
3.The maximum extraction pressure: 40MPa
4.The extraction temperature: room temperature~ 80 ℃
5.The extraction kettle volume:single reactor volume:5L
B. The main configuration device of Extraction equipment
1.The air source part
CO2 gas cylinders (provided by customer), the cylinder pressure generally remain at more than 5 mpa, CO2 purity of 99.99% or higher
2.Power supply part
CO2 high-pressure plunger pump:one set
power 2.2 kw, maximum flow is 50L/h, maximum working pressure of 40 mpa.
Carrying agent pump: the maximum flow 10L/h, maximum working pressure of 40 mpa.
3.Purifying filtration system
16 mpa design pressure, volume 1L, the quantity is 1 only, built-in silica gel or other used to filter material, have the effect of filtering, can be put into use in parallel.
4.Separate kettle
Two sets of separate kettle to 2 liters, the highest working pressure are 20 mpa, entrance to be close to the bottom, intubation set heating jacket and insulation kettle in vitro, maximum separation temperature up to 80 ℃.
5.Preheater: the highest working pressure of 40 mpa, the maximum operating temperature 80 ℃, preheater under constant temperature water bath, the water tank with insulation layer, and is equipped with stainless steel decorative layer. Preheater with constant temperature water bath as a whole, reduce the water hot water transmission, and make corresponding preheater with every body temperature more step convergence, more compact structure.

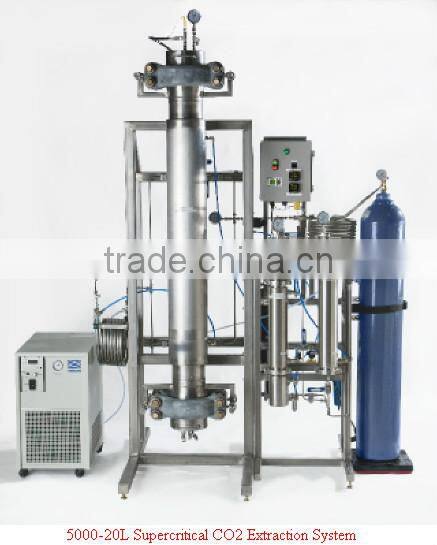

More pictures of Extraction equipment for reference
5L product of Extraction equipment

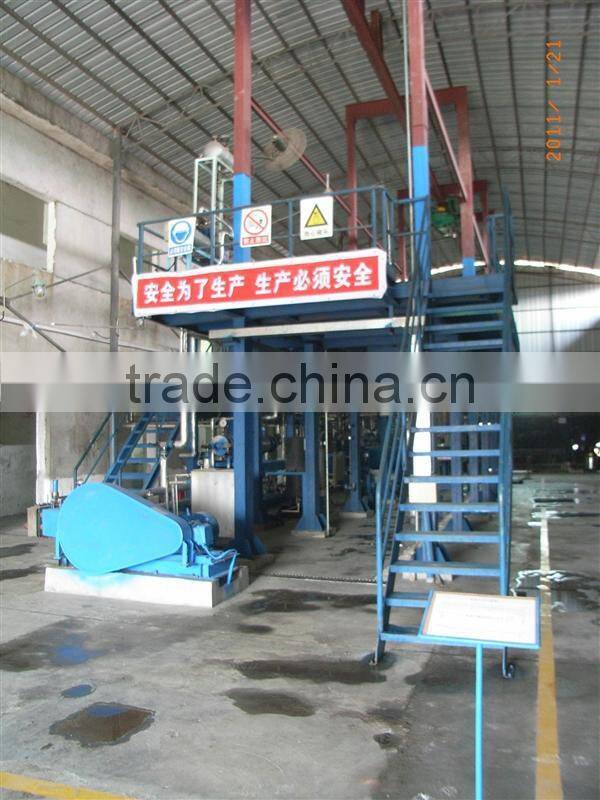

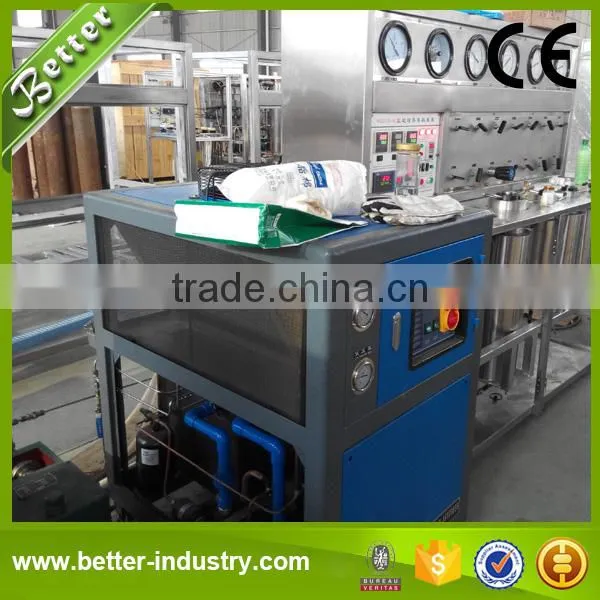

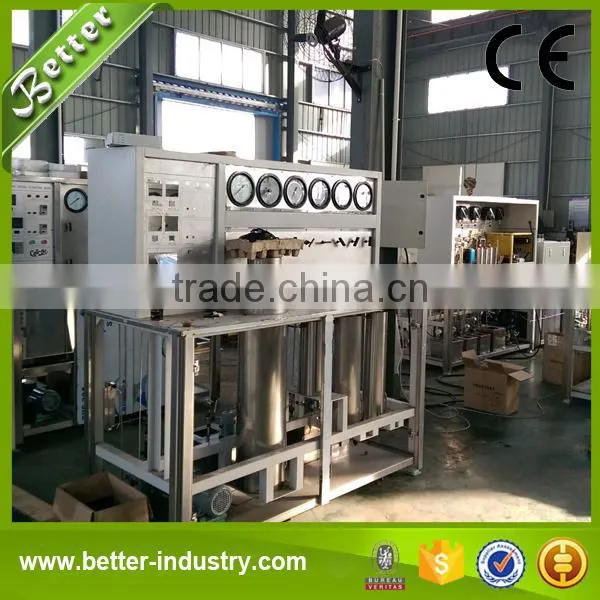

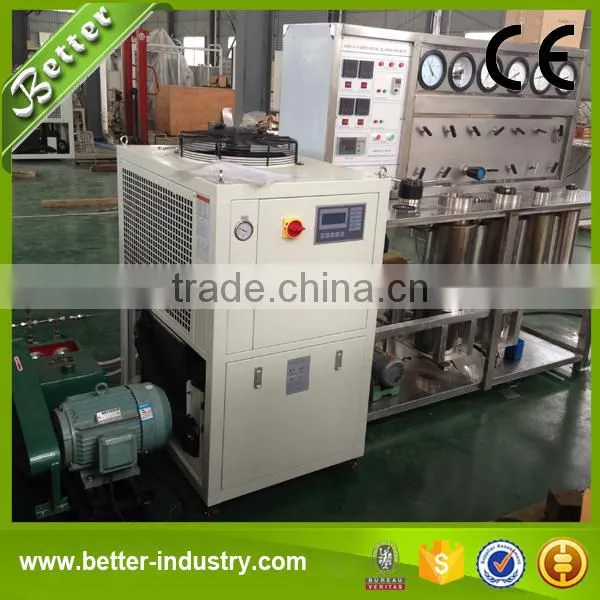

Equipments of Extraction equipment

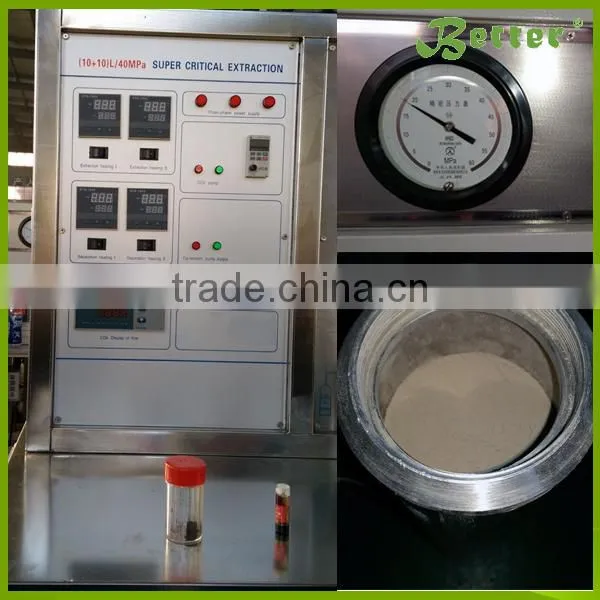

Raw material of 5L product of Extraction equipment
More details of Extraction equipment :
Payment Term:
If the total amount below $5000, it should be 100% prepayment.
If the total amount above $5000, it should be 50% prepayment; the balance paid before loading.
Delivery Time:
50 working days after prepayment received
Quality guarantee:
One year after shipment excluding the wearing and tearing parts.
If you are interested in our product of Extraction equipment,please contact us and we are pleased to serve you well.
